Overview
Basic Info.
Rolling Shape
Plank, Tegular, Ribbon, Bar, Pipe, Wire
Product
Profile, Rolling Beam, Steel Billet, Cogged Ingot
Roller Position
Special Form
Video Outgoing-Inspection
Provided
Suitable Excavator(Ton)
15-25 Ton Excavator
Core Components
Hydraulic Cylinder, Hardox Steel Blade
Transport Package
Standard Export Fumigated Wooden Case
Specification
Fits 15-25 ton excavators, Max shearing force 800k
Production Capacity
120 Units/Year
Product Description

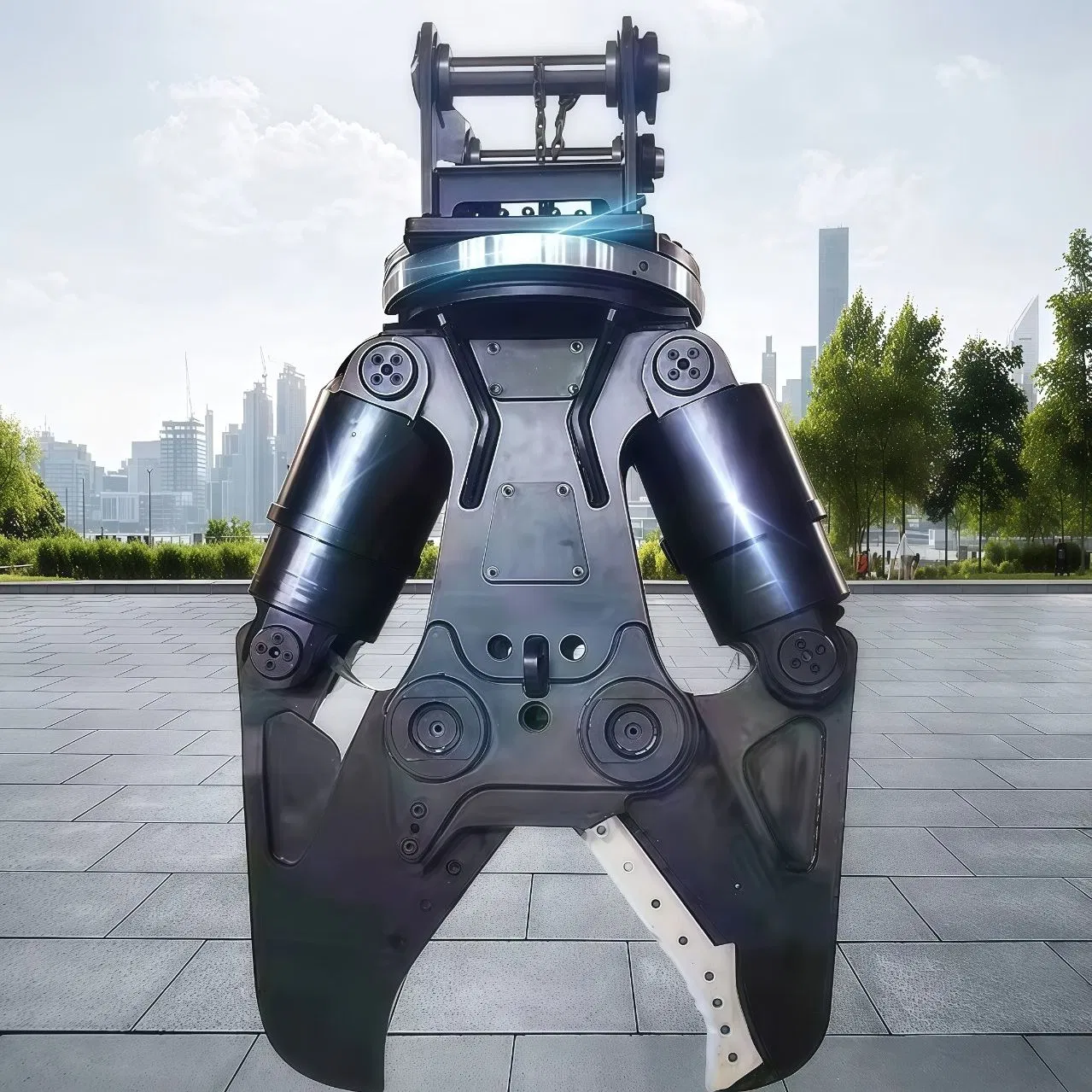

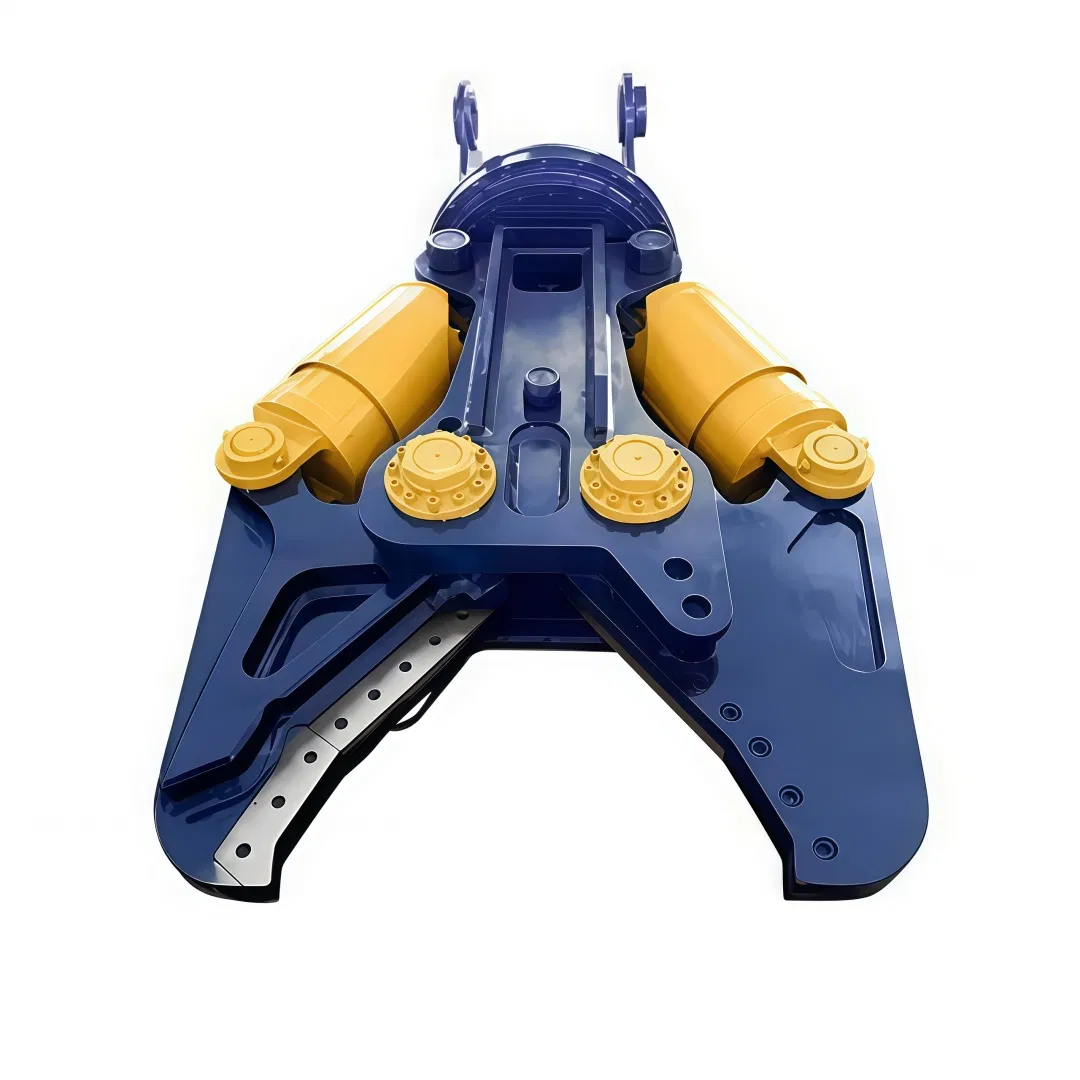

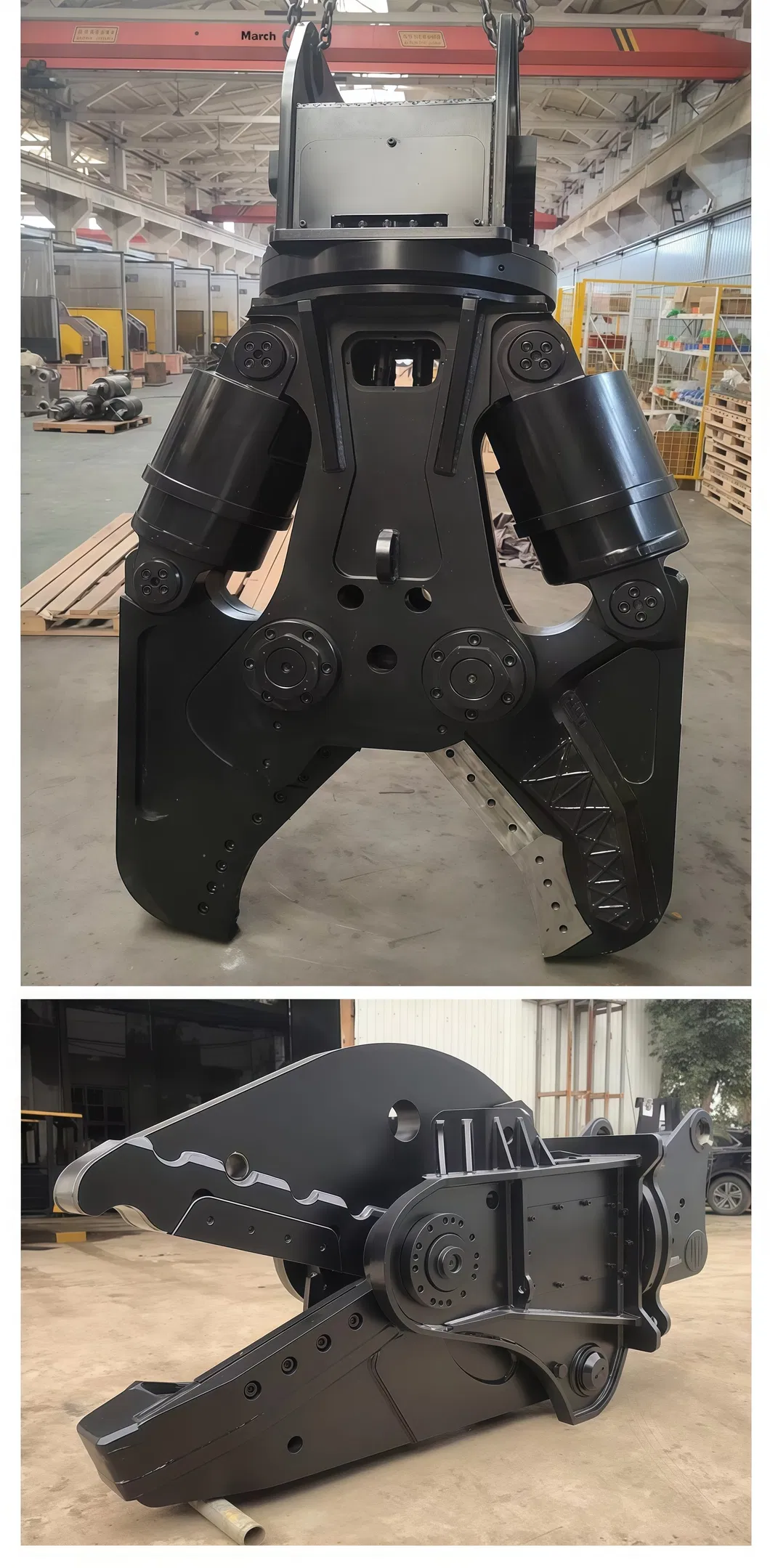

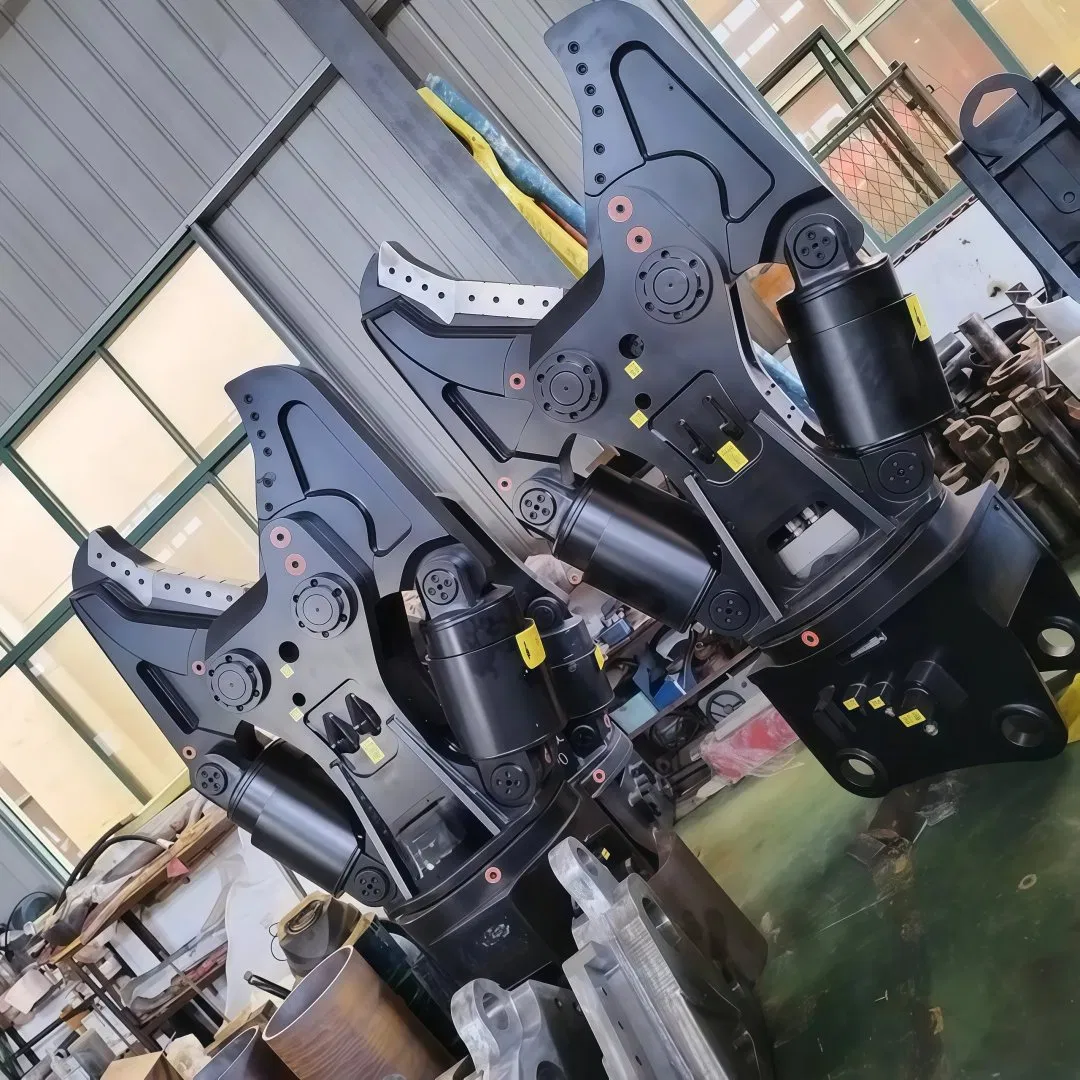

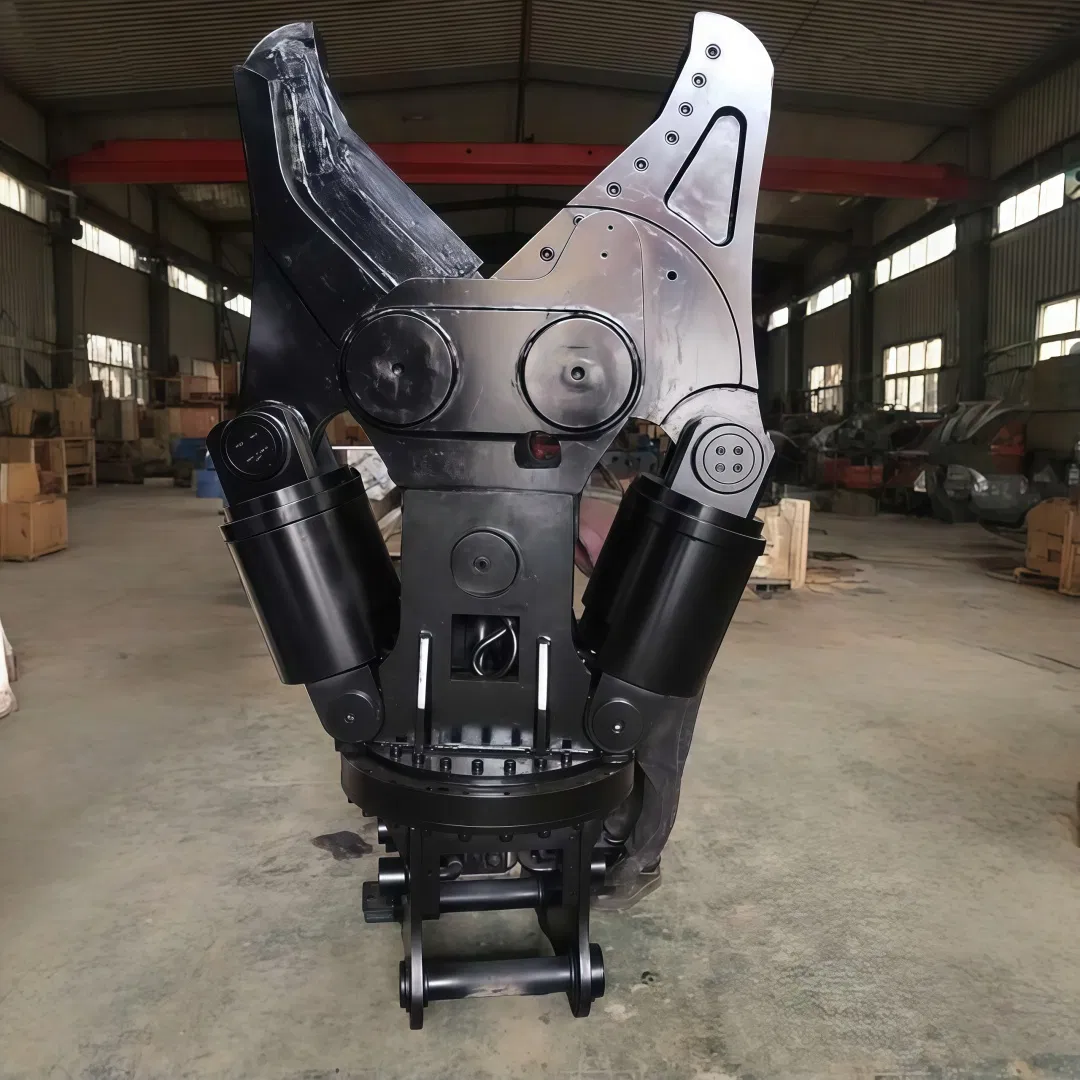

TS-DS15 Heavy Duty Hydraulic Demolition Shear for Excavator
The hydraulic demolition shear is a high-performance excavator attachment specially designed for scrap metal recycling, building demolition and steel structure dismantling projects. It can be installed on standard excavators to replace traditional manual cutting and blasting operations, greatly improving construction efficiency while reducing labor costs and safety risks.

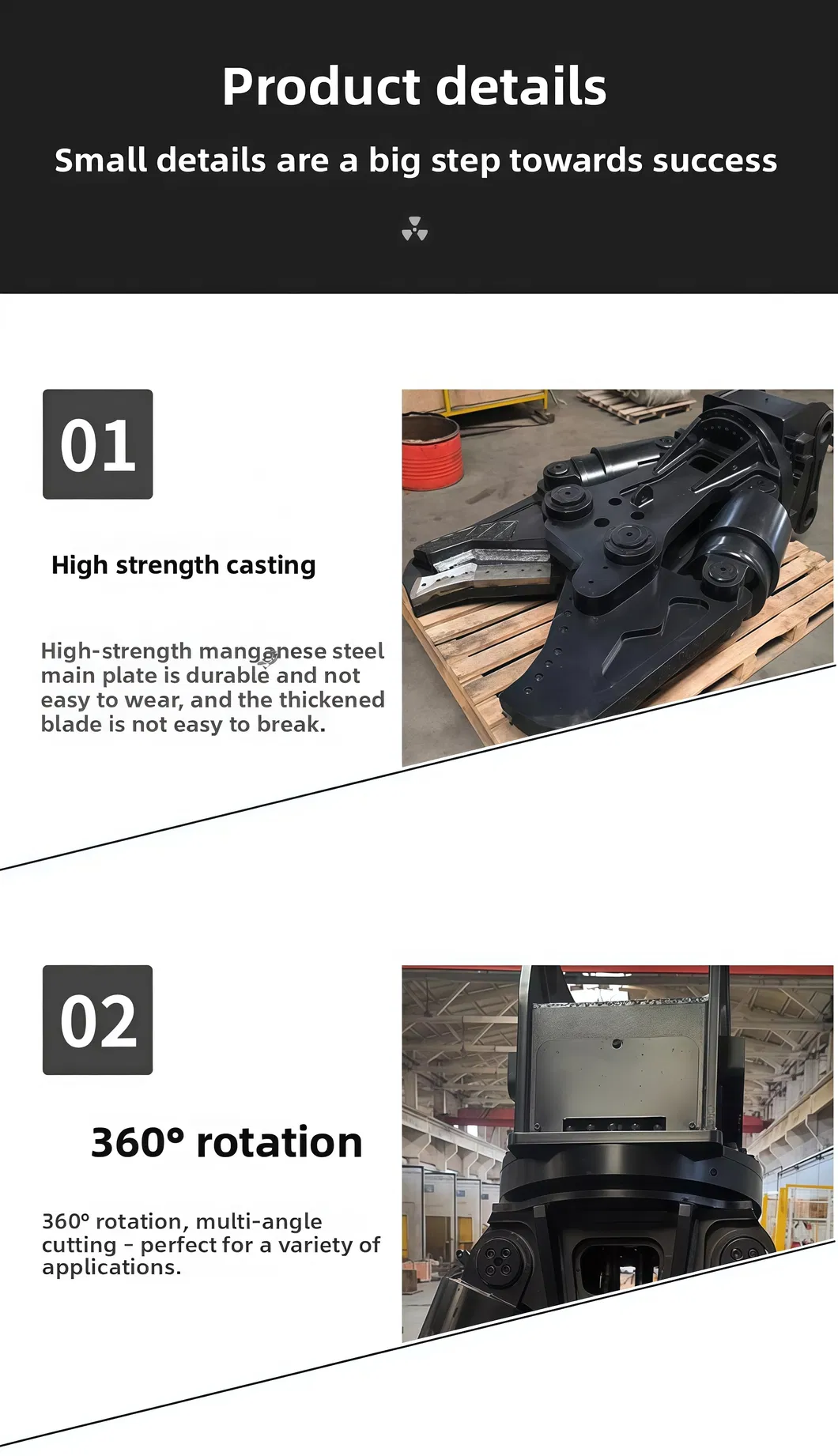

Core Product Advantages
-
Super Strong Shearing Force

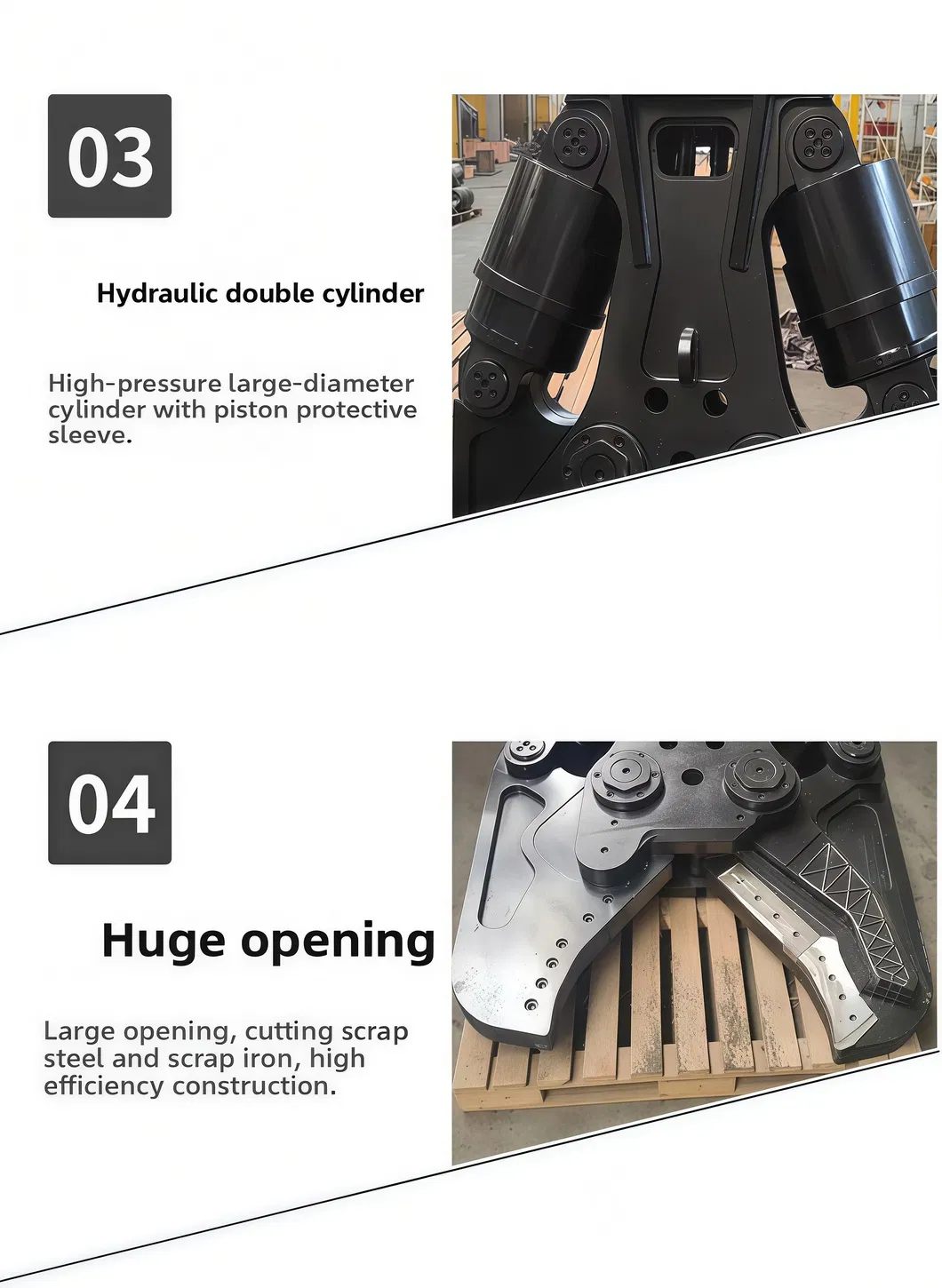

Adopts double-cylinder hydraulic structure with maximum shearing force up to 800kN. It can easily cut thick steel plates, I-beams, rebar, scrap vehicles and various steel structures, with flat and burr-free cutting section.
-
360° Hydraulic Rotation
Equipped with high-torque hydraulic rotary motor, it supports 360-degree omnidirectional flexible rotation. Operators can freely adjust the cutting angle without moving the excavator, improving work efficiency by more than 40%.
-
Ultra Durable Cutting Blade
The blade is made of imported Swedish wear-resistant alloy steel, with high hardness and strong impact resistance. It adopts a reversible double-sided design, which can be used on both sides to reduce later maintenance costs.
-

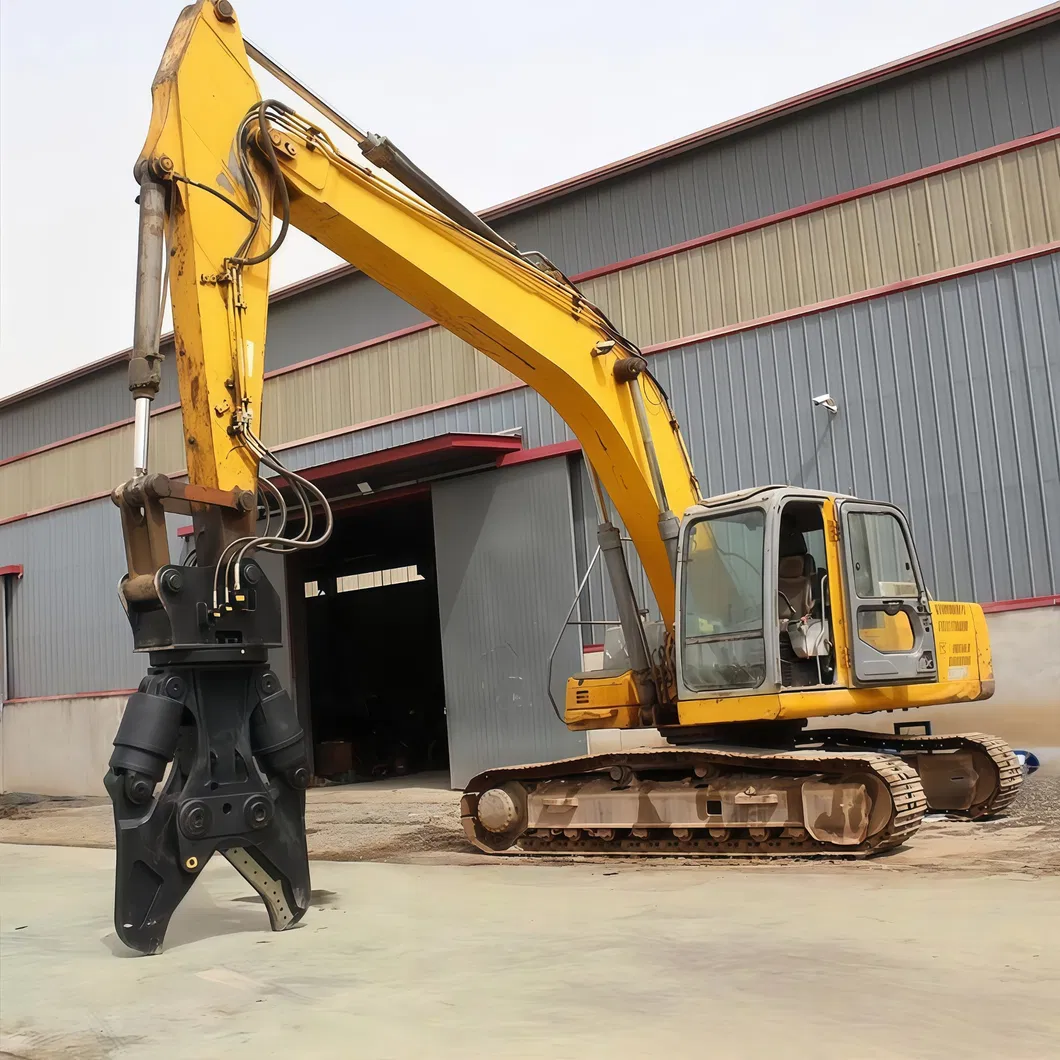

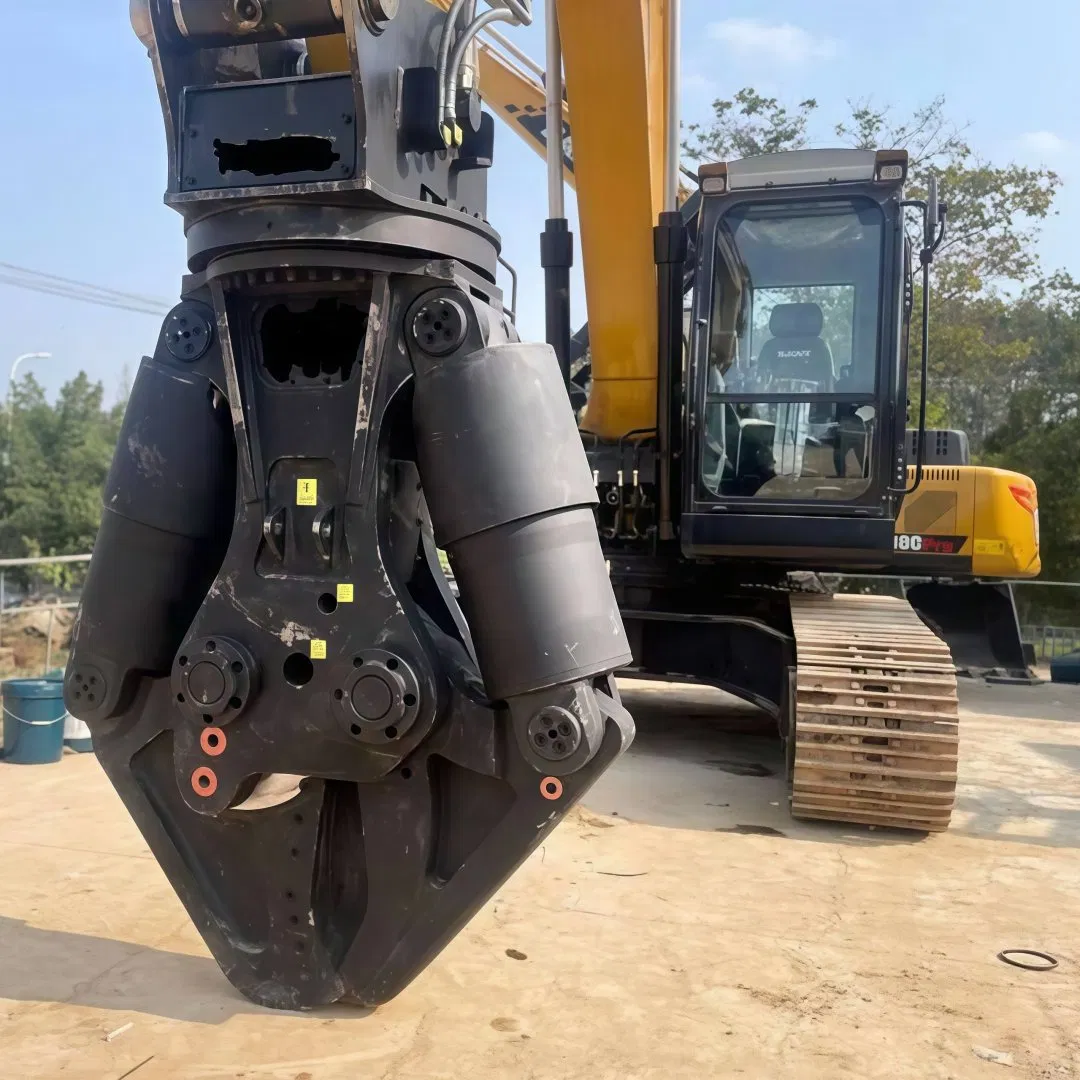

Fast Installation & Wide Compatibility

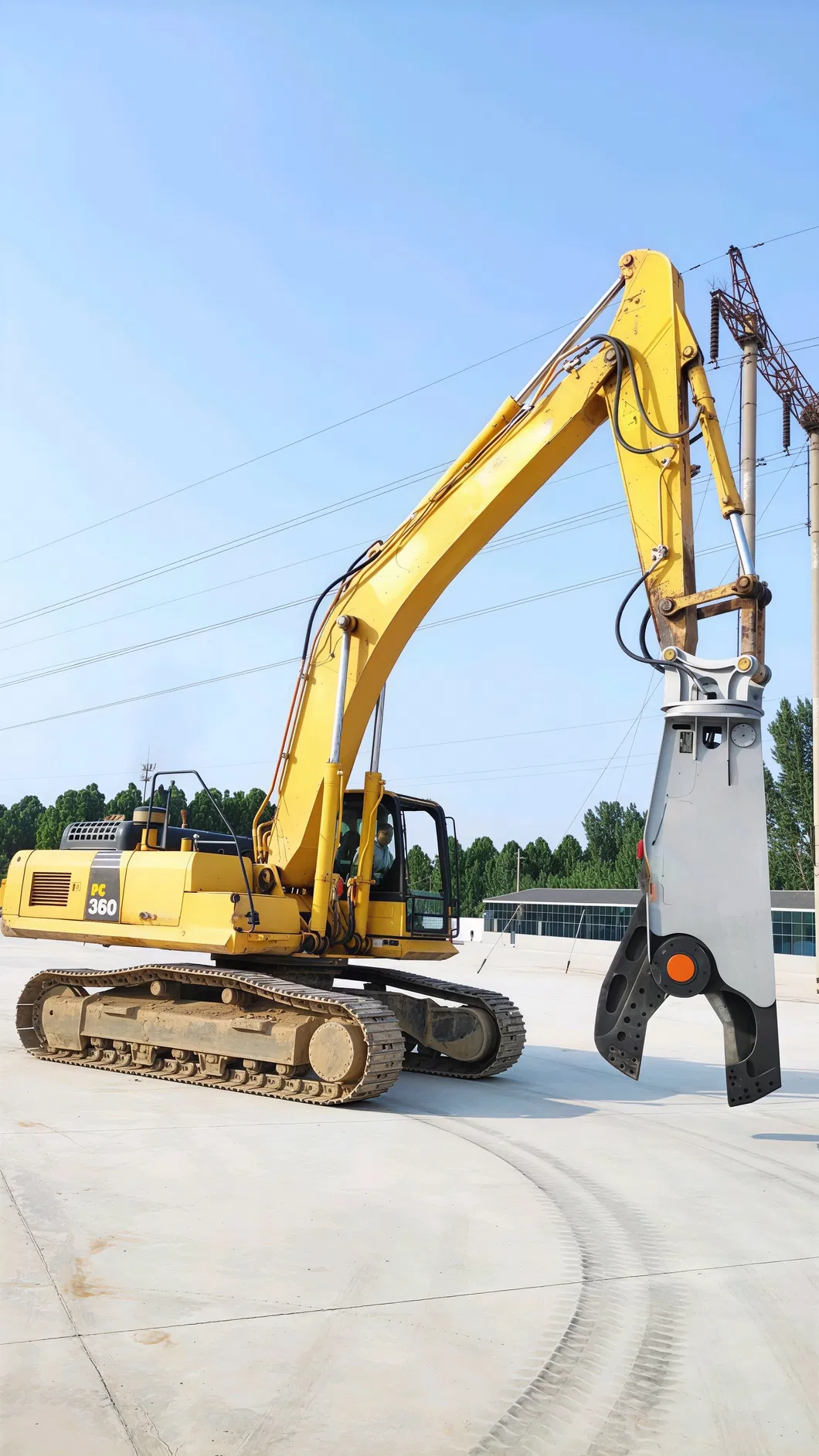

It can be quickly installed on 15-25 ton standard excavators through a quick coupler, no modification to the excavator is required. We also provide models suitable for 8-30 ton excavators of all mainstream brands.
-
Safe & Low-noise Operation
Fully hydraulic drive, no spark, no dust and low noise during operation. It can work normally in urban areas, residential areas and places with strict environmental protection requirements, and no blasting approval is required.
Detailed Technical Parameters
| Parameter Item |
Specification |
| Model | TS-DS15 |
| Suitable Excavator | 15-25 Ton |
| Maximum Shearing Force | 800 kN |
| Rotation Mode | 360° Hydraulic Rotation |
| Blade Material | 450 Wear-resistant Steel |
| Overall Weight | 1200 kg |
| Working Pressure | 28-32 MPa |
| Max Cutting Thickness (Steel Plate) | 30 mm |
| Jaw Opening Width | 650 mm |
| Installation Method | Quick Coupler Connection |

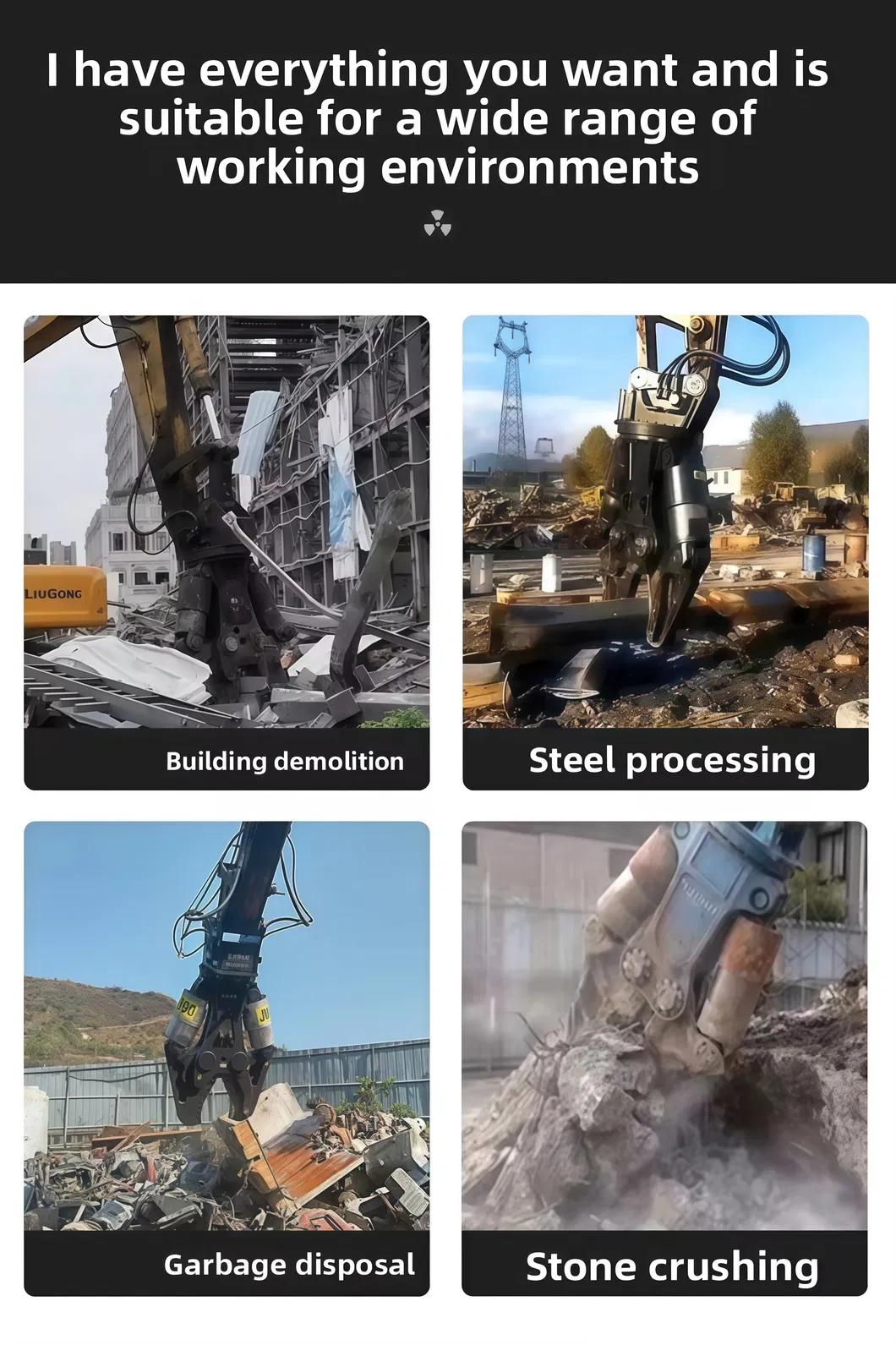

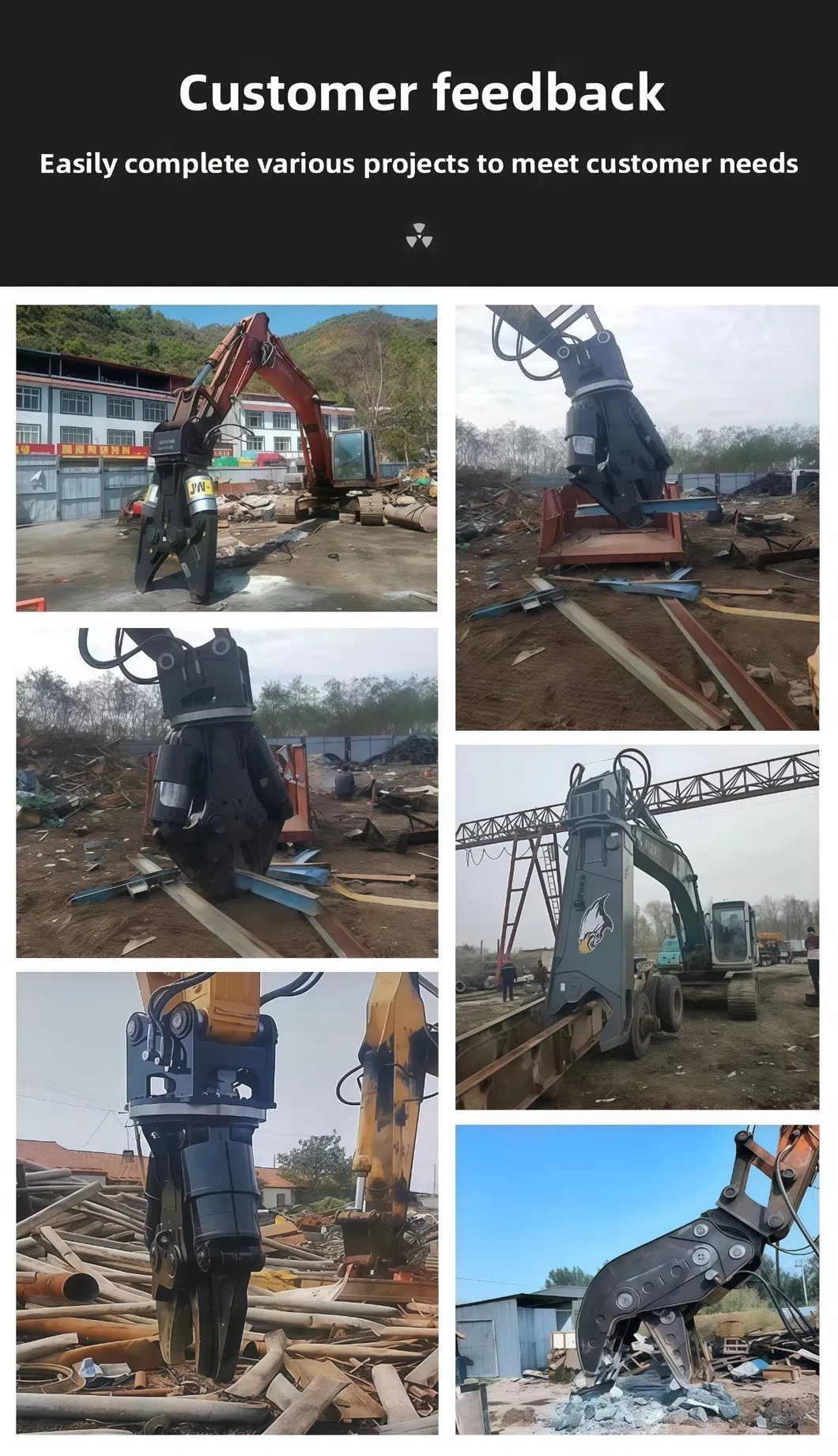

Wide Application Scenarios
- Scrap metal recycling yards: cutting scrap steel, waste vehicles, metal frames
- Building demolition: dismantling steel structure buildings, reinforced concrete
- Ship breaking: cutting waste ship hulls and steel parts
- Steel structure engineering: cutting and shaping steel components
- Municipal engineering: dismantling old bridges, guardrails and steel facilities
After-sales Service & Warranty
- 12 months warranty for core hydraulic components and blades
- Free English operation manual, installation video and maintenance guide
- 24-hour online technical support from professional engineers
- Factory direct supply of all wearing parts and accessories at favorable prices
- Customized services available for special tonnage and working conditions
Frequently Asked Questions
What size excavator is this hydraulic shear suitable for?
This standard model is ideally suited for 15 to 25-ton standard excavators. We also offer compatible variants that can accommodate mainstream excavator brands ranging from 8 to 30 tons.
What is the maximum thickness of steel plate it can cut?
The shear features a maximum shearing force of 800 kN, enabling it to cleanly cut through steel plates with a maximum thickness of up to 30 mm.
How durable are the cutting blades and can they be serviced?
The cutting blades are manufactured from high-grade imported wear-resistant alloy steel. They feature a reversible double-sided design, allowing you to use both sides before replacement, which significantly reduces overall maintenance costs.
Does installing this attachment require modification to the excavator?
No modifications are necessary. The attachment is designed for quick and seamless installation via standard quick coupler connection systems.
Can this attachment be used for demolition projects in urban residential areas?
Yes, absolutely. Because it is fully hydraulically driven, it operates with exceptionally low noise, produces no sparks, and generates minimal dust, making it perfectly compliant with strict environmental guidelines for urban worksites.
