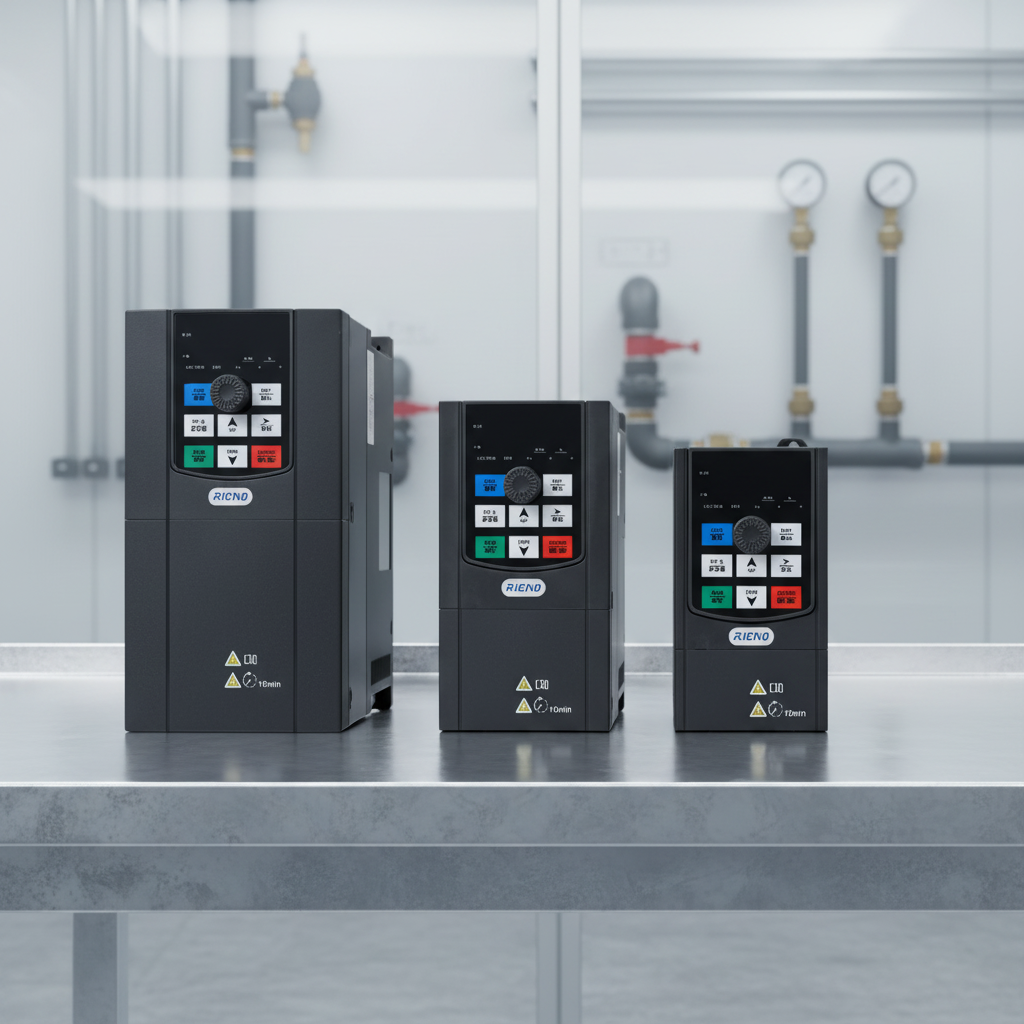

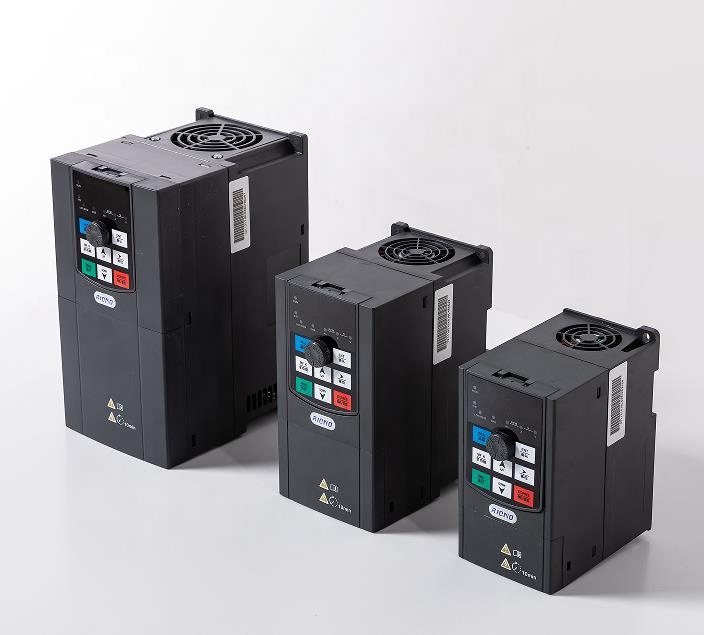

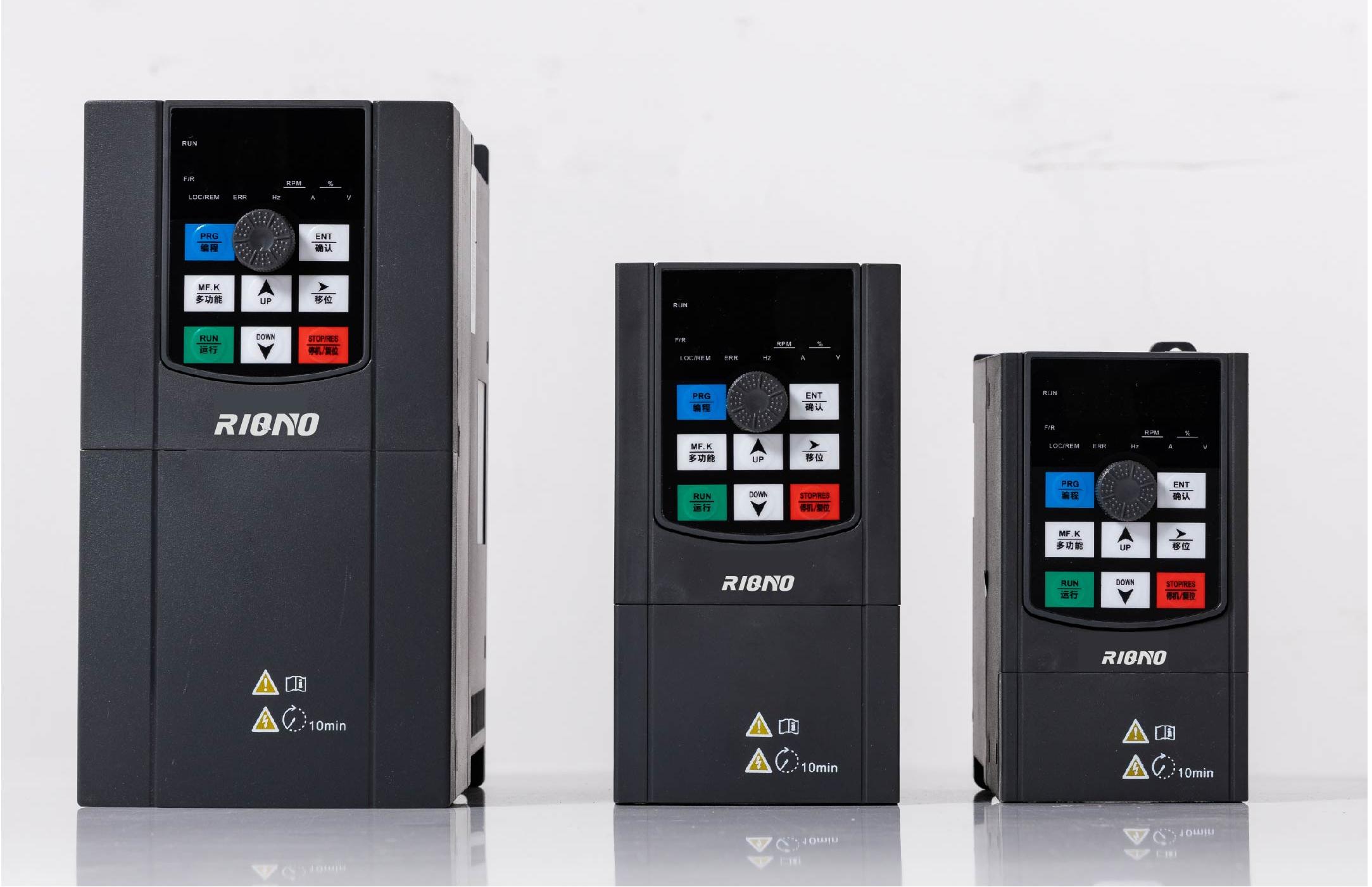

| No | Model No. | Motor Power (kw) | Rated Current (A) | Outline Dimensions (H*W*D) (mm) | Package Dimensions (H*W*D) (mm) | Gross Weight (KG) |
|---|---|---|---|---|---|---|
| 220V 1-phase input & 3-phase output （Voltage Range: -15% 220V~220V+15%） | ||||||
| 1 | A100-0R4G-S2 | 0.4 | 2.3 | 175*85*140 | 210*130*180 | 1.1 |
| 2 | A100-0R75G-S2 | 0.75 | 4A | 175*85*140 | 210*130*180 | 1.2 |
| 3 | A100-1R5G-S2 | 1.5 | 7.5A | 175*85*140 | 210*130*180 | 1.3 |
| 4 | A100-2R2G-S2 | 2.2 | 9.6A | 175*85*140 | 210*130*180 | 1.5 |
| 5 | A100-4R0G-S2 | 4.0 | 17A | 245*125*170 | 280*200*235 | 2.8 |
| 6 | A100-5R5G-S2 | 5.5 | 24A | 245*125*170 | 280*200*235 | 3.0 |
| 380V 3-phase input & 3-phase output （Voltage Range: -15% 380V~380V+15%） | ||||||
| 1 | A100-0R7G -T4 | 0.75 | 2.4A | 170*85*140 | 210*130*180 | 1.2 |
| 2 | A100-1R5G -T4 | 1.5 | 4.2A | 170*85*140 | 210*130*180 | 1.3 |
| 3 | A100-2R2G -T4 | 2.2 | 5.8A | 170*85*140 | 210*130*180 | 1.5 |
| 4 | A100-4R0G-T4 | 4.0 | 10A | 97*195*145 | 150*235*210 | 2 |
| 5 | A100-5R5G-T4 | 5.5 | 13A | 97*195*145 | 150*235*210 | 2.2 |
| 6 | A100-7R5G-T4 | 7.5 | 17A | 125*232*170 | 210*290*240 | 3.2 |
| 7 | A100-11RG-T4 | 11 | 25A | 125*232*170 | 210*290*240 | 3.4 |
| 8 | A100-15RG-T4 | 15 | 32A | 310*165*194 | / | - |
| 9 | A100-18RG-T4 | 18.5 | 37A | 310*165*194 | / | - |
| 10 | A100-22RG-T4 | 22 | 45A | 310*165*194 | / | - |
| Item | Specification | |
| Input | Input voltage | 1AC 220V ±15% 3AC 380V ±15% |
| Input Frequency | 50/60Hz | |
| Output | Output Voltage | 0~ rated input voltage |
| Output Frequency | 0.00~320Hz | |
| Overload Capacity | 150% /60s;180% /10s;200%/1s | |
| Control Feature | Control method | VF control Sensorless vector control |
| Run mode | Speed control, torque control | |

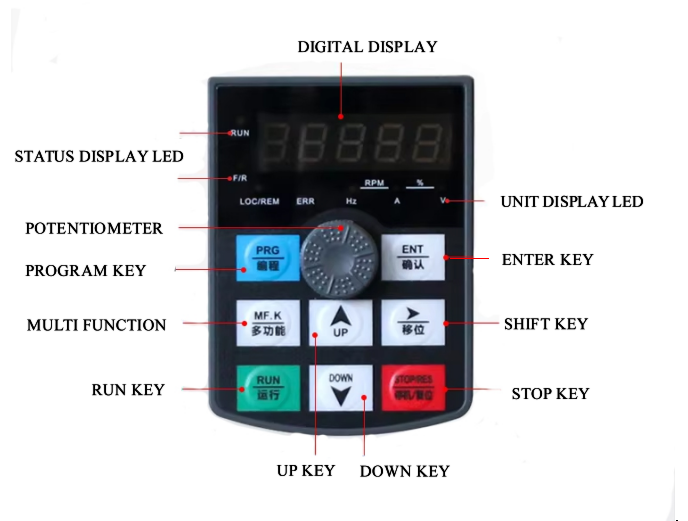

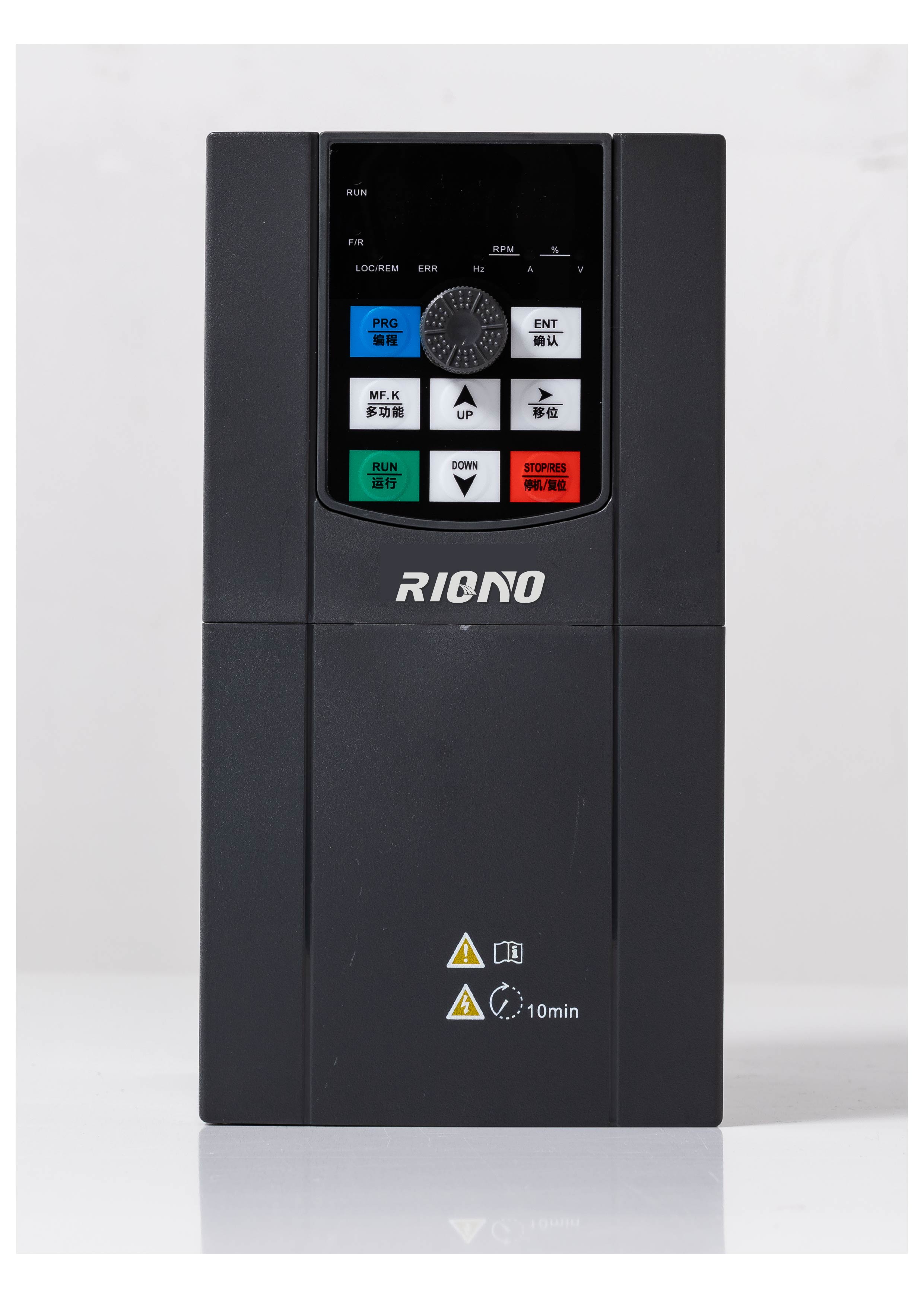

| Operation command mode | Keypad control Terminal control Serial communication control (Modbus) |
|
| Starting torque | 0.25Hz/150%(SVC);0.5Hz/150% (V/F) | |
| Start method | Direct start (DC braking can be superimposed); speed tracking start | |
| Stop method | Deceleration to stop (DC braking can be superimposed); free stop | |
| Carrier frequency | 1kHz～15kHz,automatically adjusted according to temperature and loadcharacteristics | |
| Speed control accuracy | ±0.5% （VF） ±0.2% （SVC） |
|
| Input frequency resolution | Digital input: 0.01Hz Analog input: 0.1% of maximum frequency |
|
| Function | Communication | MODBUS communication |

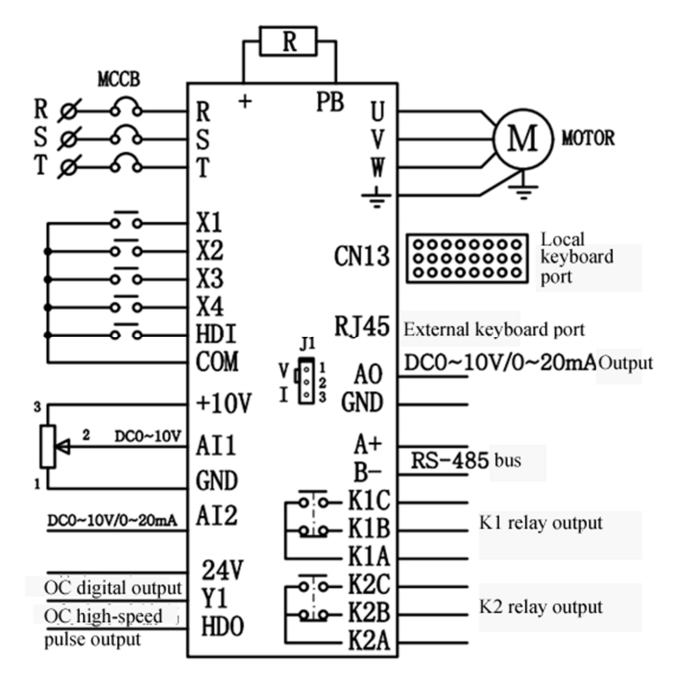

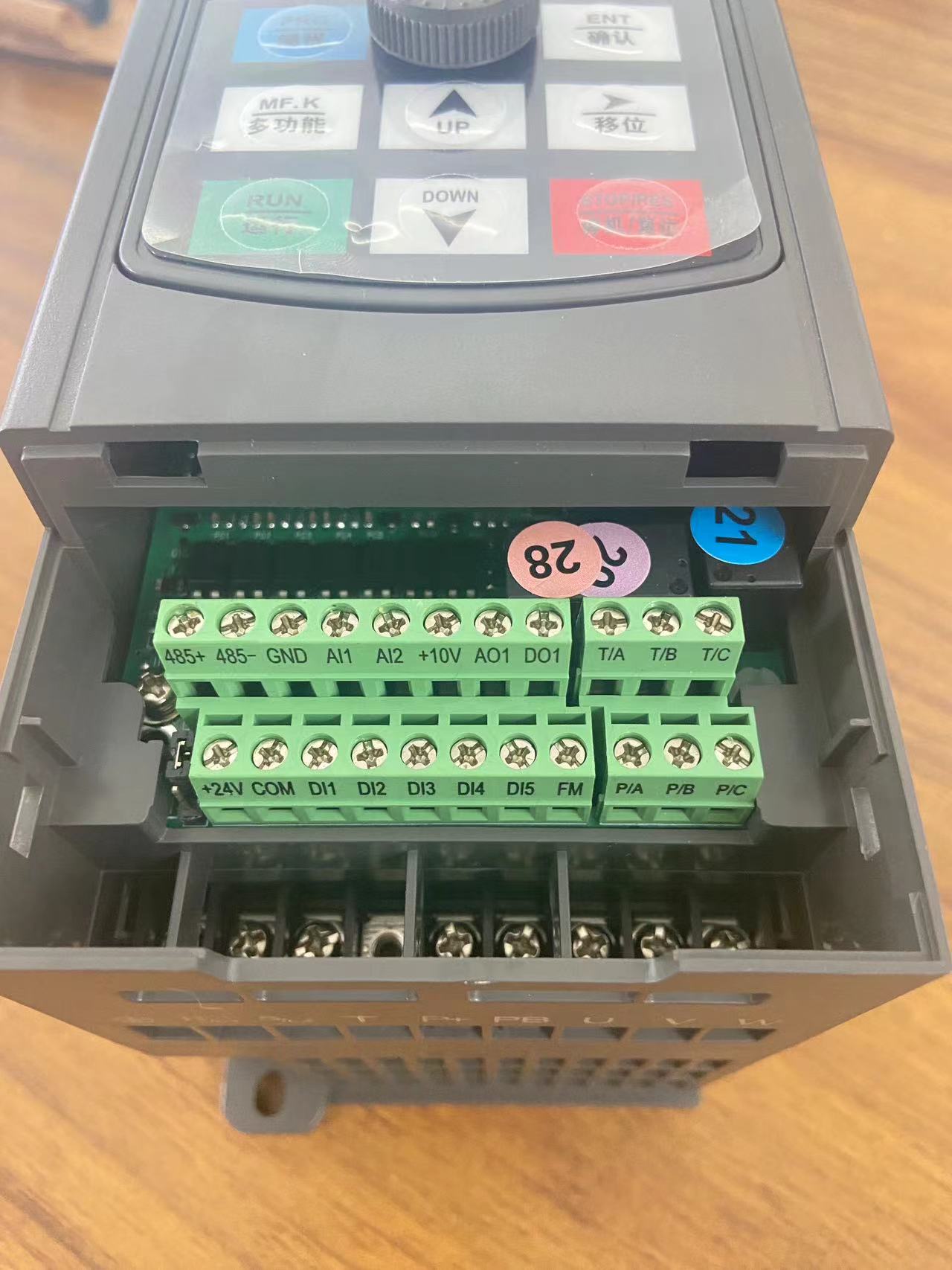

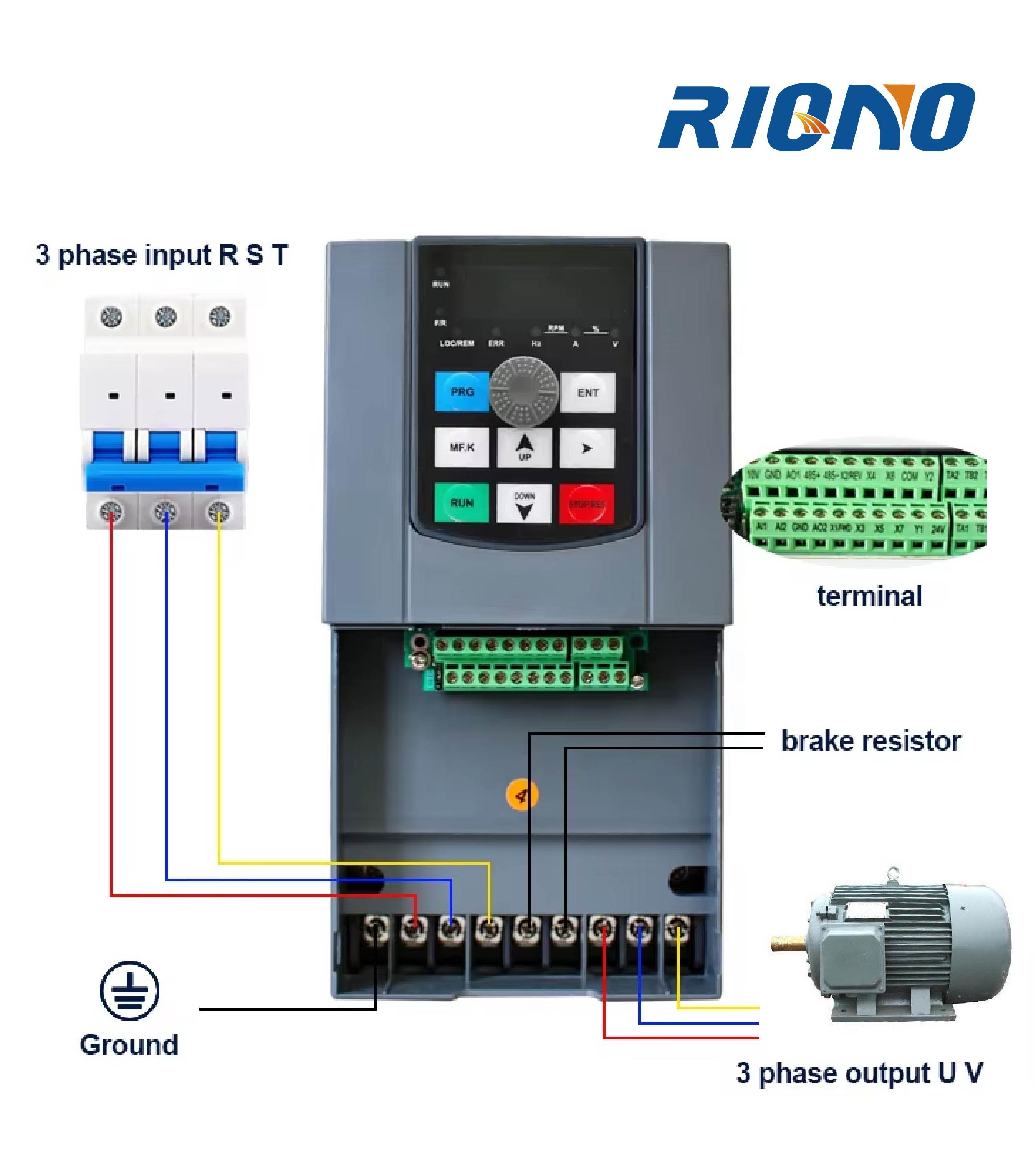

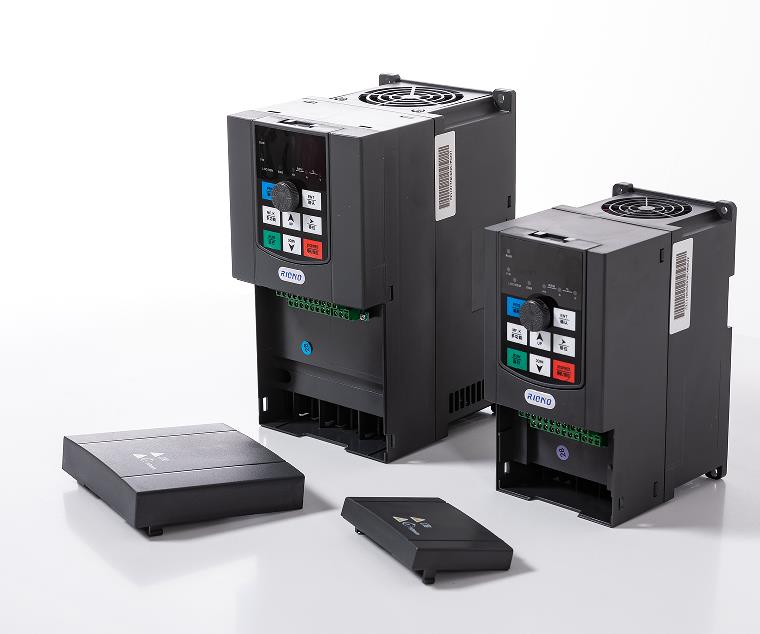

| Input terminal | 5 digital input terminals, one of which is high-speed pulse HDI input 2 analog input terminals |
|
| Output terminal | 2 digital output terminals; one of which is high-speed pulse HDO output 2 relay output terminals; 1 analog output terminal, supporting 0～20mA current output or 0～10V voltage output; |
|
| Environment | Use place | Indoors, free from direct sunlight, no dust, corrosive gas, flammable gas, oil mist, water vapor, dripping water or salt, etc. |
| Altitude | 0～3000m。Derating is required for use above 1000 m，the rated output current will be reduced by 1% for each increase of 100 m. | |
| Ambient temperature | -10℃～+40℃, Maximum 50°C. Starting from 40℃, the rated output current will decrease by 1.5% for every 1℃ increase | |
| Humidity | Less than 95%RH, non condensing | |
| Vibration | Less than 5.9m/s2（0.5g） | |
| Storage temperature | -20℃～+60℃ | |

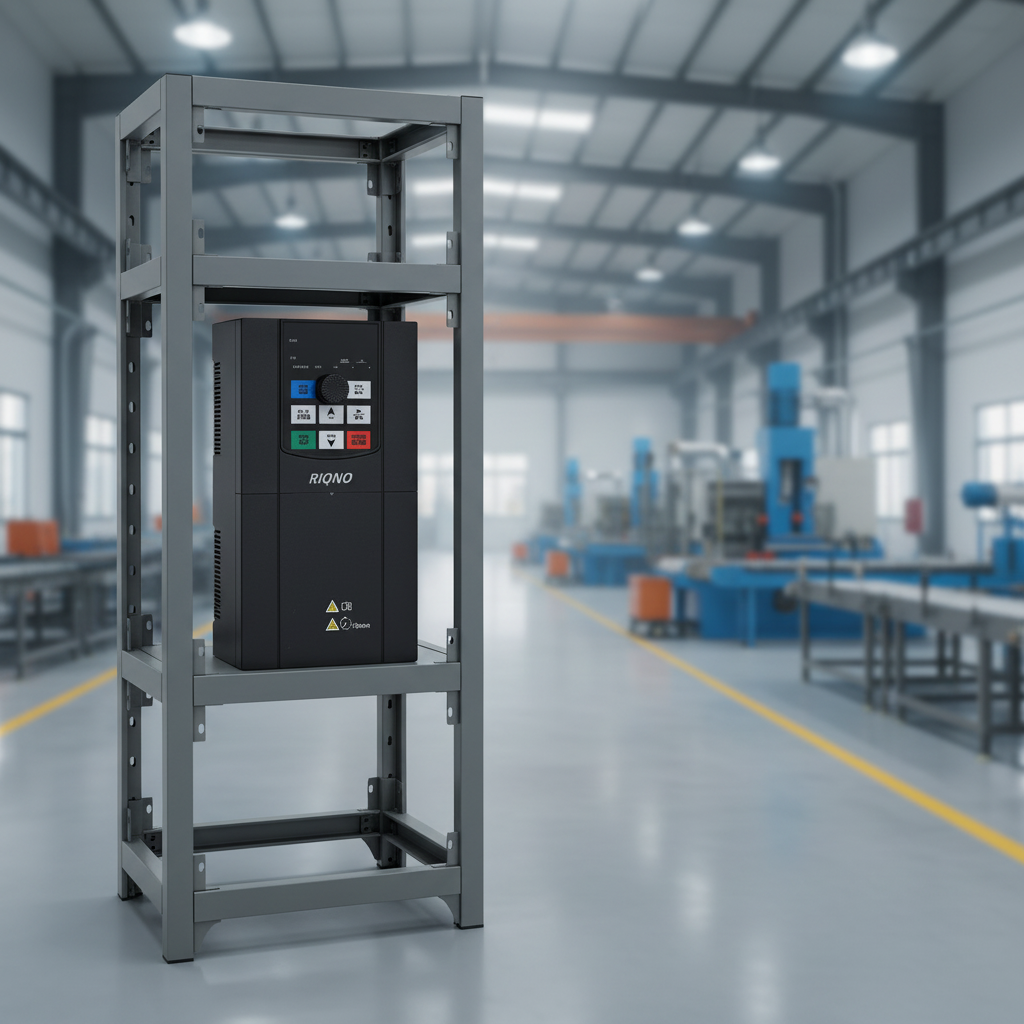

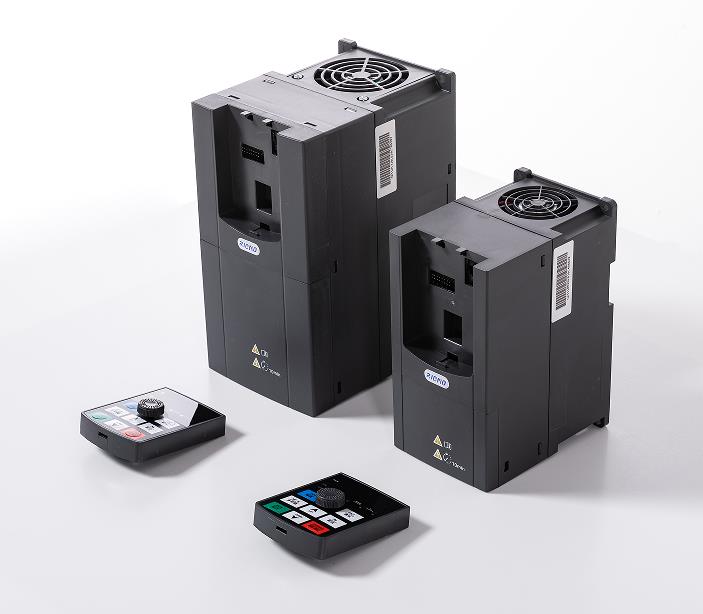

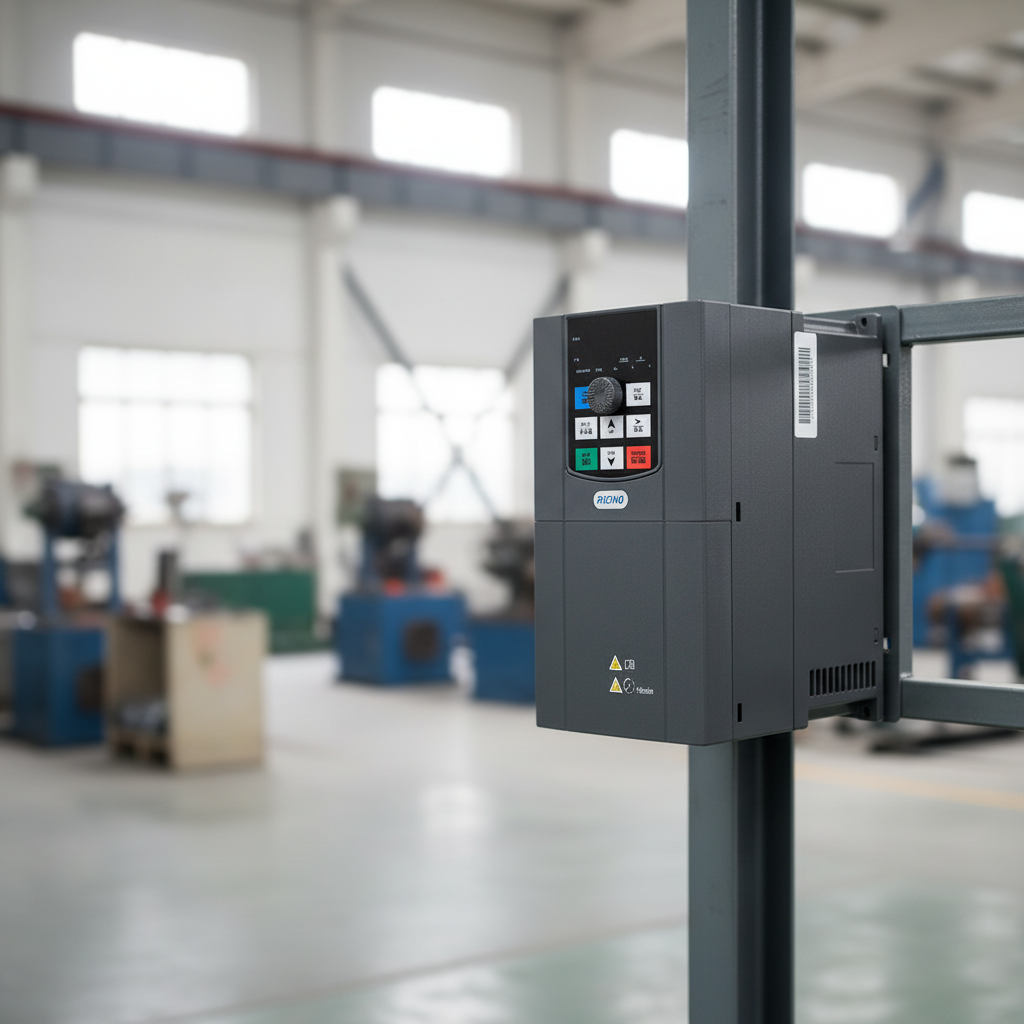

| Other | Installation method | Wall-mounted, floor-to-ceiling electric control cabinet type, through-wall type |
| Protection level | IP20 | |
| Cooling method | Forced air cooling | |
