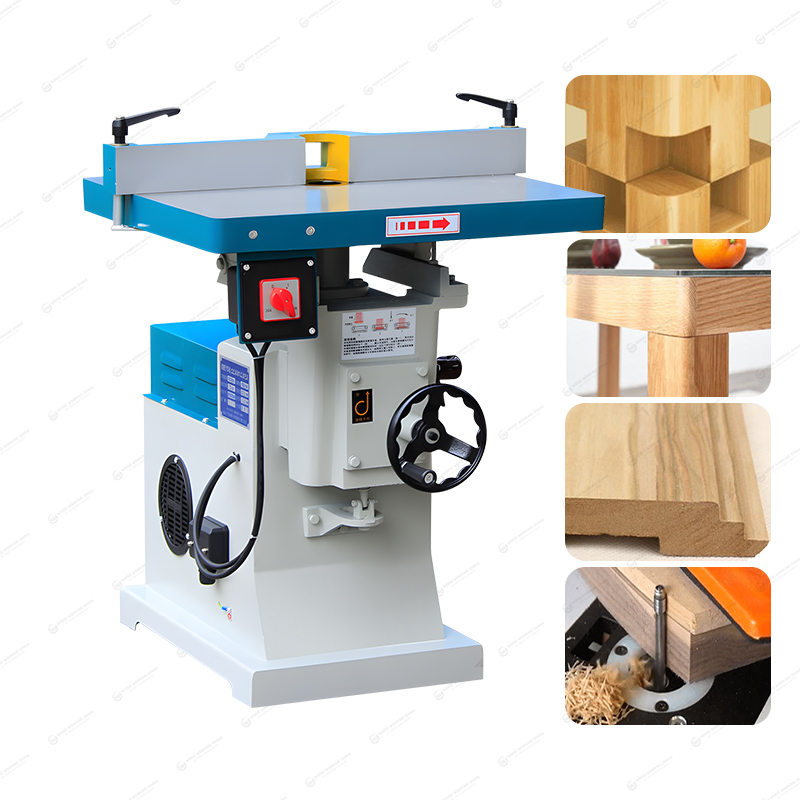

High Speed Trimming and Chamfering Machine 45 Degree Woodworking Slotting Sliding Table Spindle Moulder Vertical Milling Router
High Speed Trimming and Chamfering Machine 45 Degree Woodworking Slotting Sliding Table Spindle Moulder Vertical Milling Router
High Speed Trimming and Chamfering Machine 45 Degree Woodworking Slotting Sliding Table Spindle Moulder Vertical Milling Router
High Speed Trimming and Chamfering Machine 45 Degree Woodworking Slotting Sliding Table Spindle Moulder Vertical Milling Router
High Speed Trimming and Chamfering Machine 45 Degree Woodworking Slotting Sliding Table Spindle Moulder Vertical Milling Router
1 / 5
High Speed Trimming and Chamfering Machine 45 Degree Woodworking Slotting Sliding Table Spindle Moulder Vertical Milling Router
High Speed Trimming and Chamfering Machine 45 Degree Woodworking Slotting Sliding Table Spindle Moulder Vertical Milling Router
High Speed Trimming and Chamfering Machine 45 Degree Woodworking Slotting Sliding Table Spindle Moulder Vertical Milling Router
High Speed Trimming and Chamfering Machine 45 Degree Woodworking Slotting Sliding Table Spindle Moulder Vertical Milling Router
High Speed Trimming and Chamfering Machine 45 Degree Woodworking Slotting Sliding Table Spindle Moulder Vertical Milling Router

High Speed Trimming and Chamfering Machine 45 Degree Woodworking Slotting Sliding Table Spindle Moulder Vertical Milling Router

Send Inquiry

Product Description

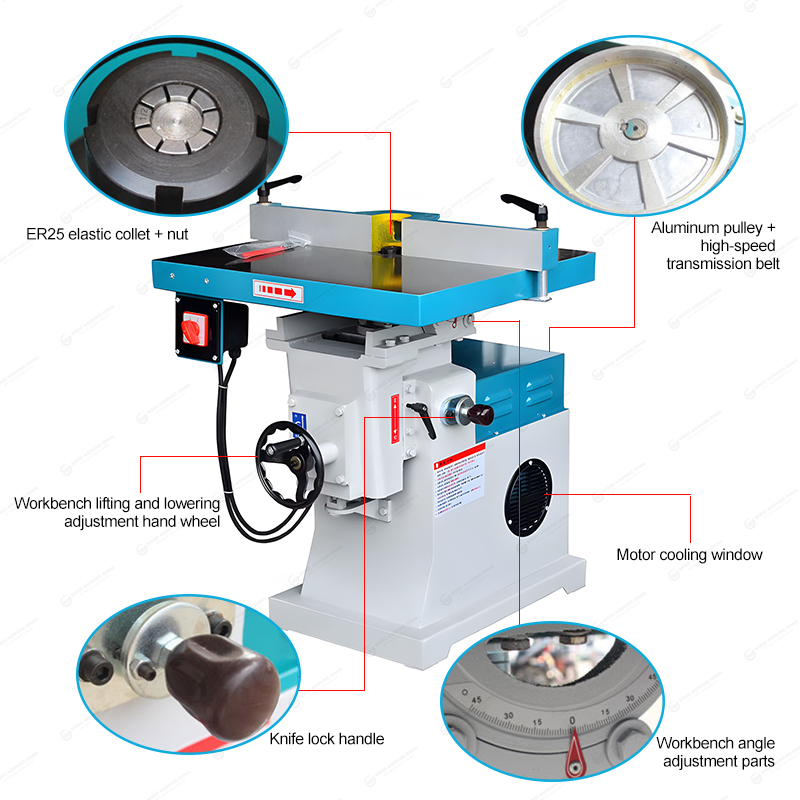

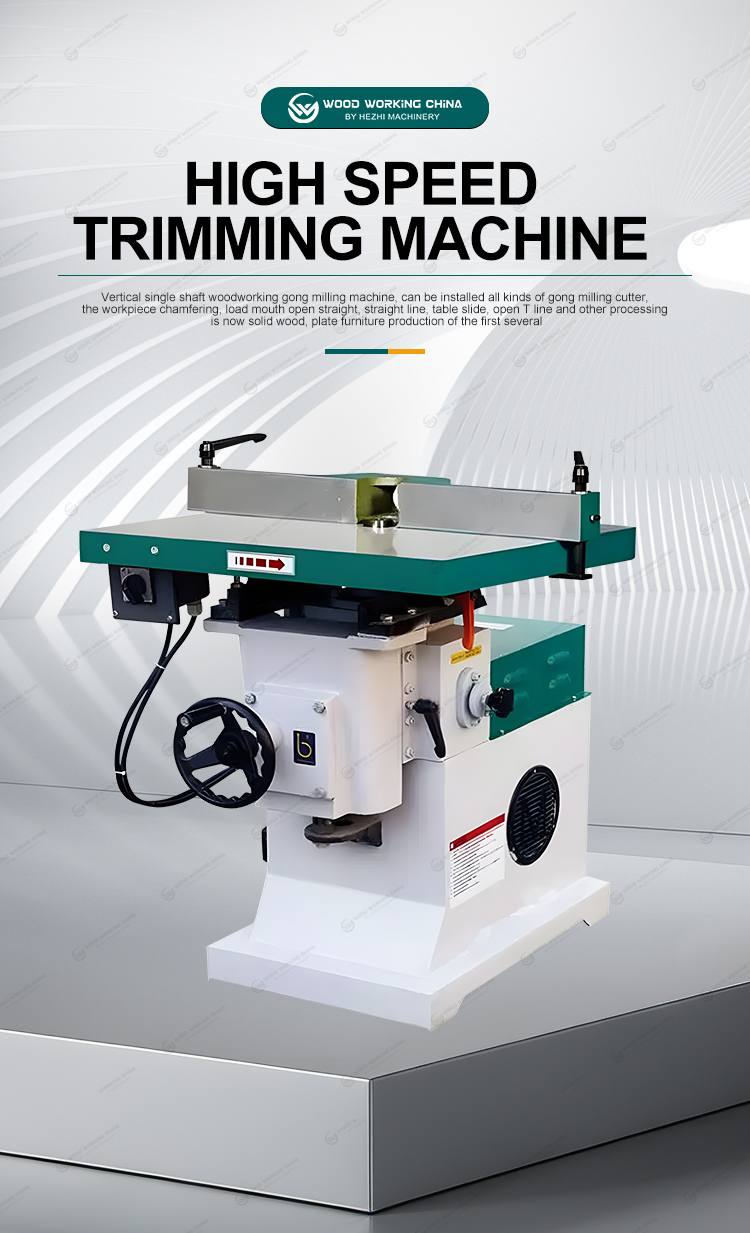

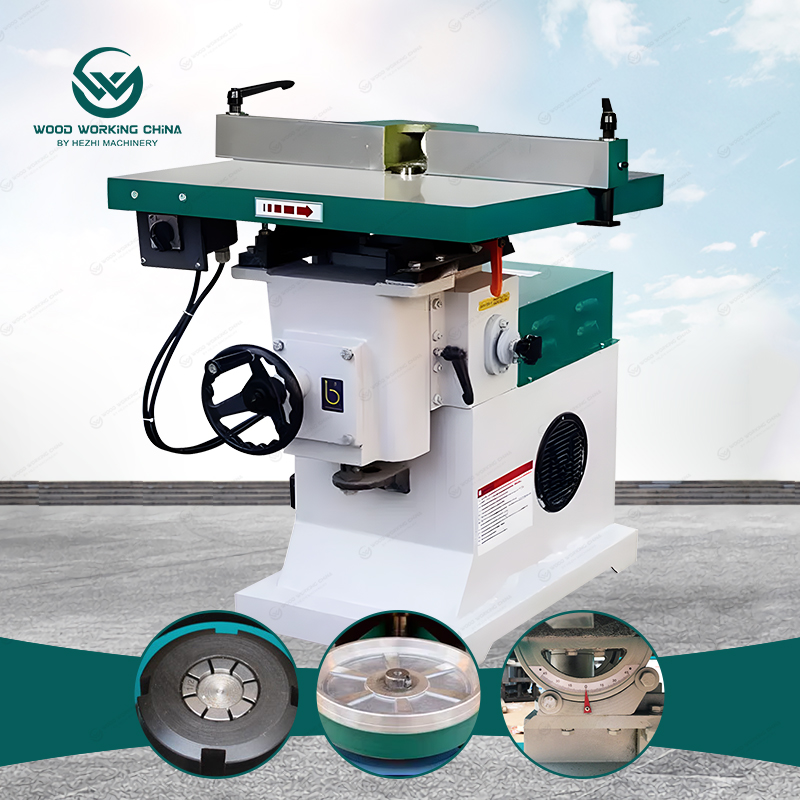

MX5115 Woodworking Machine

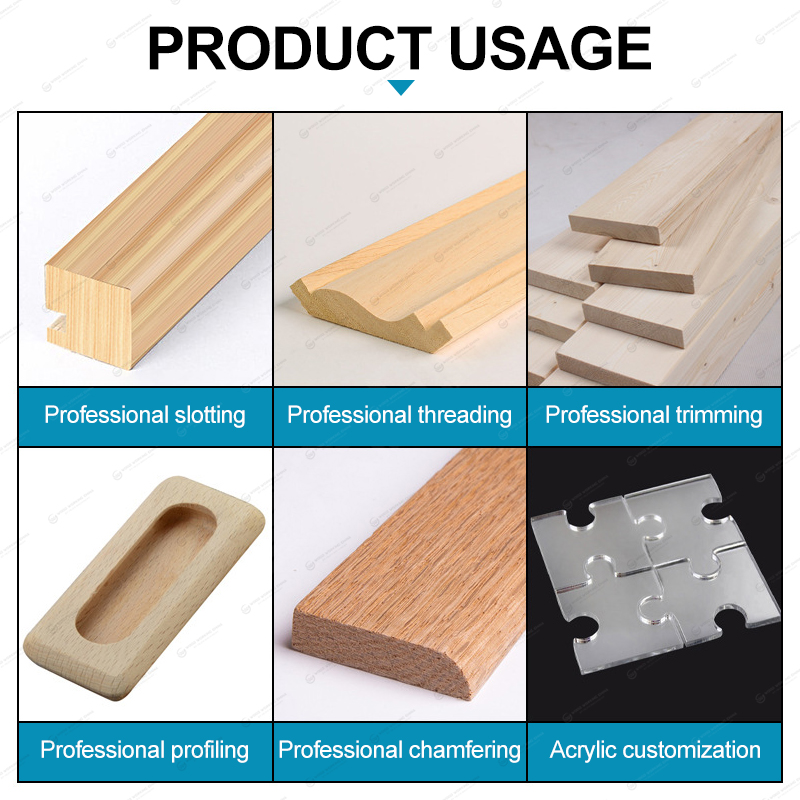

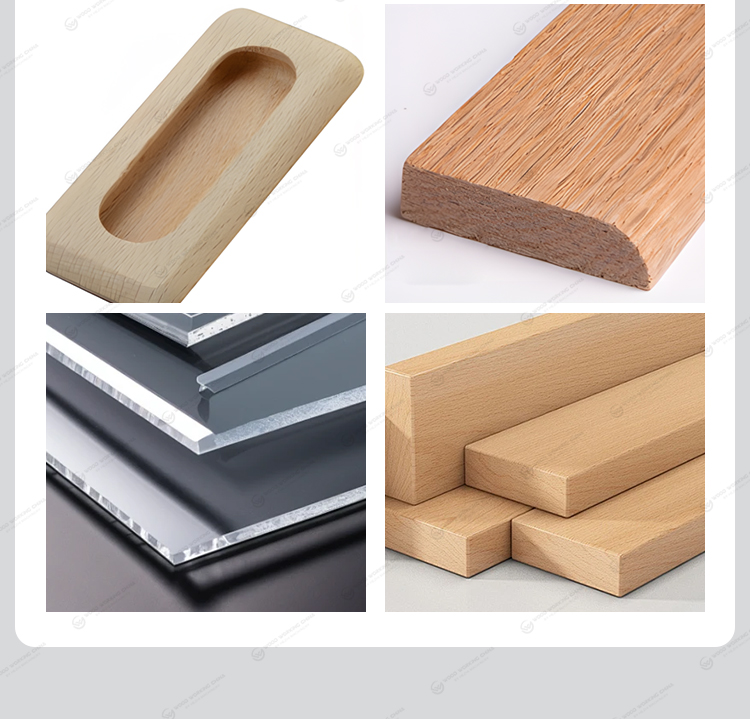

MX5115 vertical single axis woodworking Gong milling machine can be installed with all kinds of Gong milling tools, chamfering the workpiece, opening straight grain, straight line at carrier port, pulling table slide, opening t-row grain, etc
ModelMX5115

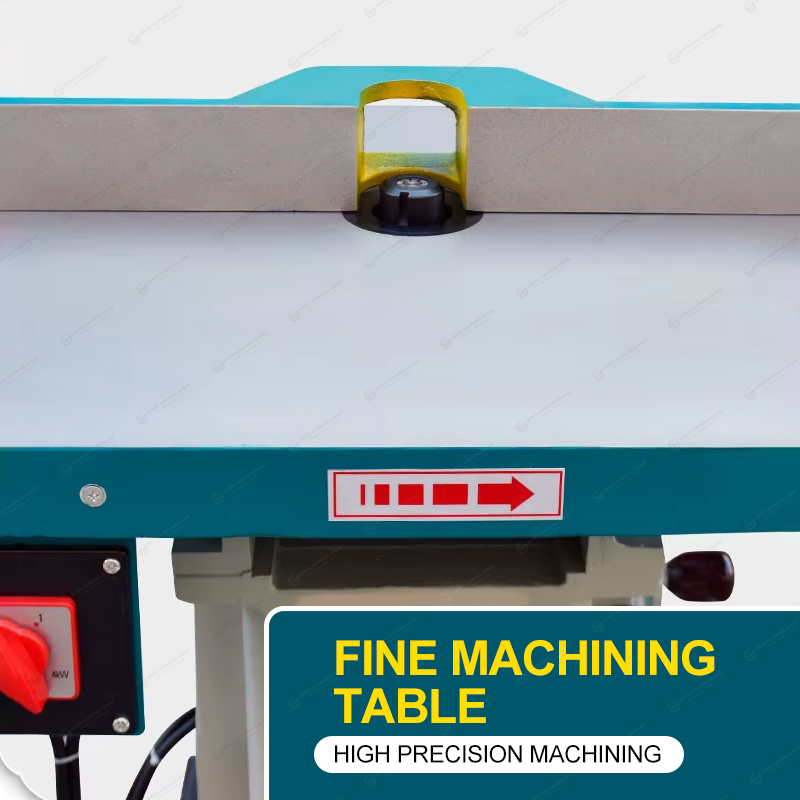

Worktable size640*580mm
Rise and down traveling for worktable120mm
Working table tilting angle45°
Max working thickness120mm
Knife clamp diameter6.3/12.7mm
Spindle rotating speed18000r/min
Voltage380v（customizable 220v）
Install power2.2kw/3kw
Package weight180KG
Package size840*740*1020mm
Frequently Asked Questions
1. What are the main applications of the MX5115 milling machine?
The MX5115 is designed for professional woodworking tasks including workpiece chamfering, opening straight grain, straight line carrier port operations, pulling table slides, and opening t-row grains.
2. Is the working voltage customizable for different regions?
Yes, while the standard voltage is 380v, we provide customization options for 220v to meet specific electrical requirements.
3. What is the maximum spindle rotation speed?
The machine operates at a high-performance spindle speed of up to 18000 r/min, ensuring smooth and precise cuts.

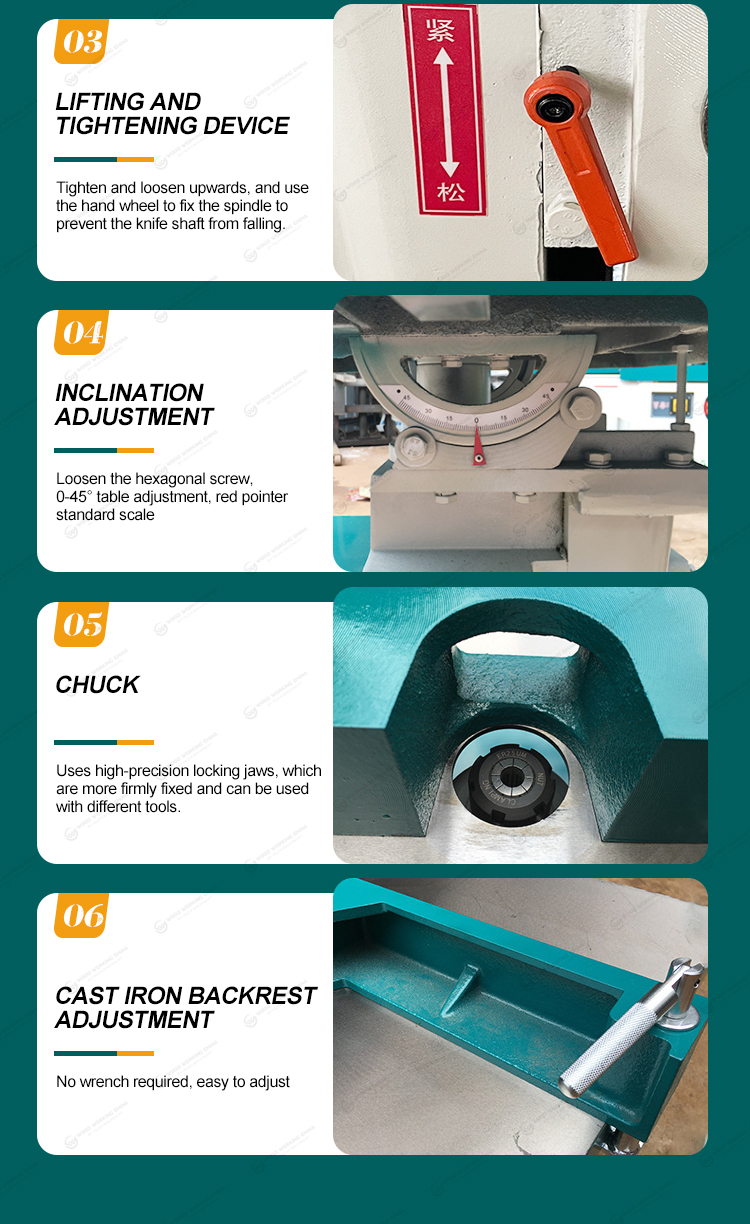

4. Can the worktable be adjusted for angled cutting?
Absolutely. The worktable features a tilting angle of up to 45° and has a vertical rise and down travel distance of 120mm for maximum versatility.
5. What knife clamp diameters does the machine support?
The MX5115 is compatible with knife clamp diameters of 6.3mm and 12.7mm, allowing for various tool installations.
6. What is the maximum thickness of wood this machine can handle?
The machine supports a maximum working thickness of 120mm, making it suitable for a wide range of woodworking projects.
