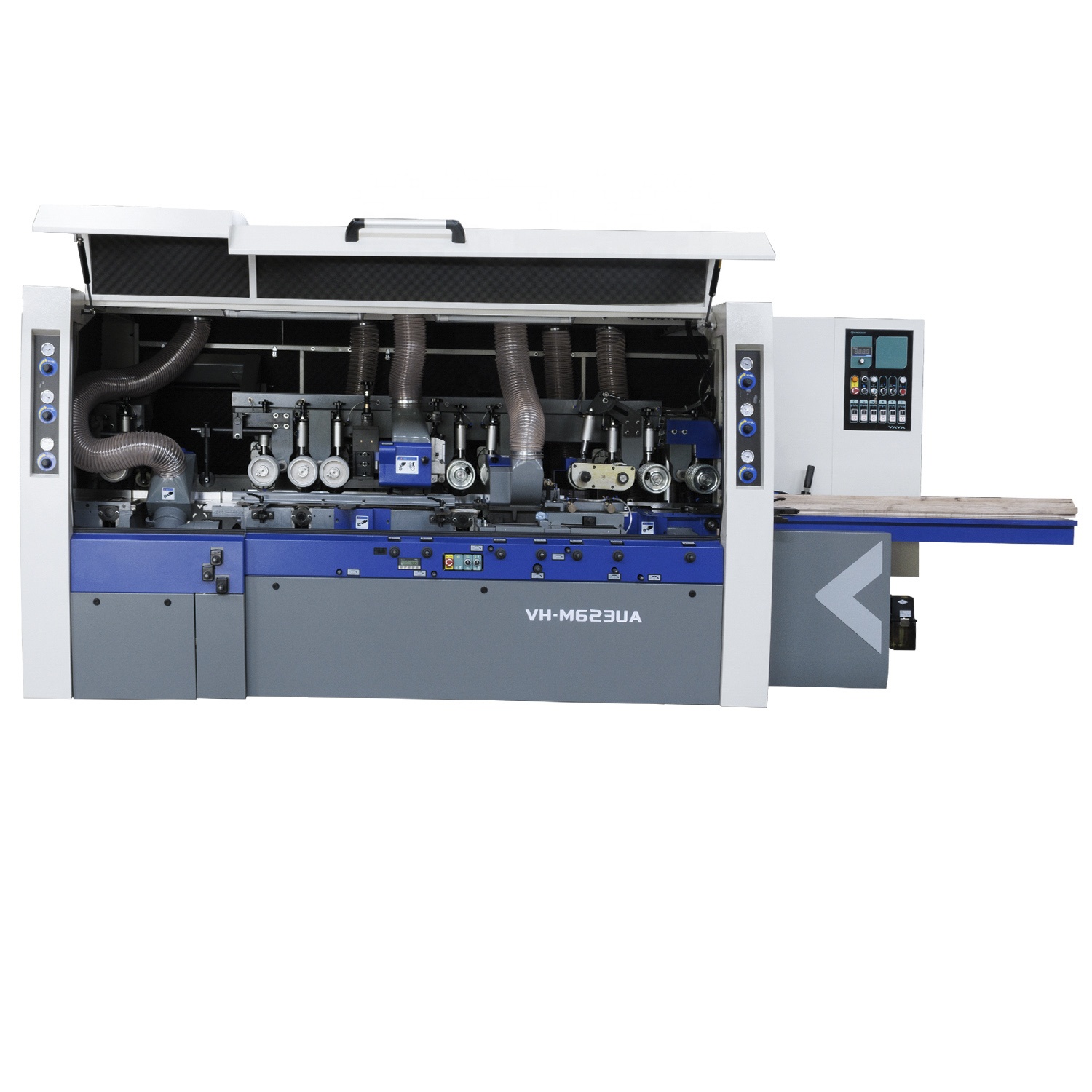

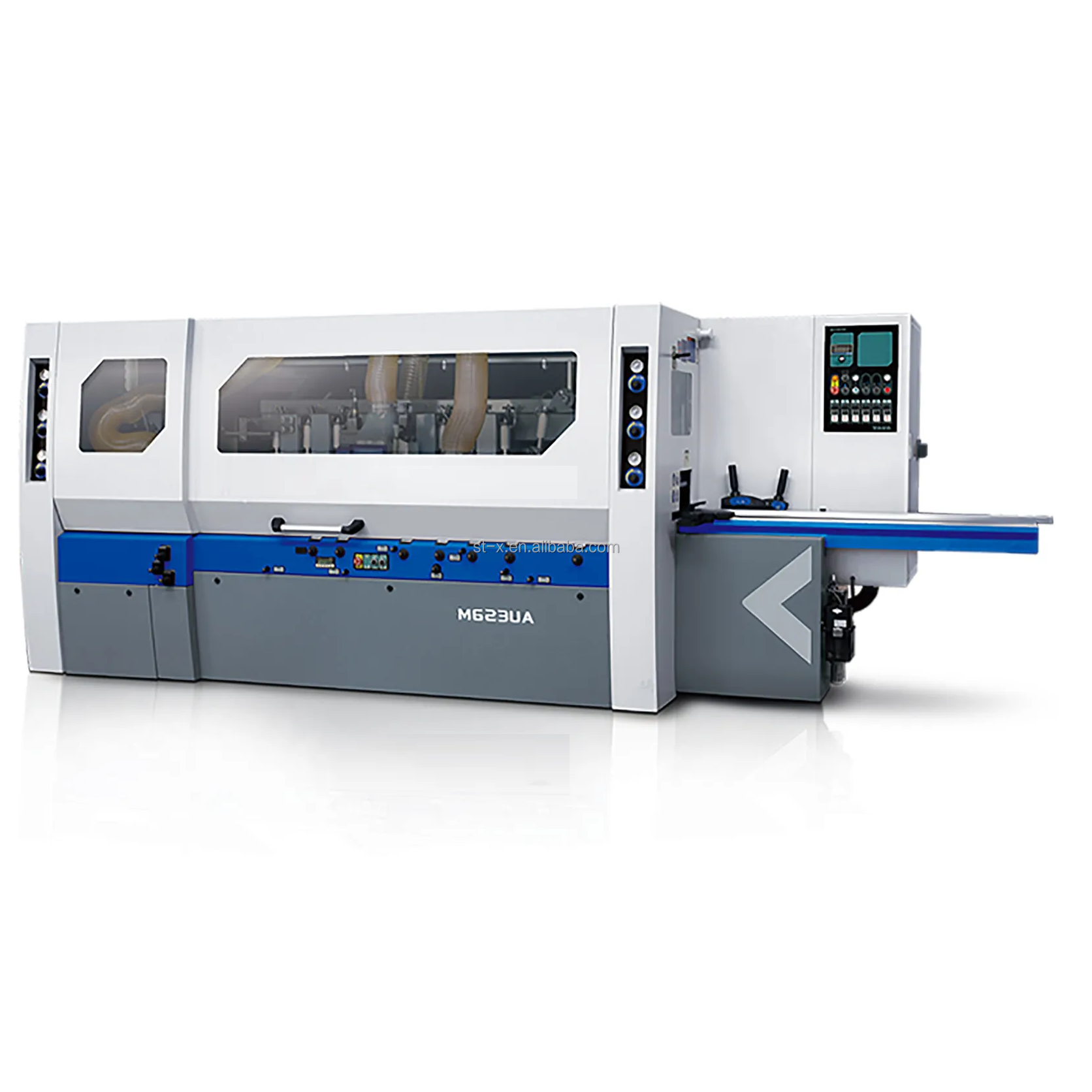

High Efficiency 4-Sided Woodworking Machine 6 Heads Four Side Planer Moulder with Universal Shaft

Product Description

Universal Shaft Four-Side Moulder M623UA
Used for one-time four-sided forming processing with heavy cutting capacity for special-shaped mouldings, wooden floors, wooden doors, door frames, and window frames.
Universal Shaft: Can be adjusted freely to any processing position, breaking the angle limitation of conventional vertical or horizontal spindles.
Variable-frequency Feeding: Standard feeding speed ranging from 6 to 36 meters per minute.
Short Workpiece Device: Provided as standard configuration for enhanced flexibility.
High-precision Spindles: Rated speed of 6200 r/min (higher rotational speed available as an optional upgrade).
Independent Control: Each spindle adopts an independent motor start control for customized processing requirements.
DETAIL SHOT

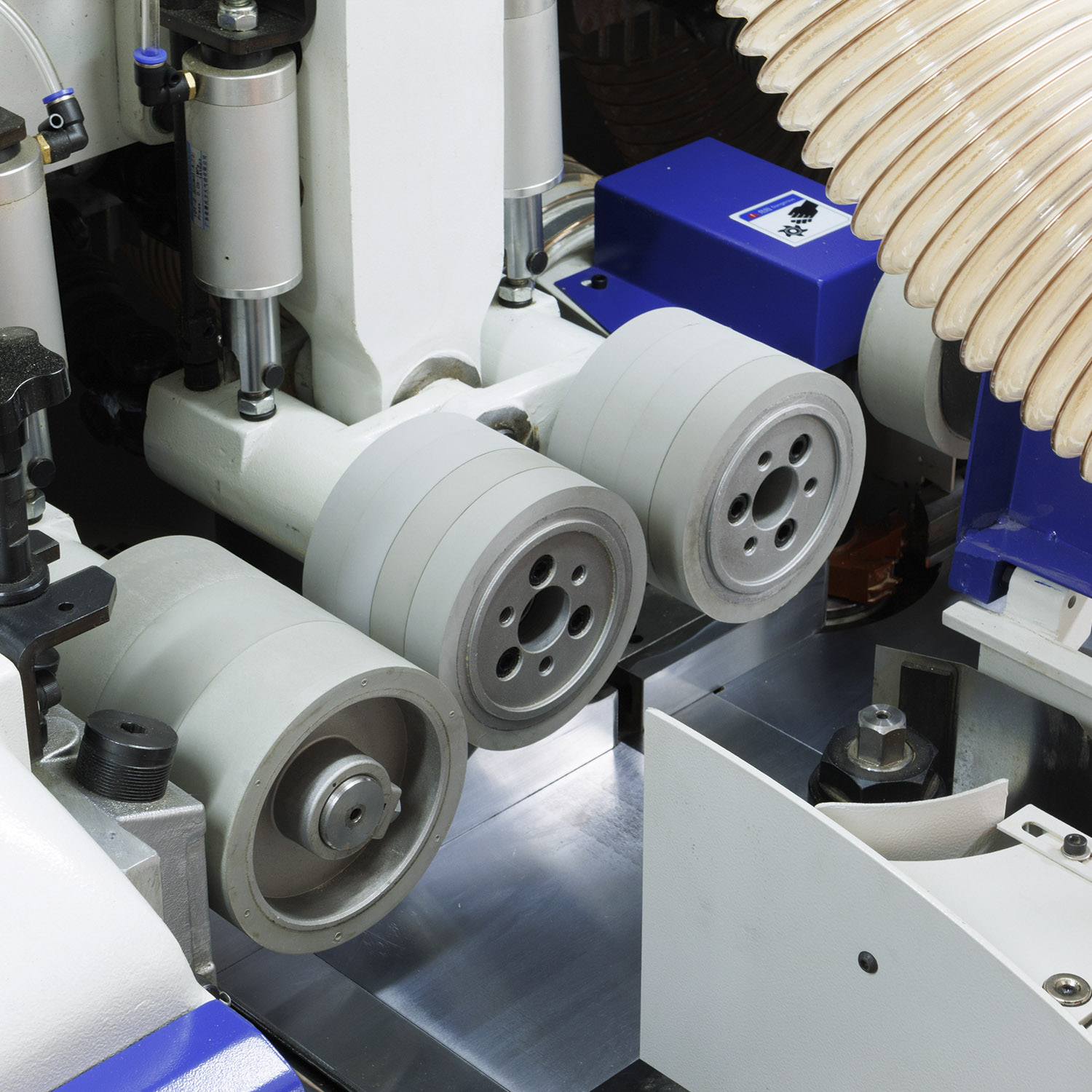

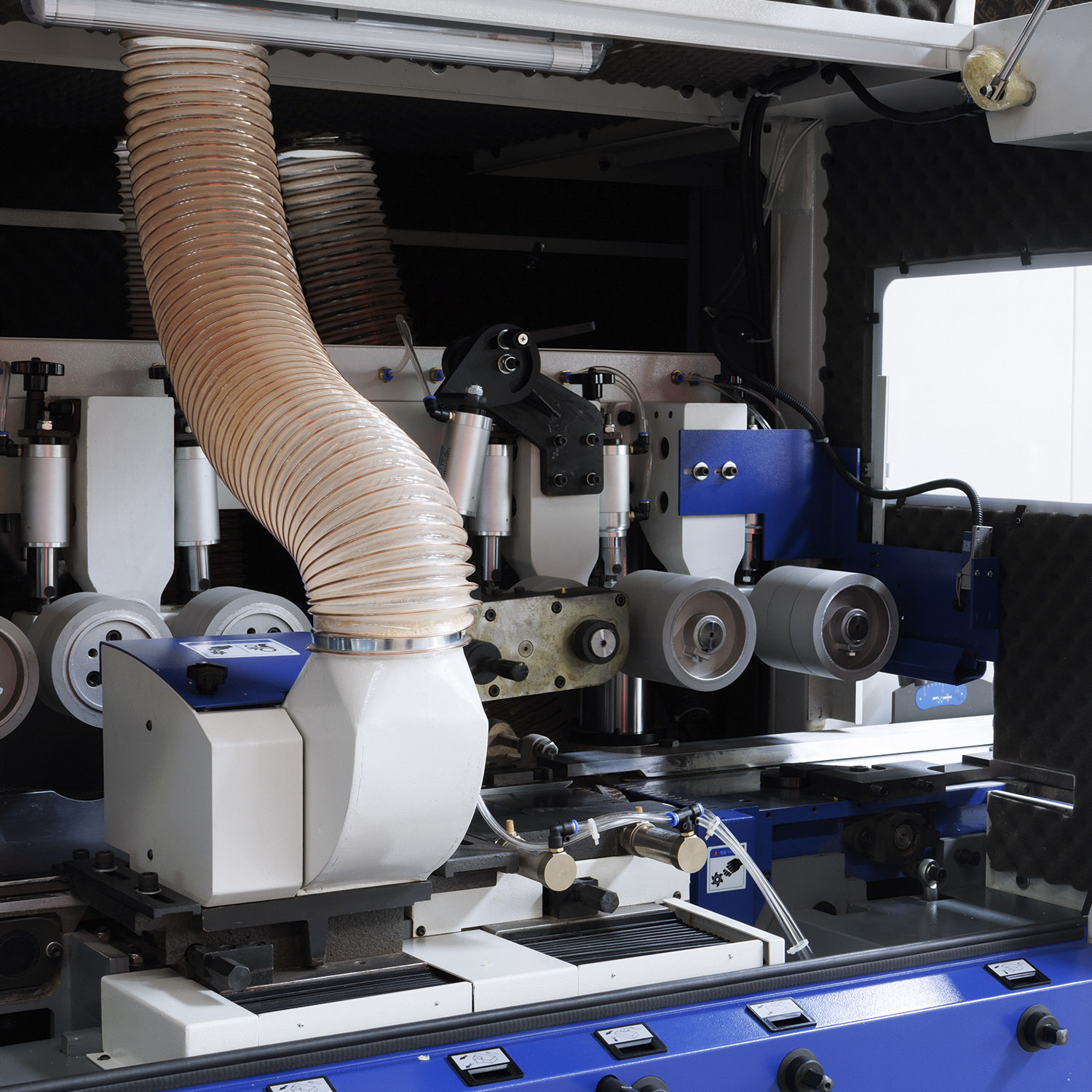

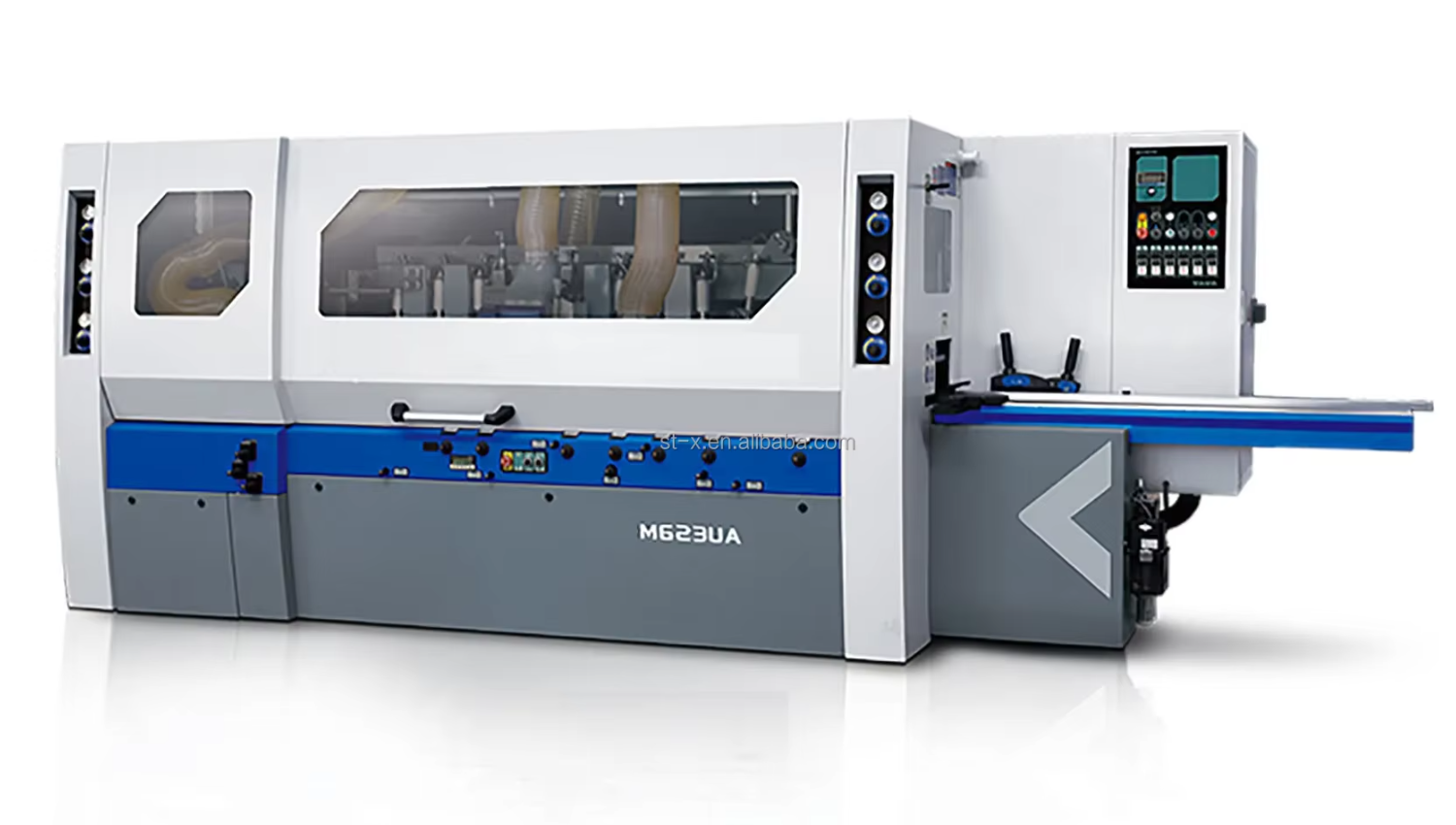

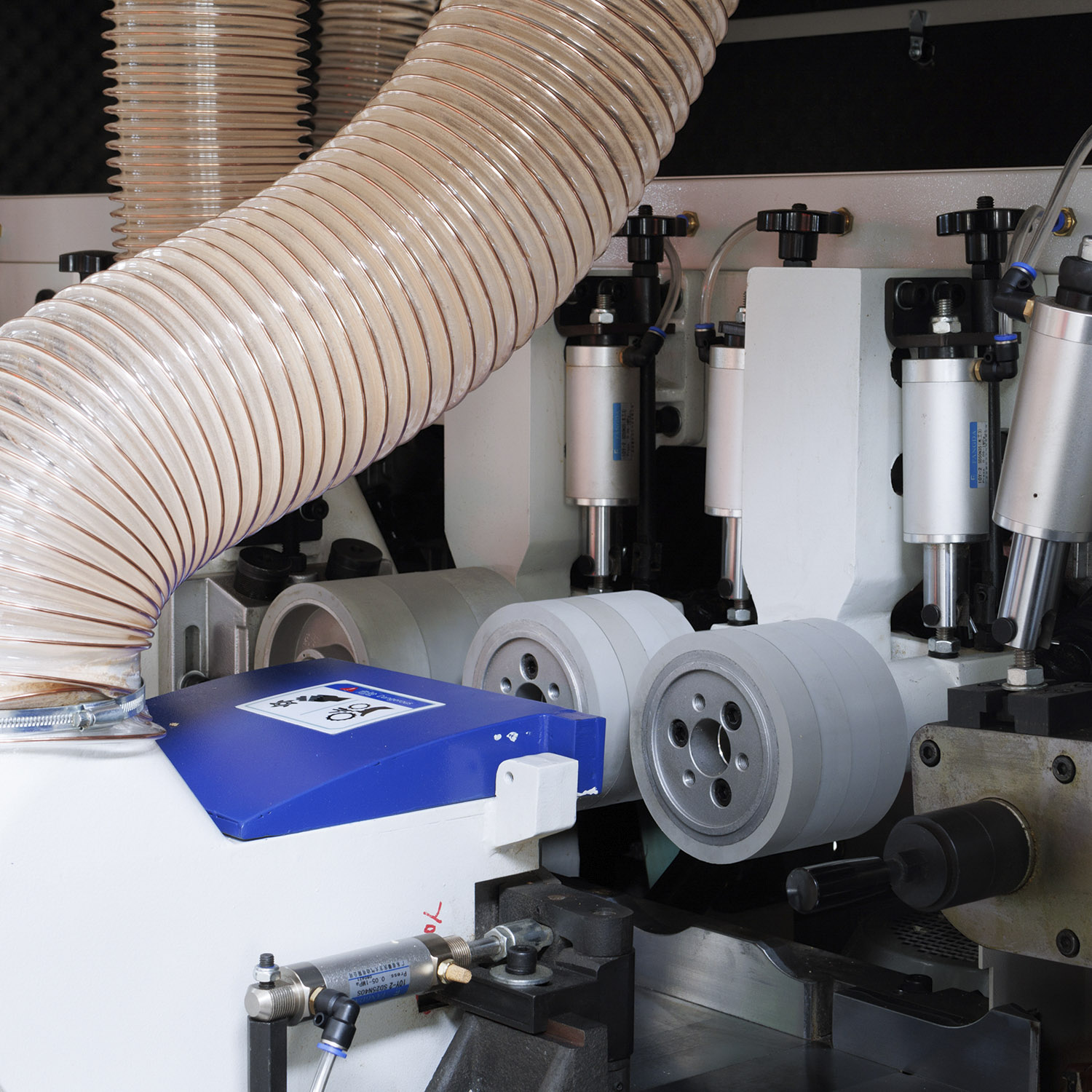

Moulder Detail

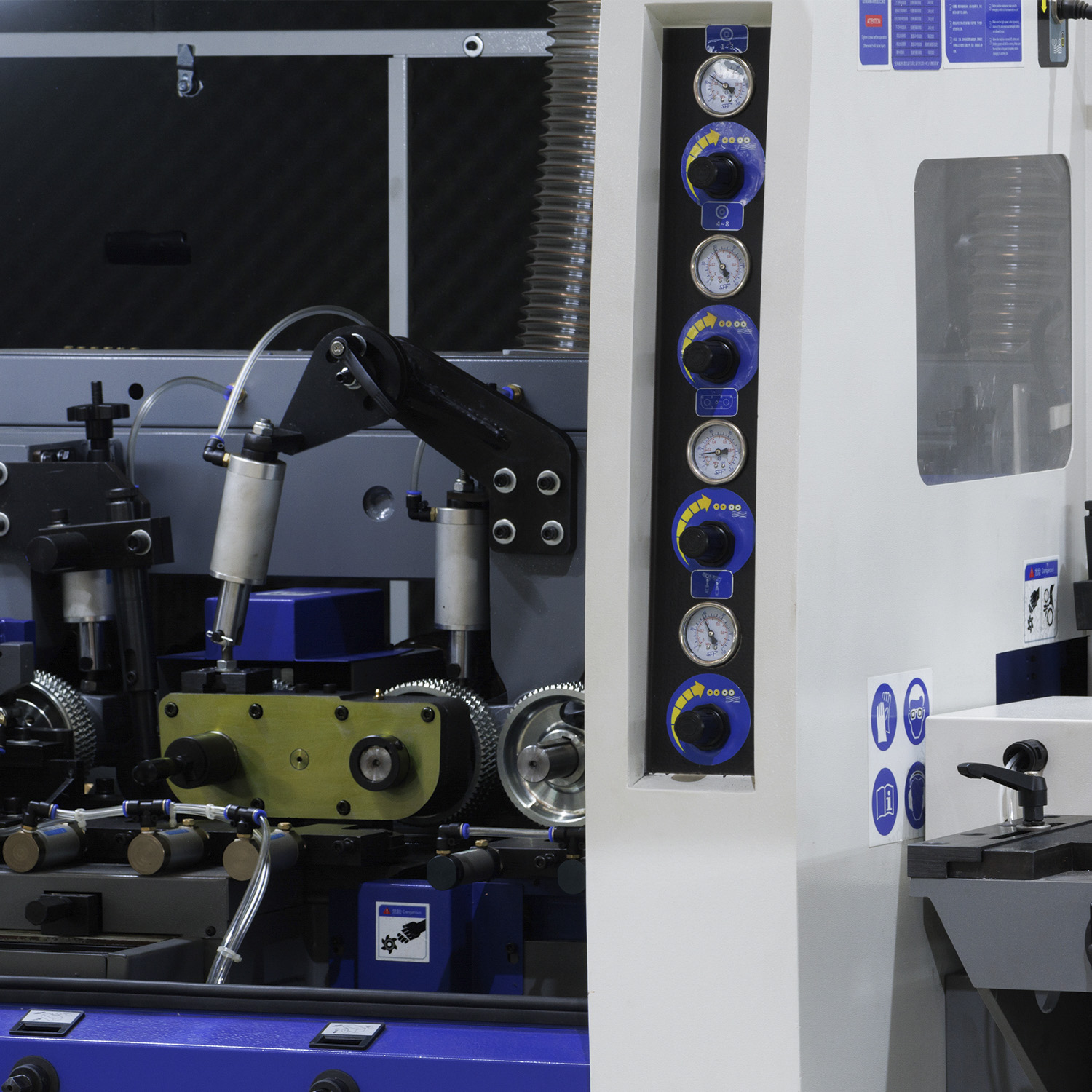

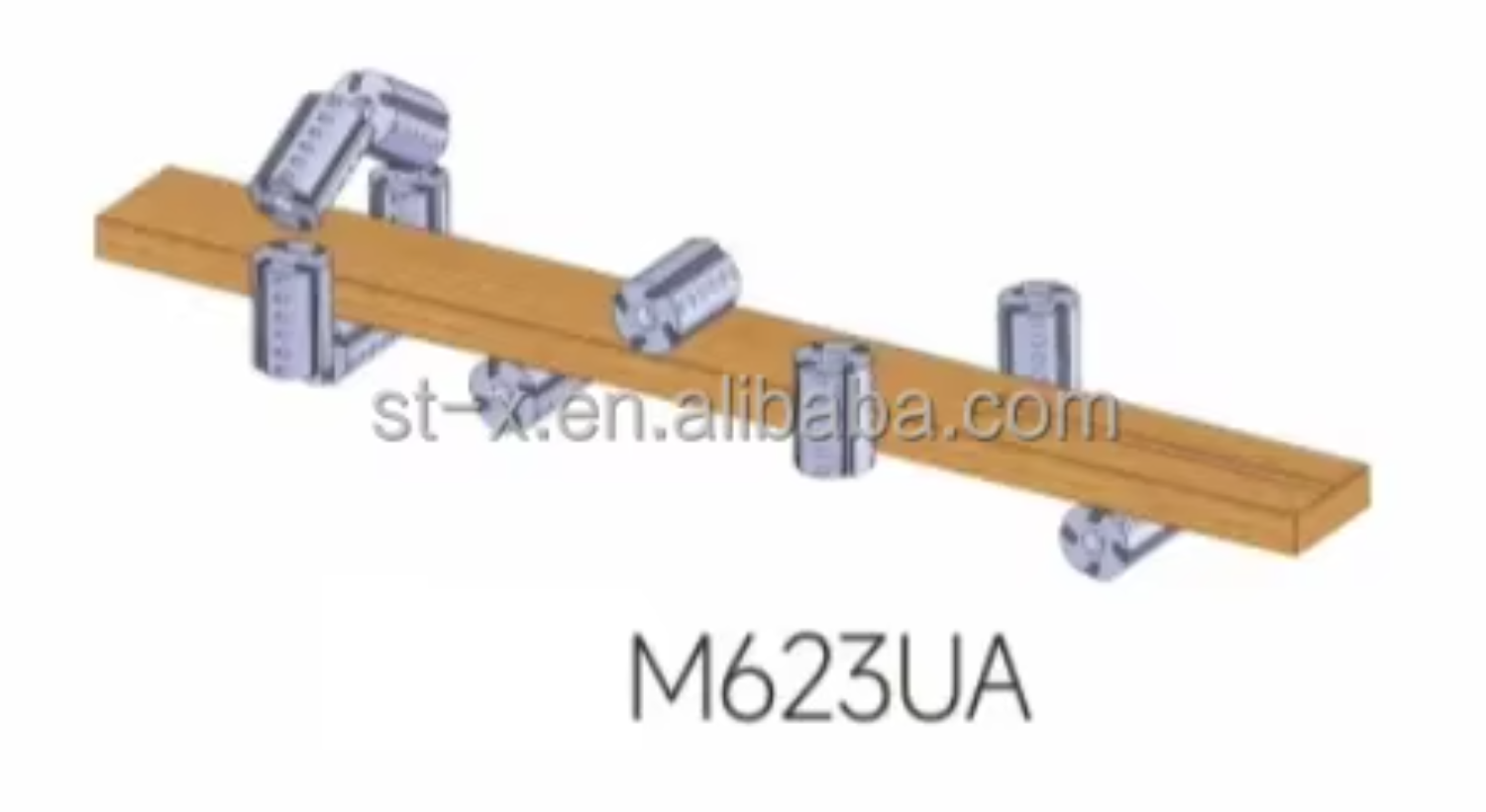

Moulder Side View

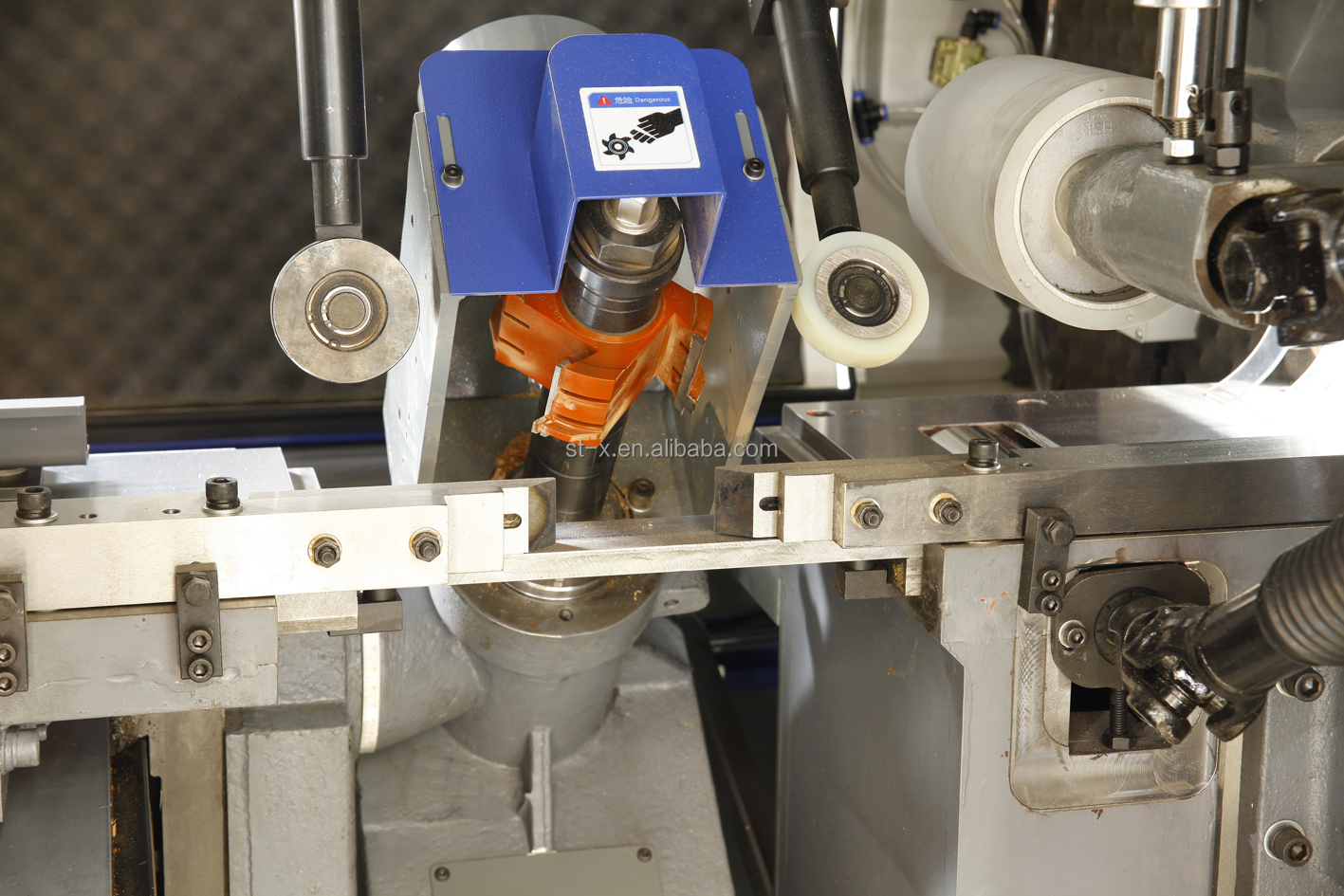

Universal Shaft

The universal shaft can be adjusted at any machining position as desired, overcoming the limitations of traditional vertical horizontal shafts in terms of machining angles.

For special wood shapes, universal shafts provide more flexible solutions, making wood processing more like an artistic creation process.

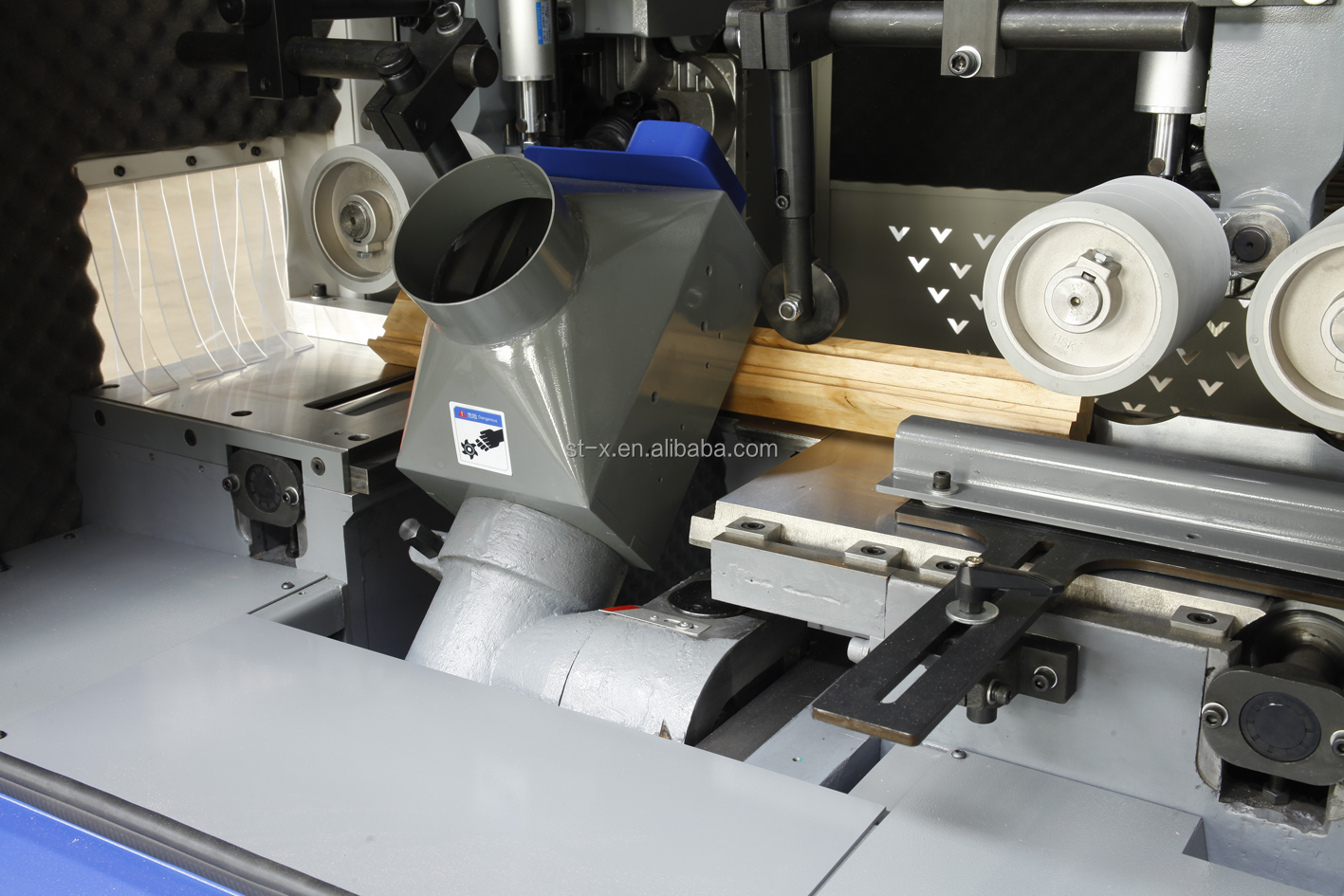

Flexible Solutions

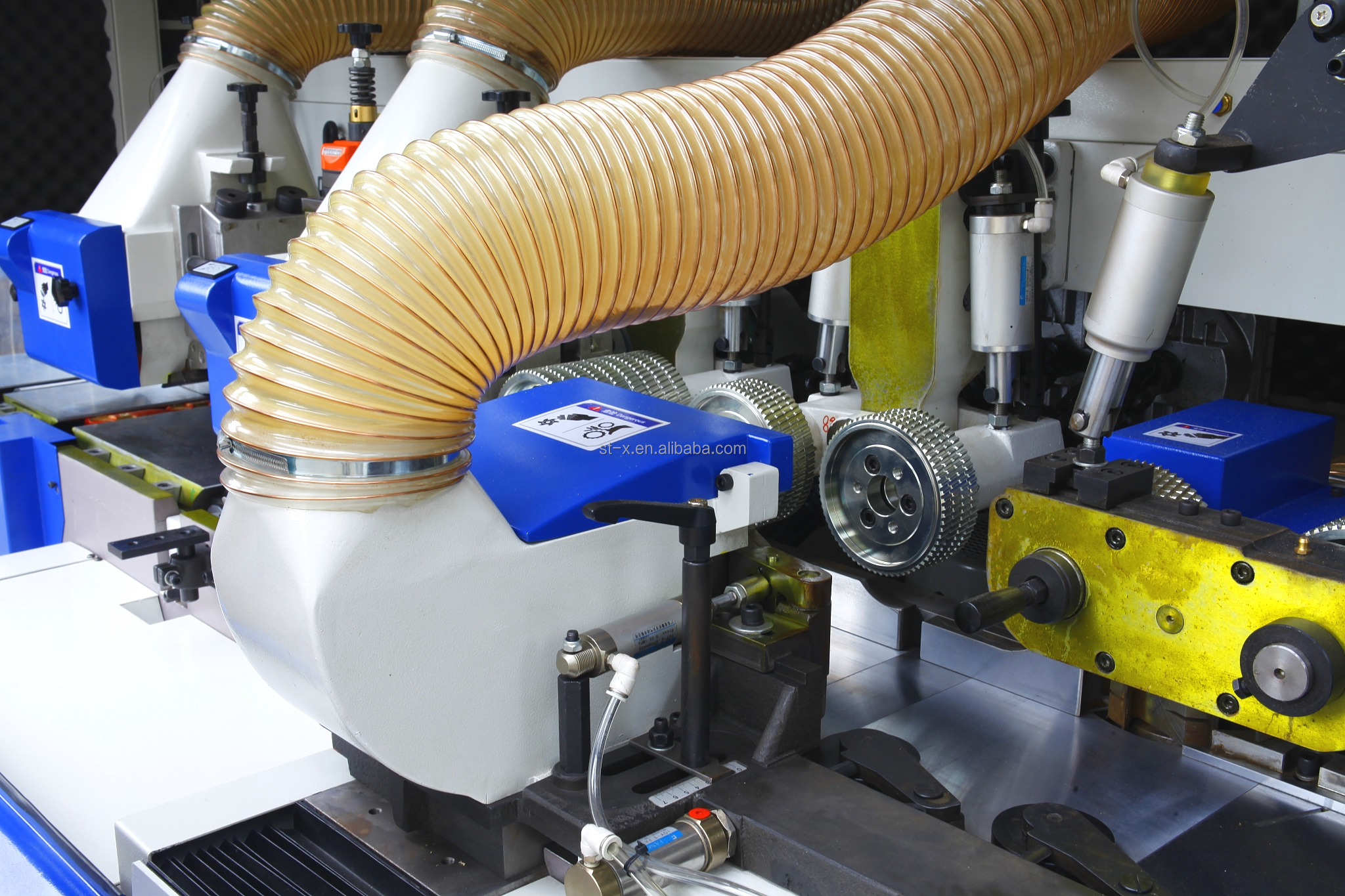

Dust Removal

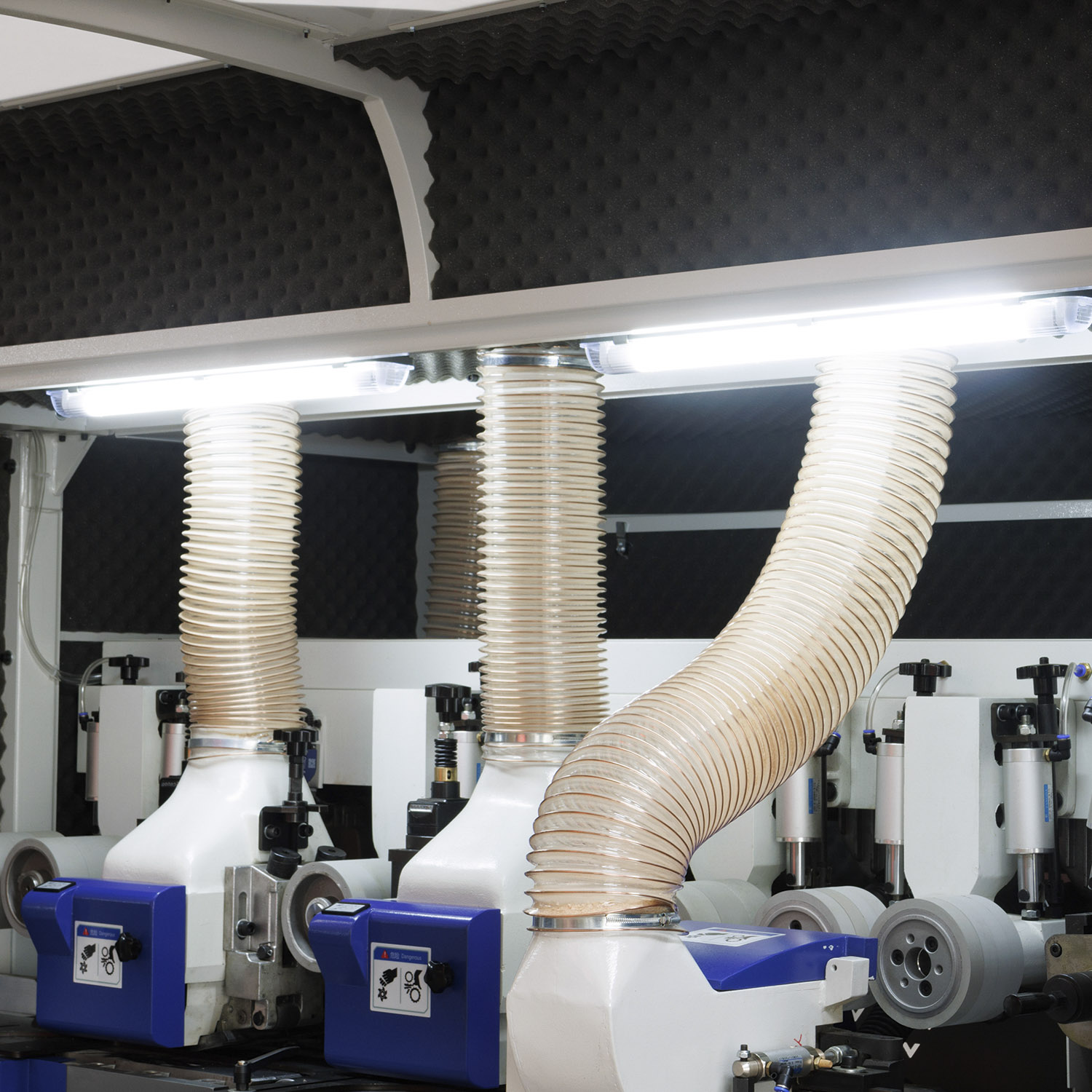

Efficient dust removal: the new dust suction structure can more effectively remove wood chips, minimizing dents on the surface of the finished product and effectively controlling noise.

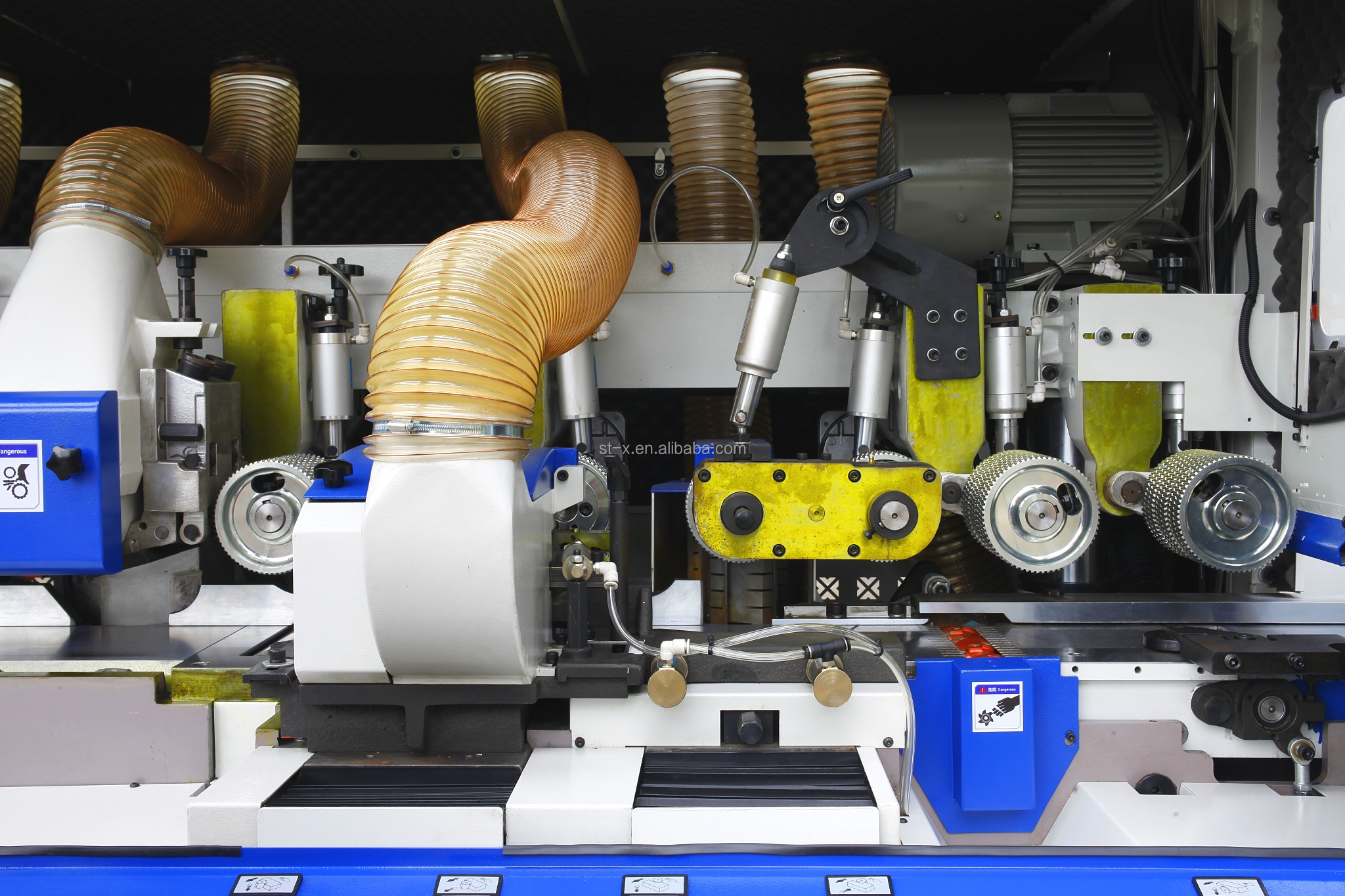

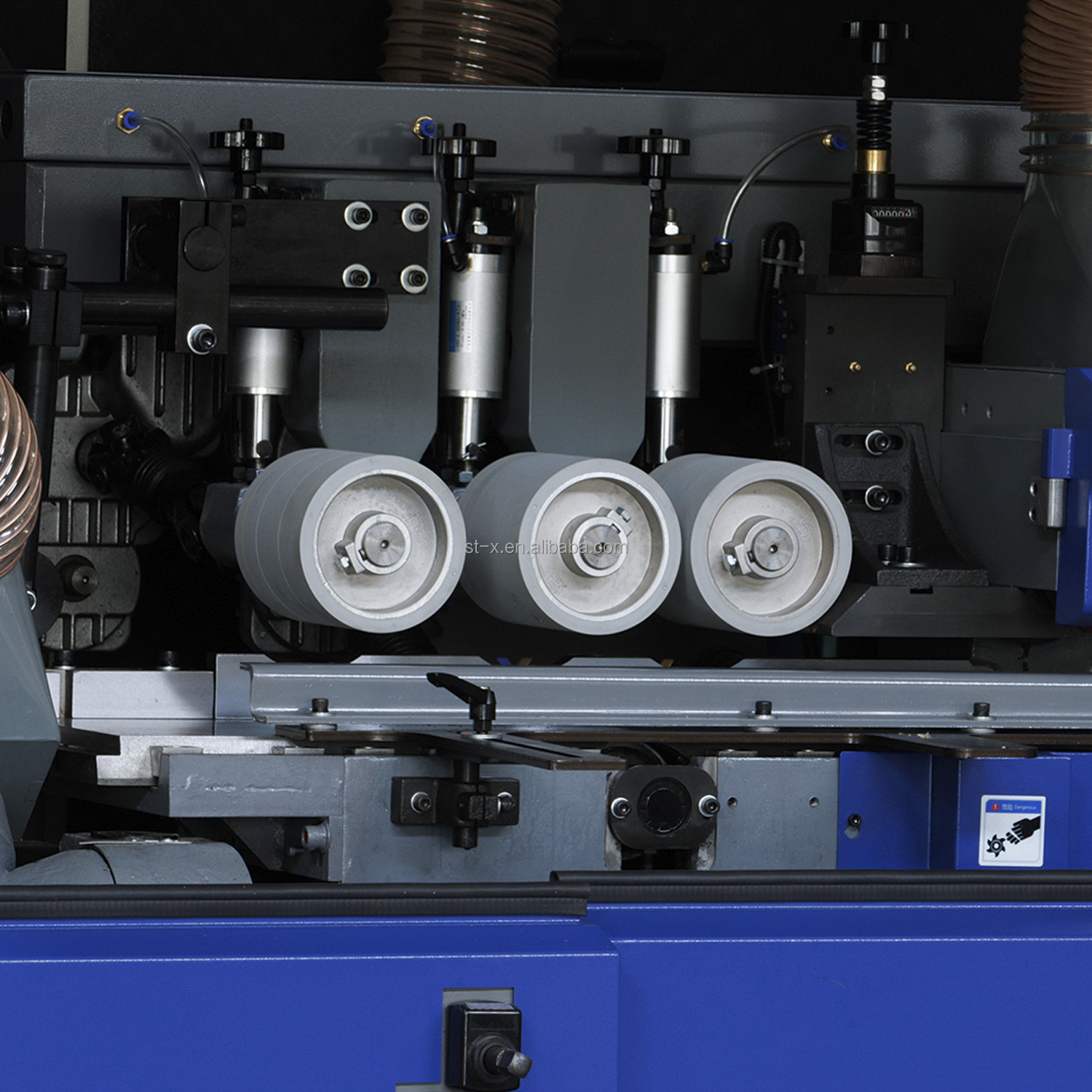

Quick liftable short material device: This mechanism enables the smooth feeding roller to have the function of transmission, making feeding more brisk. With the liftable feeding roller, you can change and adjust the knife easily.

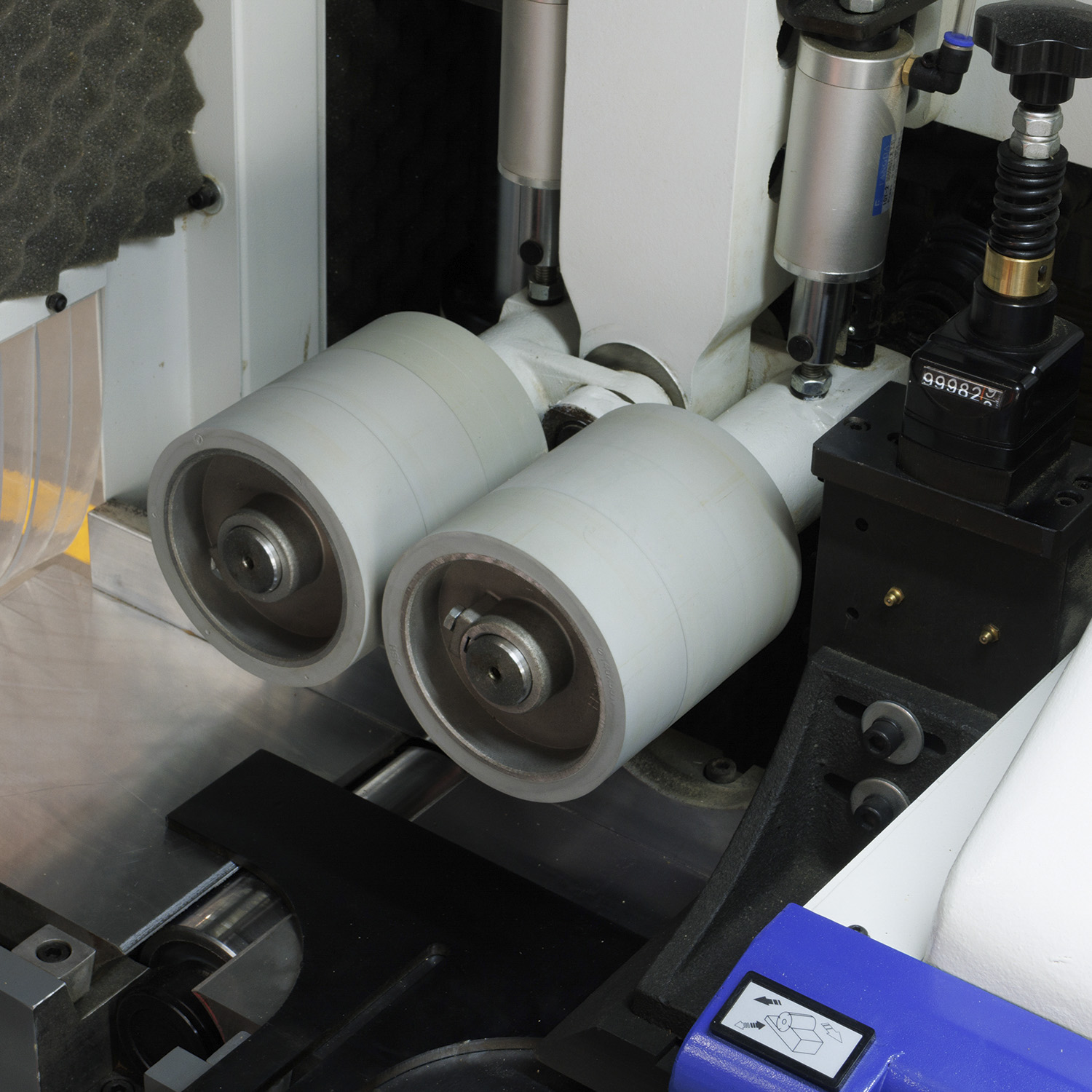

Short Material Device
SCENE IMAGE

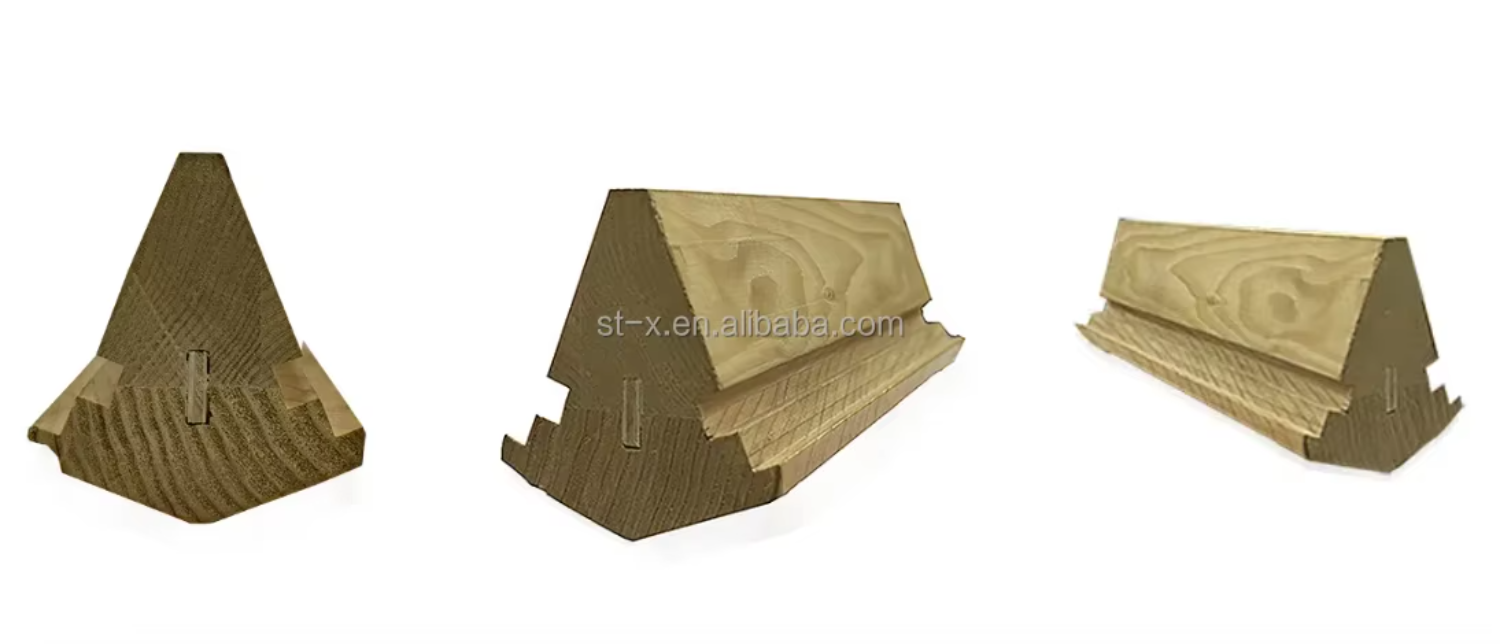

Working Scene
TECHNICAL DATAS

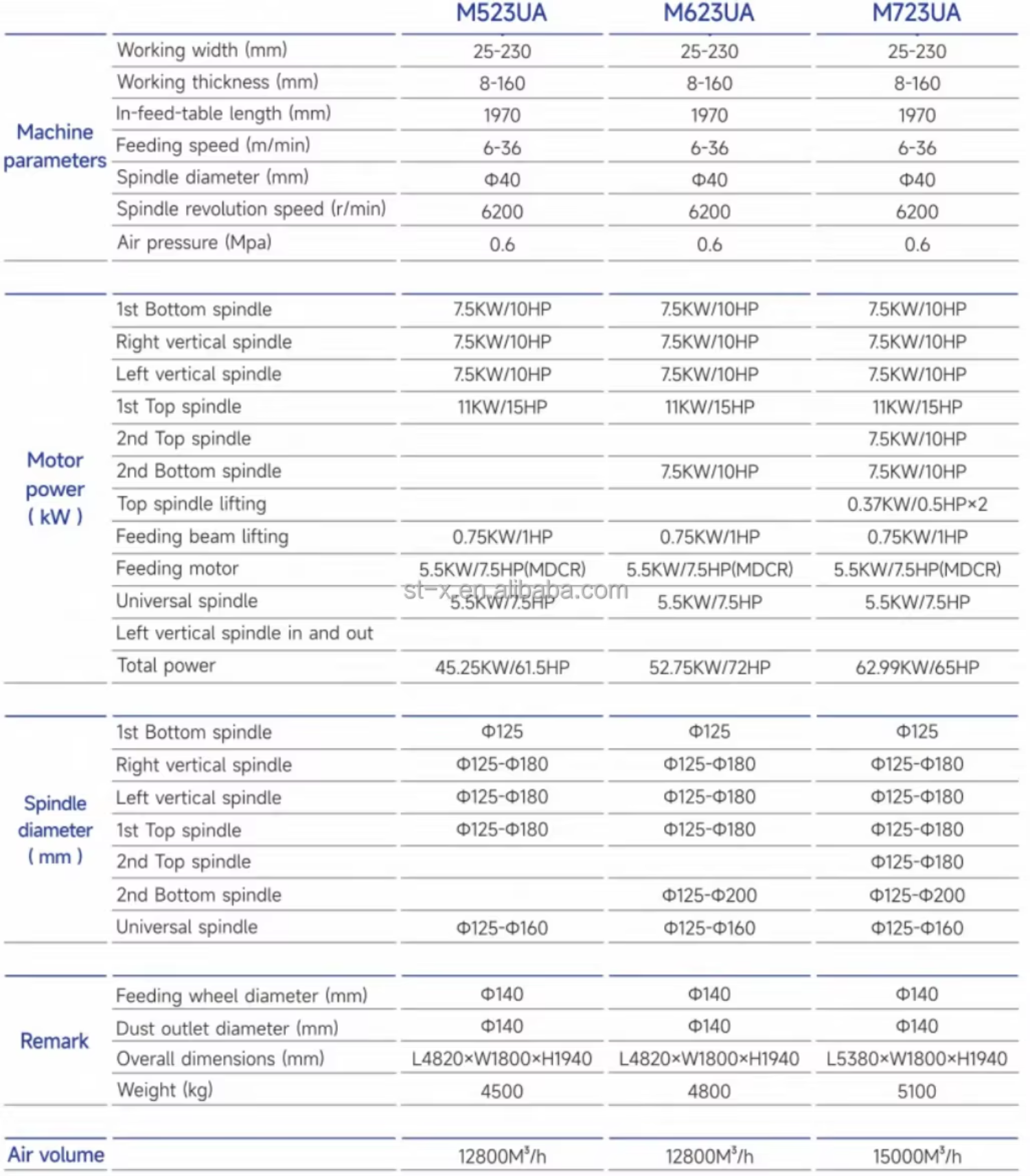

Technical Specifications
Frequently Asked Questions
What are the primary applications for the M623UA Four-Side Moulder?
It is designed for one-time four-sided forming of special-shaped mouldings, wooden flooring, doors, and window frames with heavy-duty cutting capacity.
What is the advantage of the universal shaft?
The universal shaft can be adjusted to any angle or position, allowing for complex machining that traditional vertical or horizontal spindles cannot achieve.
What is the feeding speed range of this machine?
The machine features a variable-frequency feeding system with a standard speed range of 6 to 36 meters per minute.
Can the machine handle short workpieces?
Yes, a short workpiece feeding device is included as part of the standard configuration to ensure smooth transmission of smaller materials.
Are the spindles controlled individually?
Yes, each spindle is equipped with an independent motor start control, allowing operators to switch them on or off based on specific processing needs.
How does the machine manage wood chips and noise?
It utilizes a new dust suction structure that effectively removes wood chips, which minimizes surface dents on the product and helps control operating noise.
