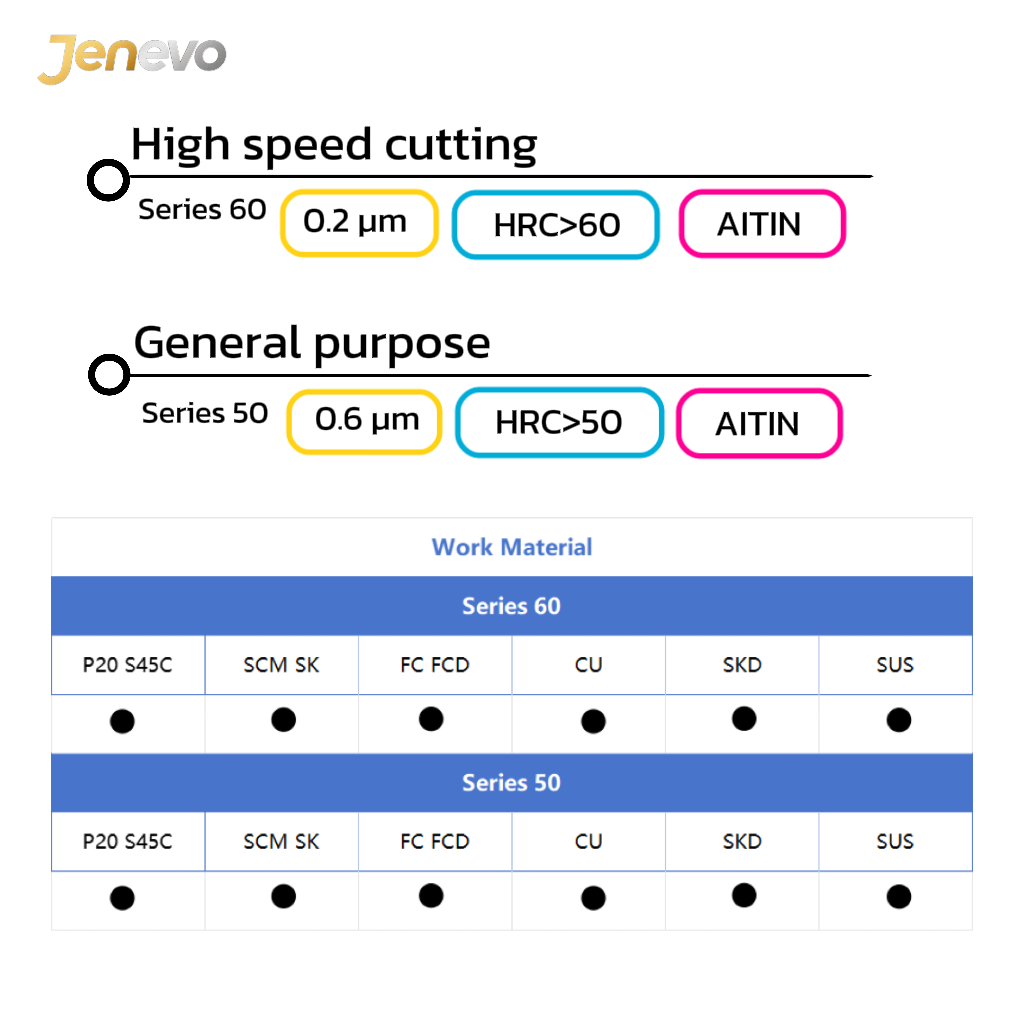

Custom Solid Carbide Coolant Drill Bit 5XD - Z Coating DIN 6537 Standard High Precision Deep Hole Drilling for Metalworking

Product Description

Product Description
Product Description Image

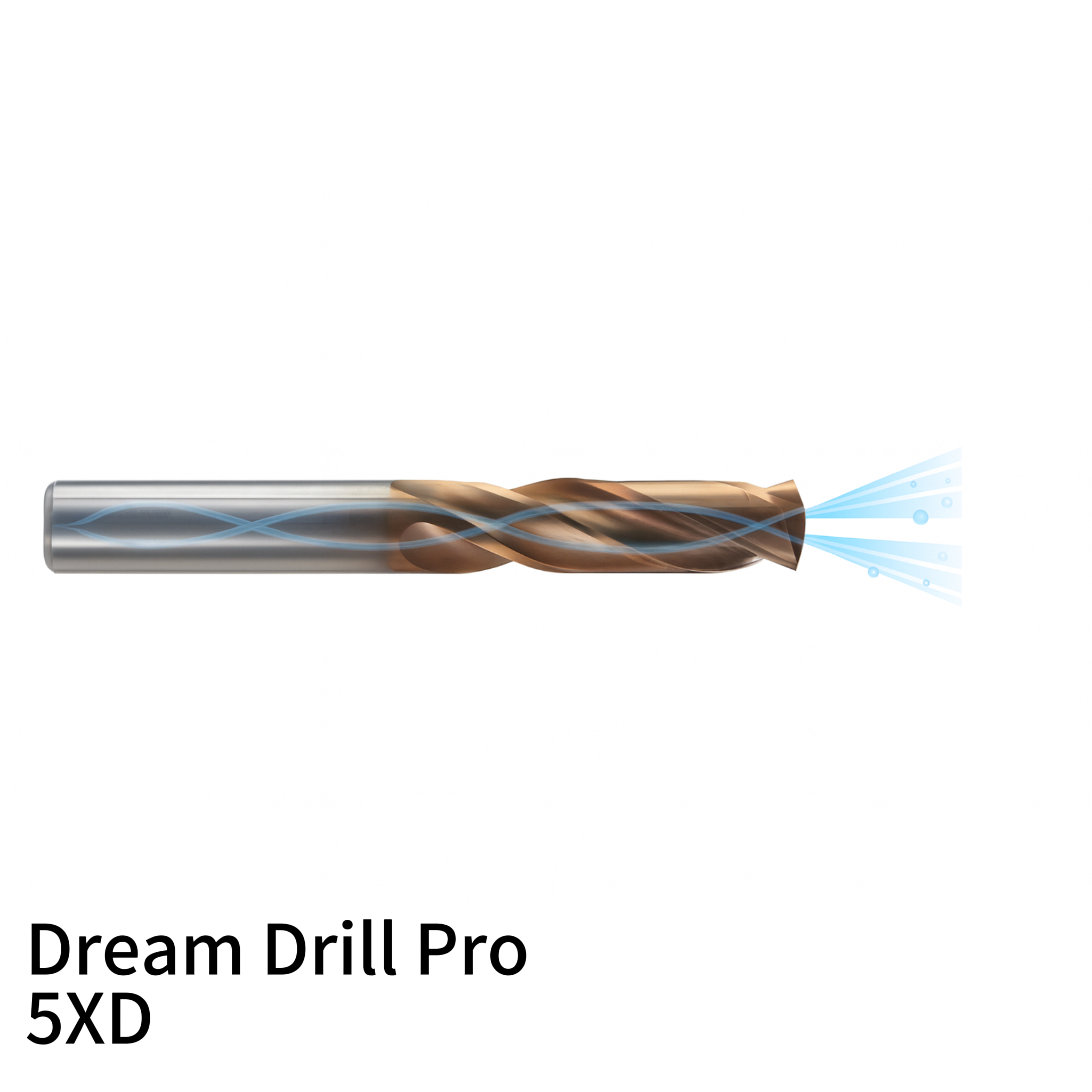

Product Name Custom Solid Carbide Coolant Drill Bit 5XD – Z Coating, DIN 6537 Standard, High Precision Deep Hole Drilling for Metalworking
Material Carbide or custom-make
Coating TiN, TiCN, TiAlN, AlTiN, DLC, CVD Diamond, ZrN, and CrN or custom-make
Customized Service OEM or ODM or OBM
Support Customization R nose, Spial Angle, Blade Diameter, Coating, Handle Length, Material, Blade Length
Application Stainless steel, steel, quenched steel, die steel, alloy steel, cast iron, aluminium, copper, Etc...
MOQ 10 Pieces
Product View 1
Product View 2
Product View 3
Solid carbide, square profile Rougher End Mills, maximizes material removal rates (MRR) and minimizes vibration and chatter.
  • Excellent performance in hardened steels, titanium, Inconel, and high temp alloys
  • Fine pitch for maximized material removal rates (MRR) and minimized vibration or chatter
  • Offered in stub, regular, and long length styles
  • AlTiN coating offers increased wear and heat resistance
  • Center cutting
  • Solid carbide
Rougher End Mills
Our Advantages

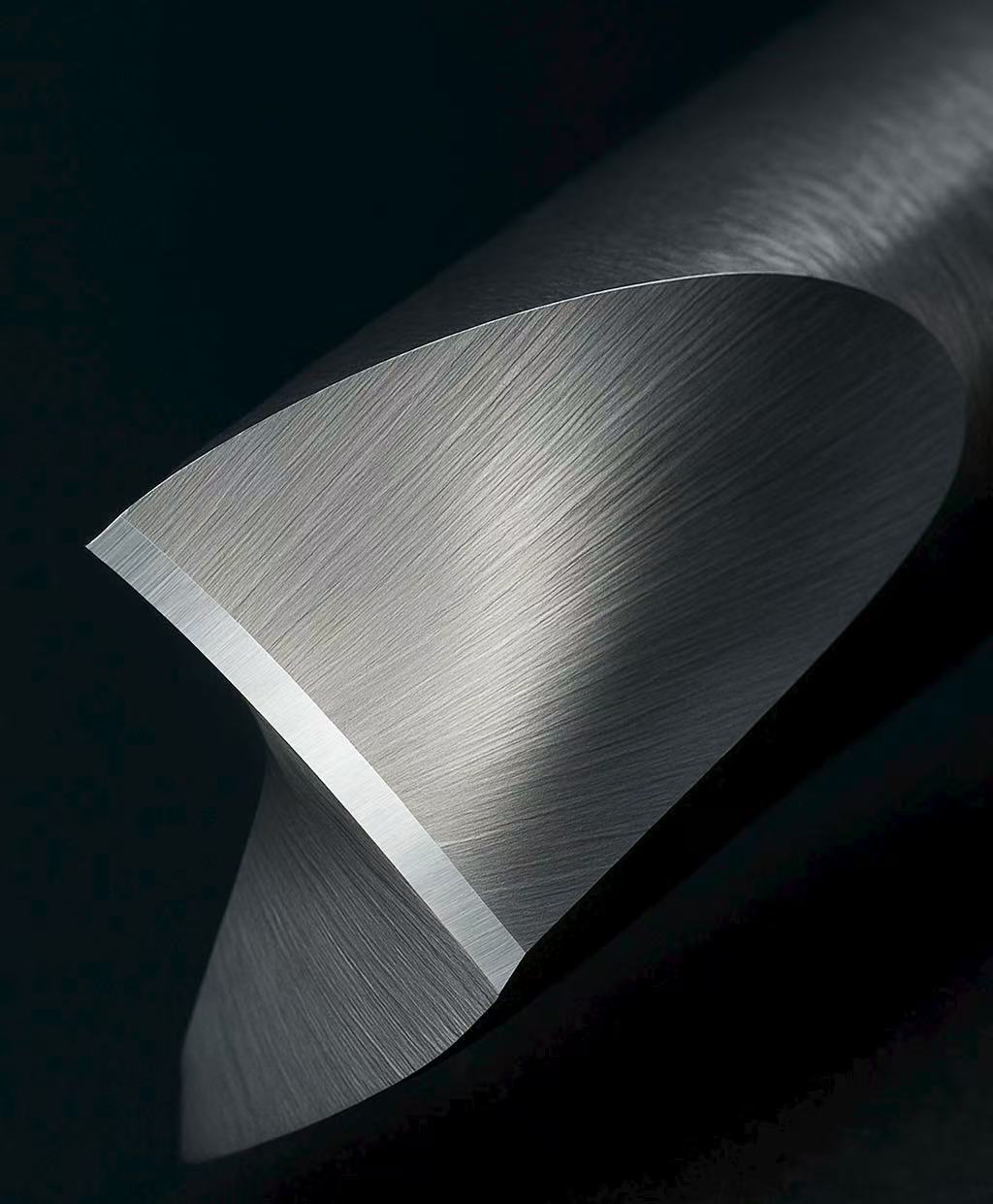

Cutting Edge Strength
Cutting Edge Strength
Our cutting edges feature a mirror-finish grinding effect under 10x magnification and use 0.02mm precision micro-rounding technology. This eliminates microscopic crack found on cutting edges, reducing cutting forces by 15%, and increase edge resistance by 40%. Especially perform perfect in machining stainless steel and hardened materials.

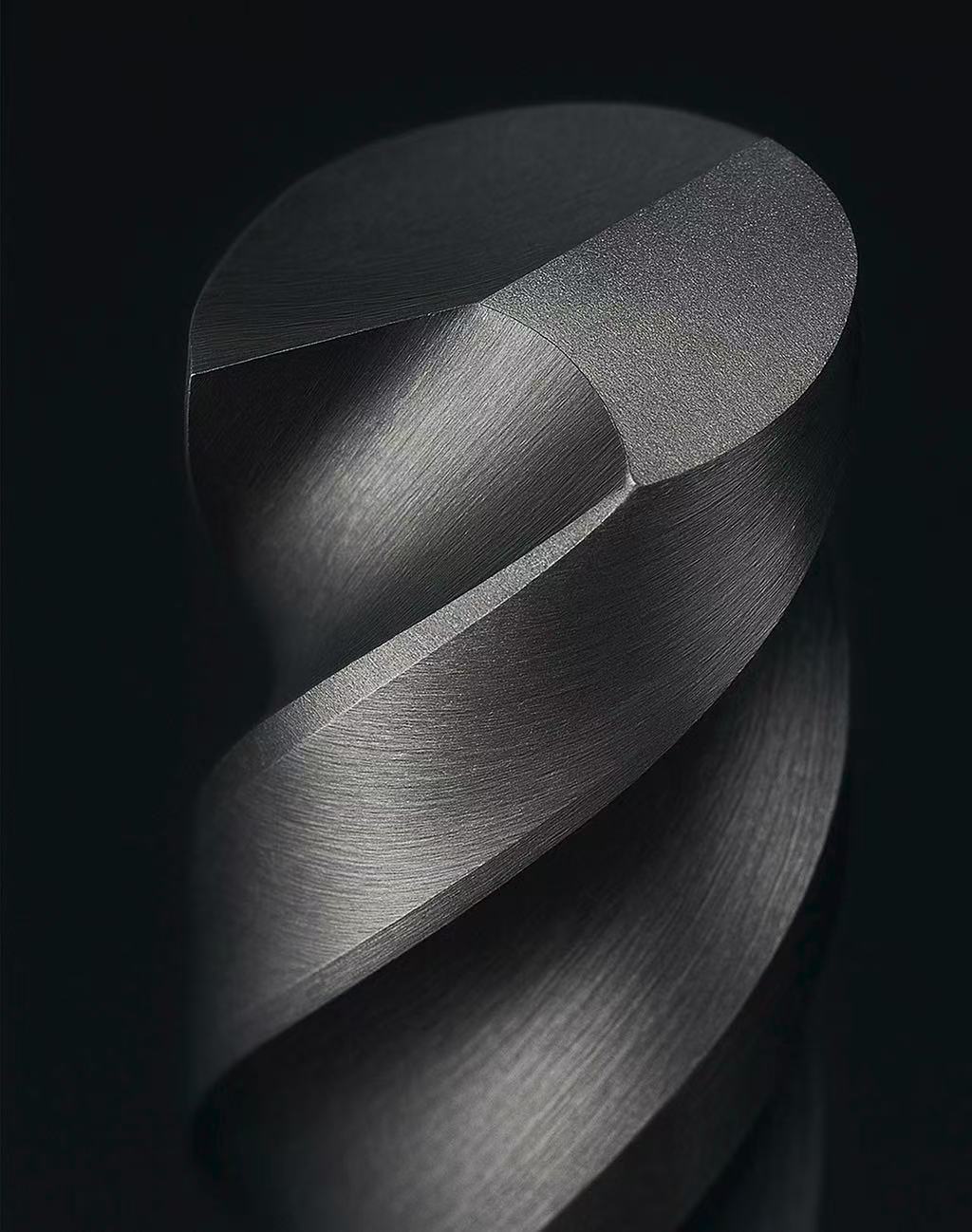

Coating Strength
Coating Strength
Outstanding tool life is longer than normal by 2X more: Our milling cutters use an industrial-grade PVD process to deposit special coatings at a high temperature of 450°C. The SEM shows the coating density is increased by 30% and coating thickness is increased by 0.5µm. This creates a thermal barrier exceeding 900°C. Reduce the tooling weariness by 60% when machining aluminum. Test to run 200+ hours shows no cracking on cutting edges.

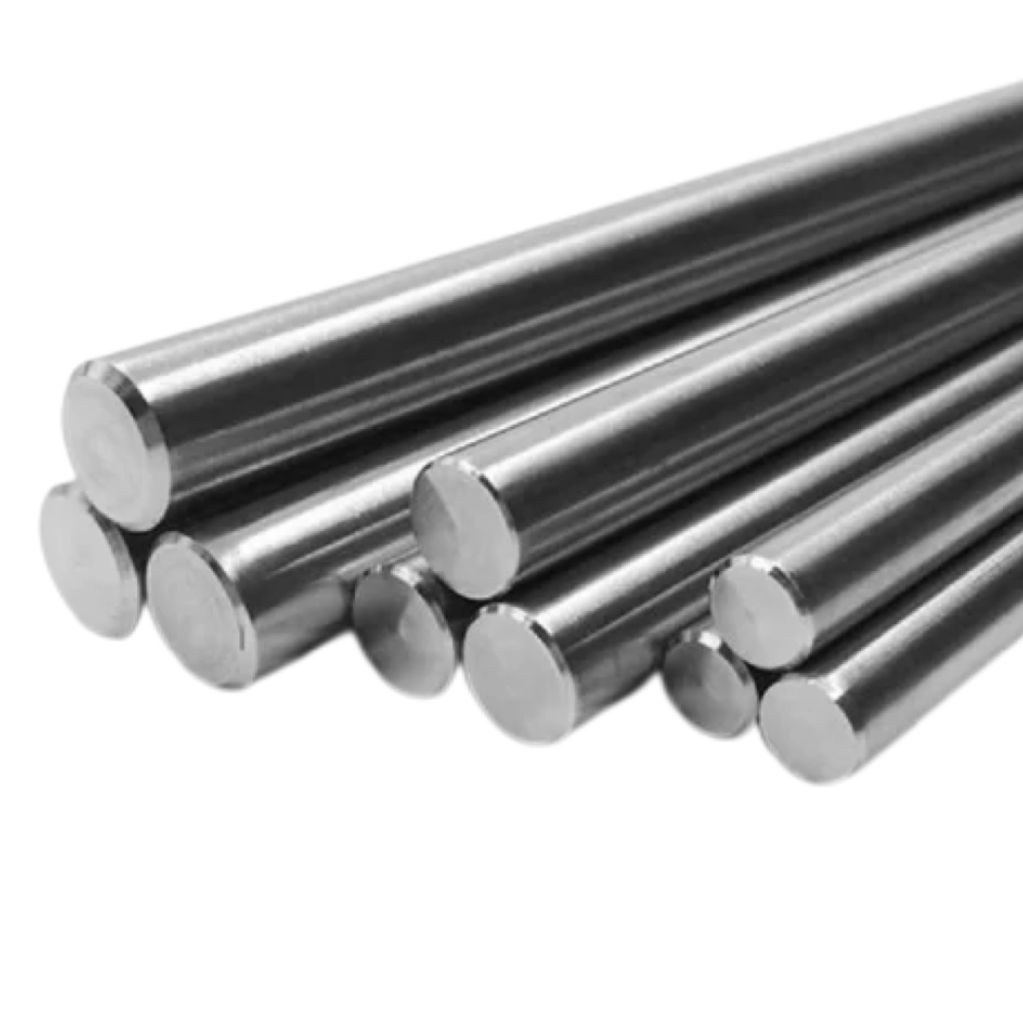

Tooling material strength
Tooling material strength
German-Grade Toughness: Forged from ultra-fine grain (0.5µm) carbide (including 10% cobalt), our substrate boasts TRS (Transverse Rupture Strength) exceeding 4,800 MPa – 25% higher than industry standards. Metallographic analysis reveals zero porosity and uniform grain distribution, enabling aggressive machining of speed at 120m/min without fracture. This is the backbone of predictable 200+ part runs.
Support Customization

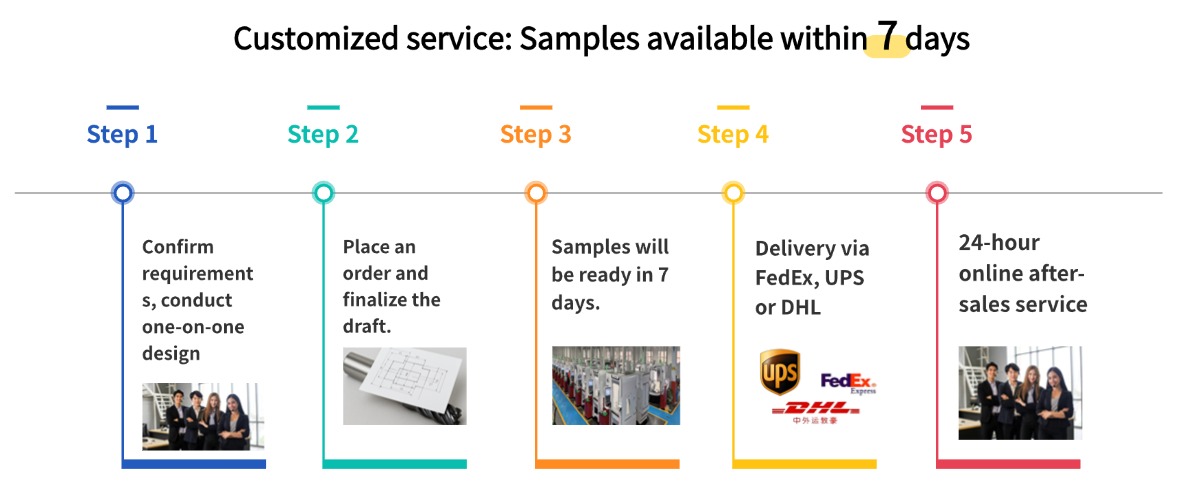

Customization specifications
💡
You can send us your drawings. We have a professional technical team who can customize the products for you!
Customizable R nose, Customizable Spial Angle, Customizable blade diameter, Customizable coating, Customizable handle length, Customizable material, Customizable Blade length

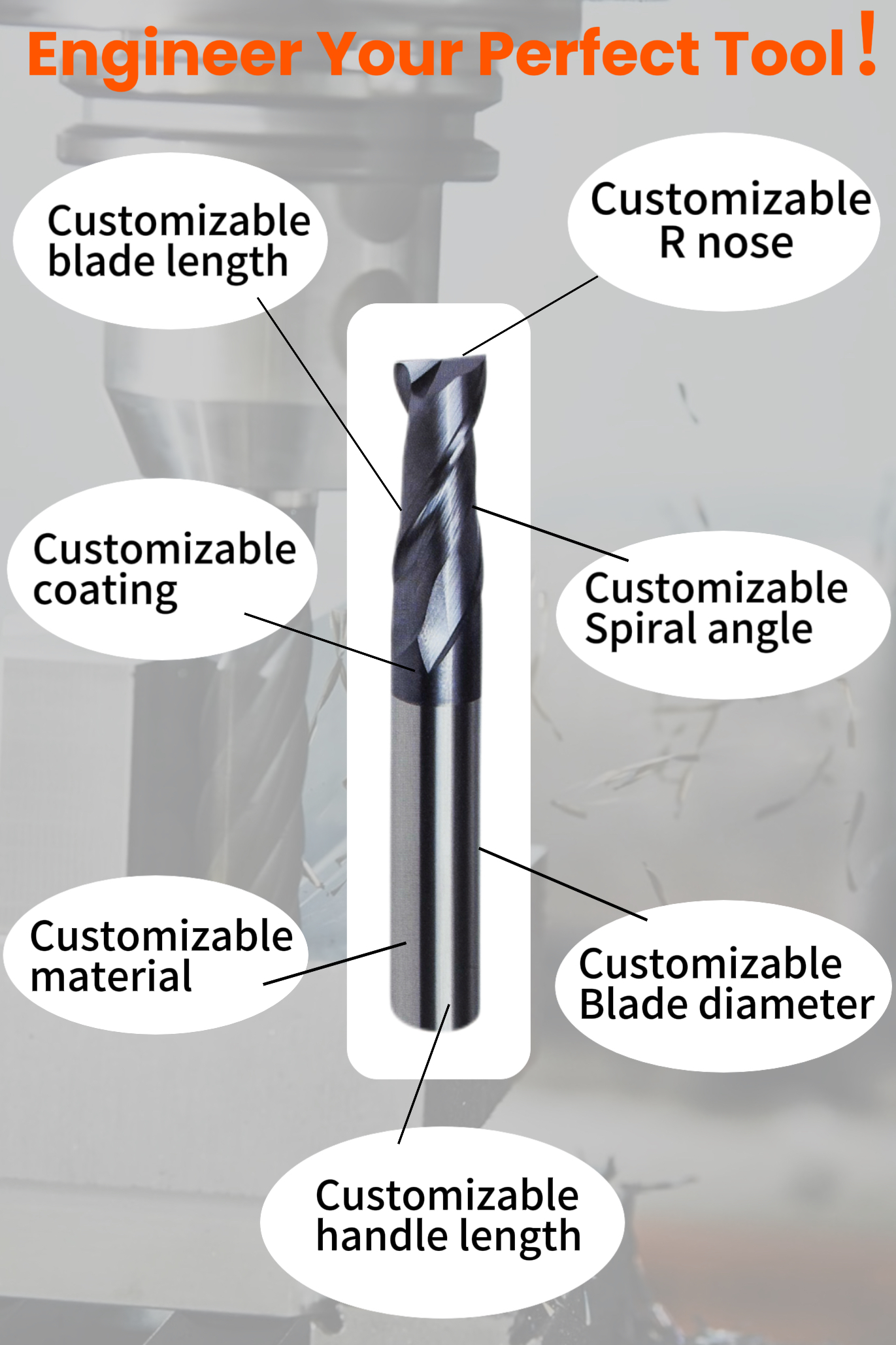

Customization blueprint

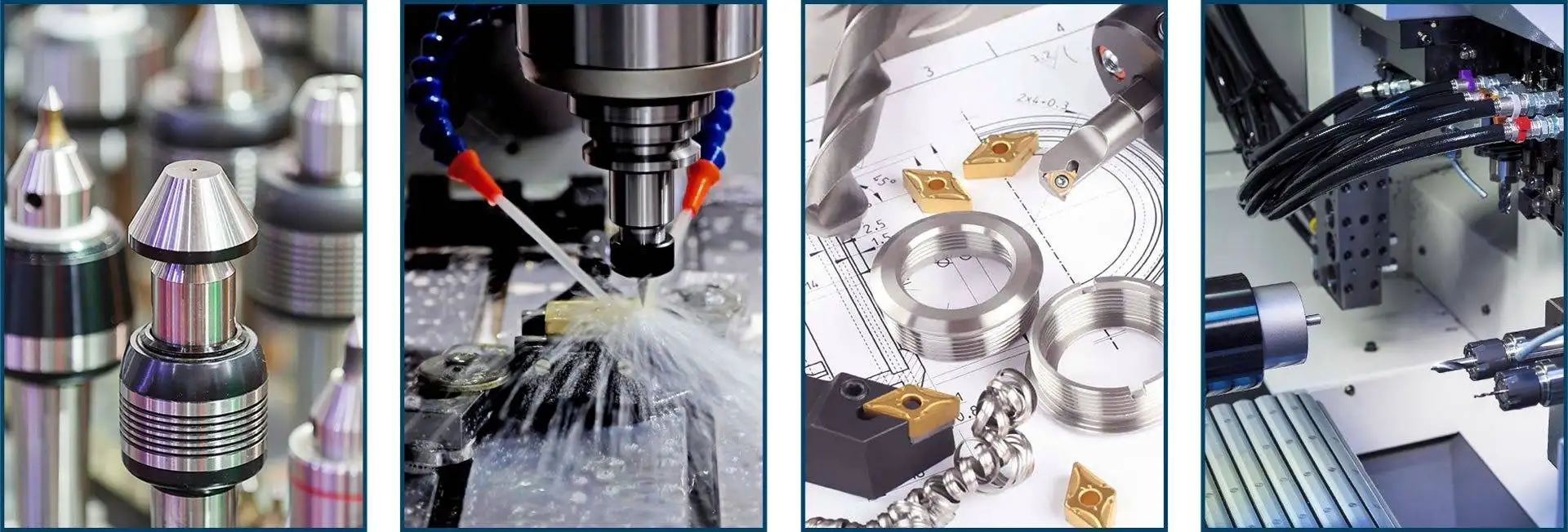

Customized tooling to drawings

(1) Customized toolings to customer drawings

Customized tooling to your special requirements. We have a professional engineering team to design tooling for our customers. We can provide special design to meet your requirements to increase your machining efficiency and reduce your cost. Ask us how!

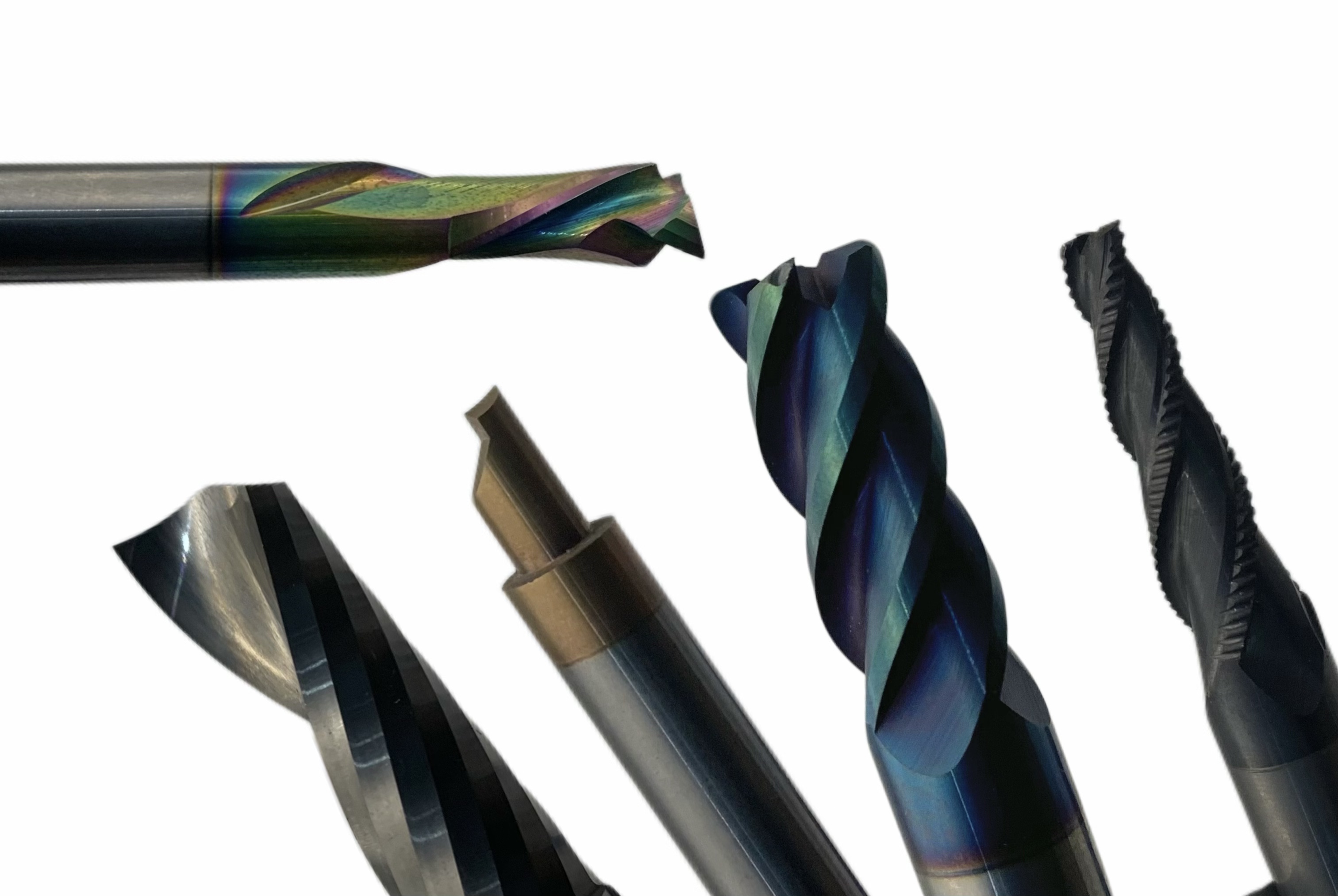

Customized tooling to parts

(2) Customized tooling to customer parts

Design toolings based on your products material. Our engineering team can determine the correct tooling material to machine your products. We can also apply different the coating according to your products.

Customized to your special requirements. We provide special design to meet your requirements to increase your machining efficiency and reduce your cost.
Application
Its applications cover the entire field of industrial manufacturing, including metal cutting, non-metal cutting, aerospace, automotive manufacturing, medical devices, mold manufacturing, energy equipment, micro-processing, high-temperature alloy processing, and composite processing, etc.!
Application 1

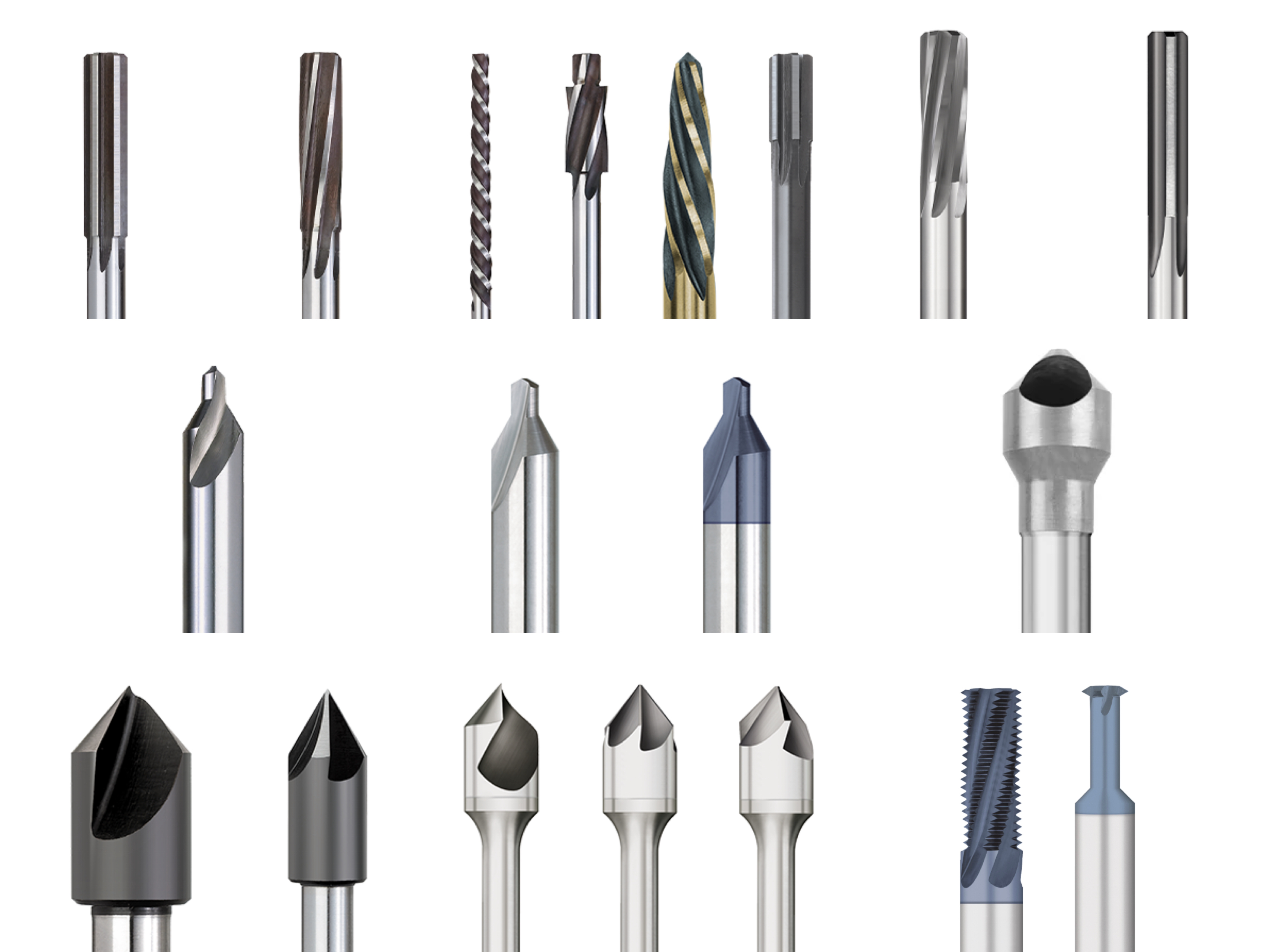

Application 2

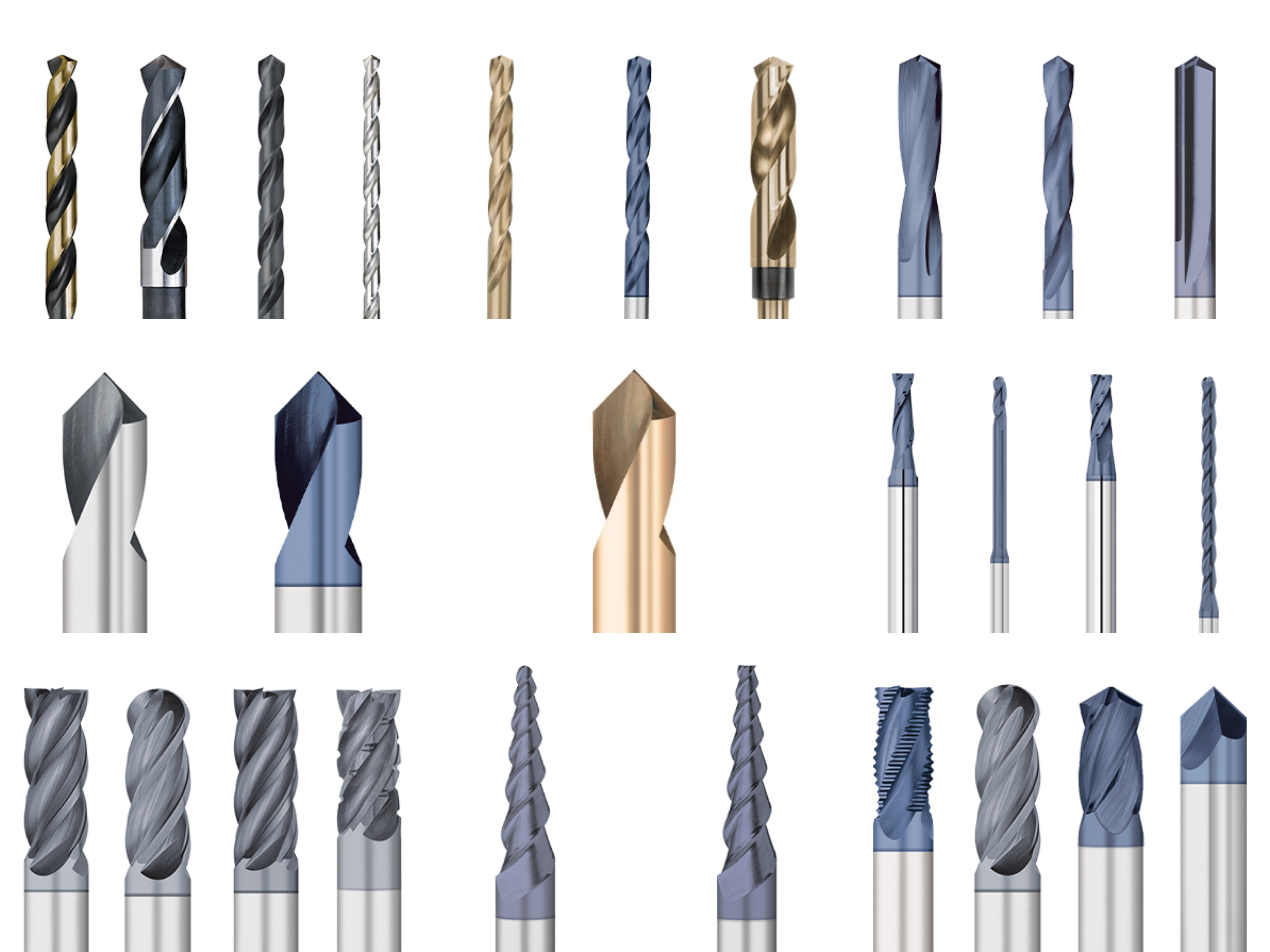

Application 3

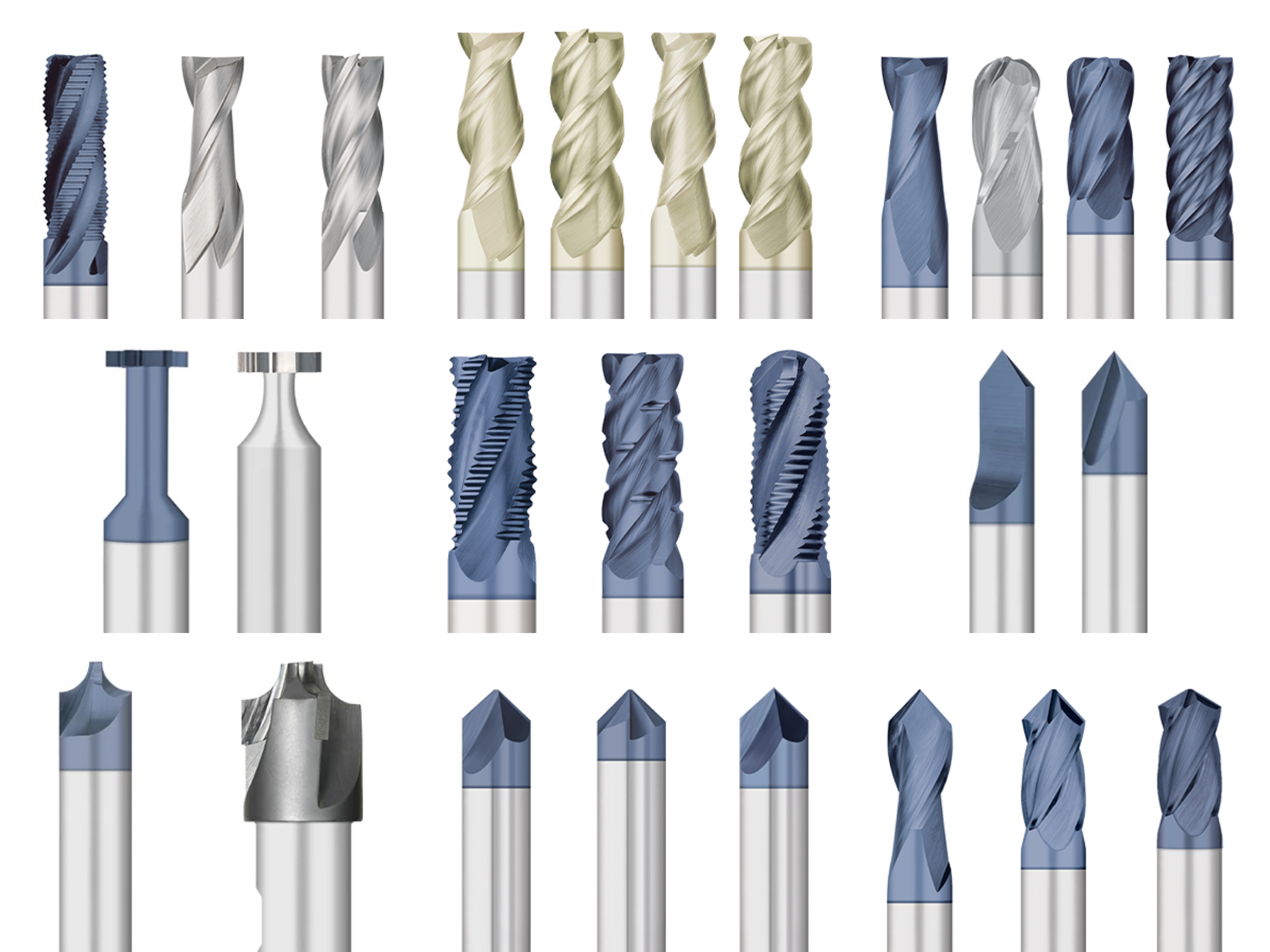

Application 4
Company Profile

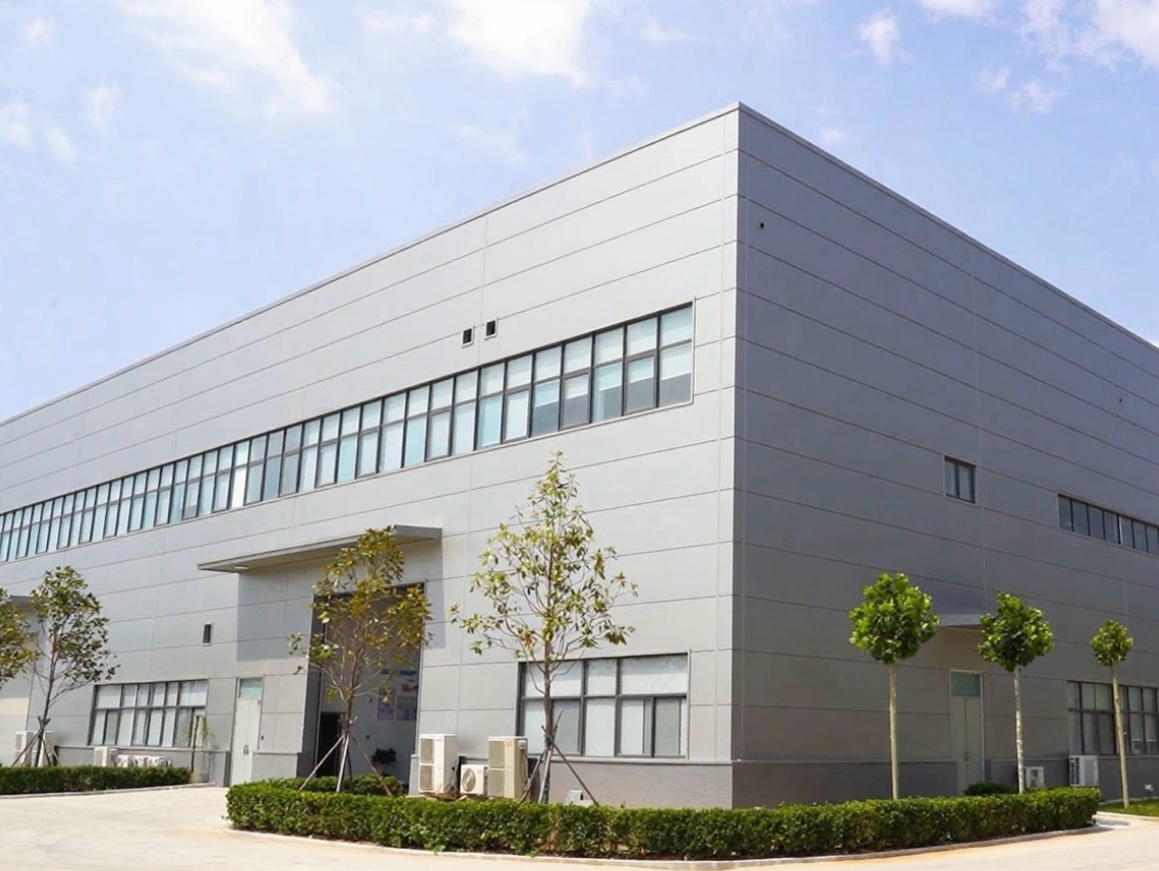

Factory Overview
Precision CNC Tools: Engineered for Excellence, Trusted Worldwide

For over a decade, we've pioneered precision manufacturing solutions as a dedicated CNC toolmaker. Since 2014, we’ve exported 5 million+ high-precision cutting tools, fixtures, and custom modules to 40+ countries. All products are ISO 9001 certified and comply with EU CE & North American CSA safety standards.

Your Competitive Edge Delivered:
Breakthrough Durability: Proprietary ultra-hard coating technology extends tool life by 300% - slashing your per-unit machining costs.
Industry-Tailored Solutions: 200+ specialized applications mastered: From aerospace titanium alloys and automotive mass production to medical device micro-engraving.
Zero-Compromise Quality: 99.98% defect-free rate ensured by full-process control: Raw material spectrometry - Final 3D optical scanning.

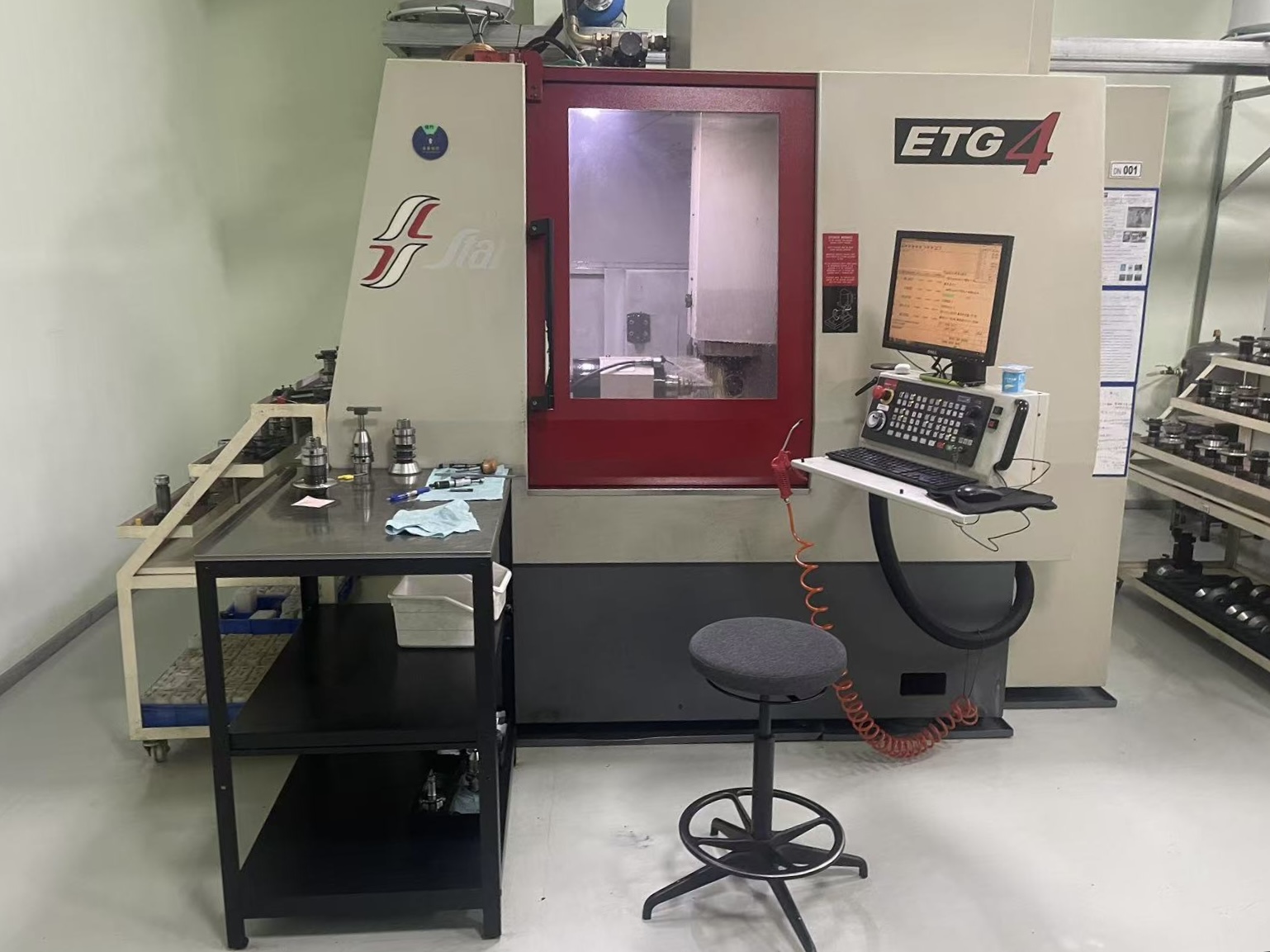

Work Area 1
Work Area 1

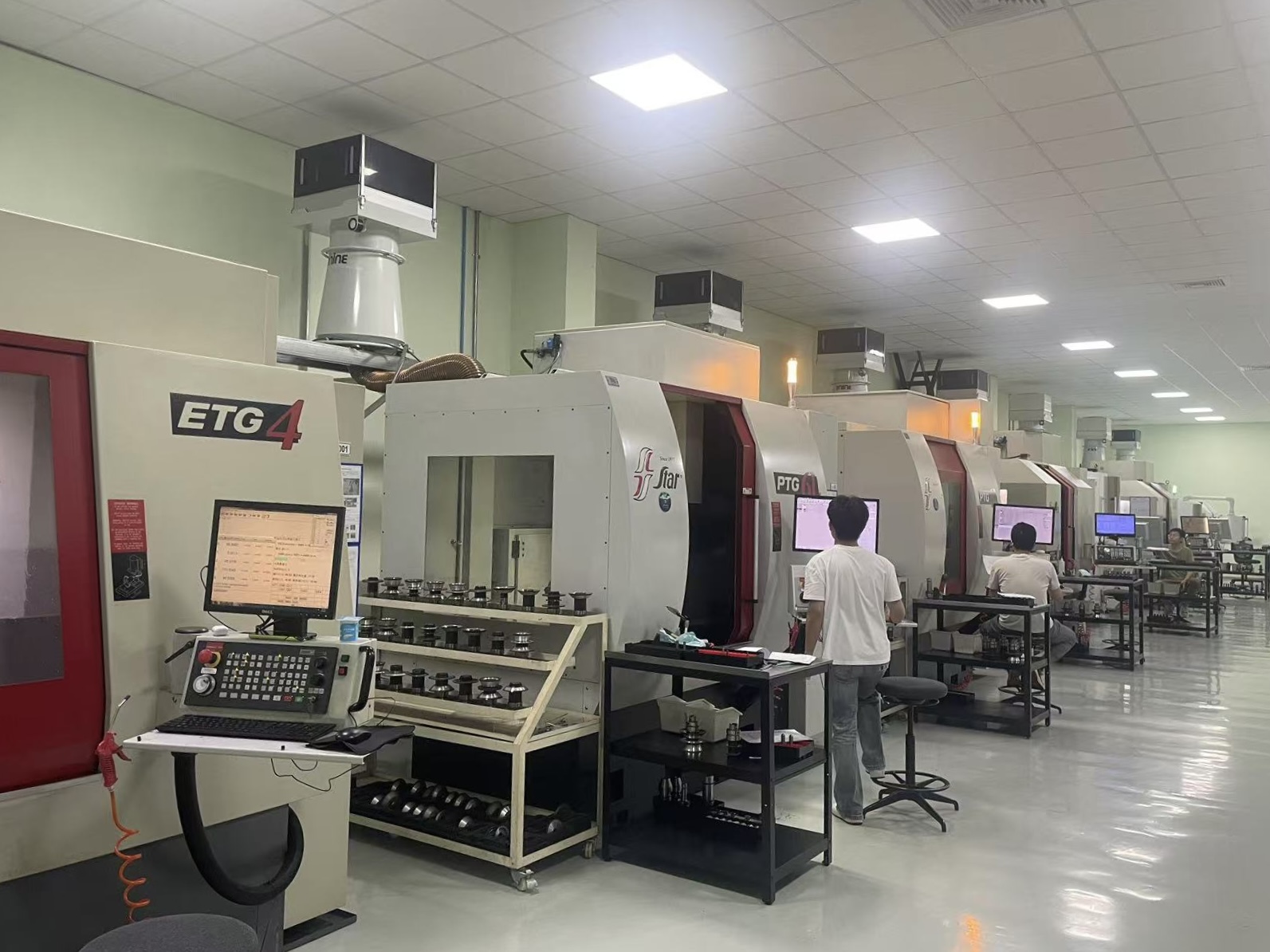

Work Area 2
Work Area 2

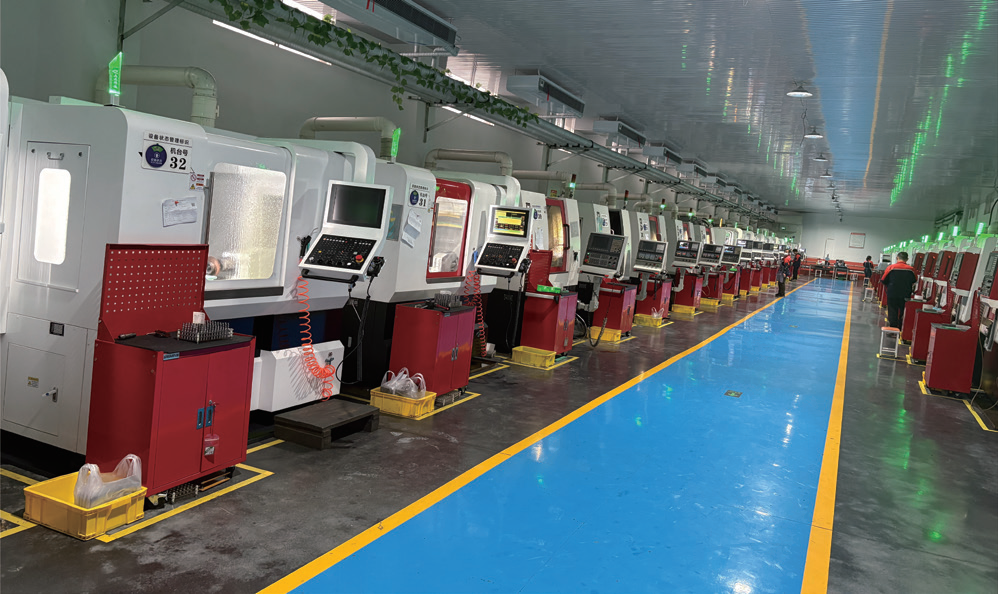

Work Area 3
Work Area 3

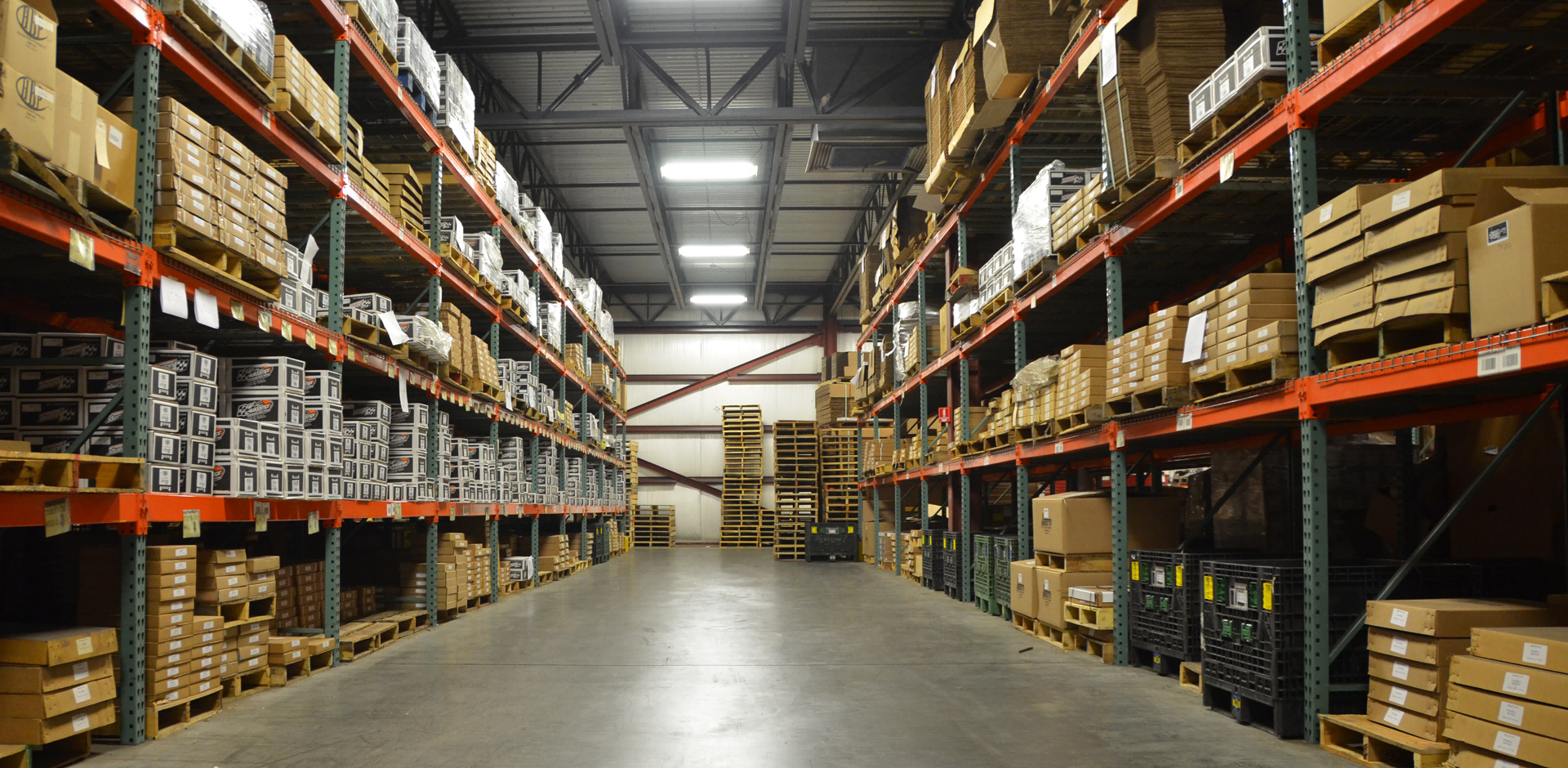

Warehouse No. 1
Warehouse No. 1

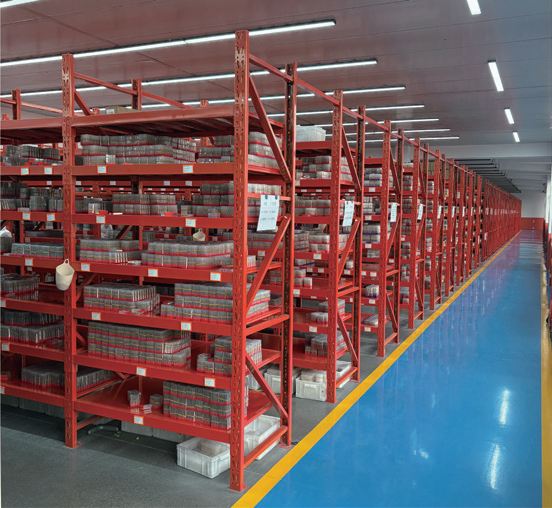

Warehouse No. 2
Warehouse No. 2

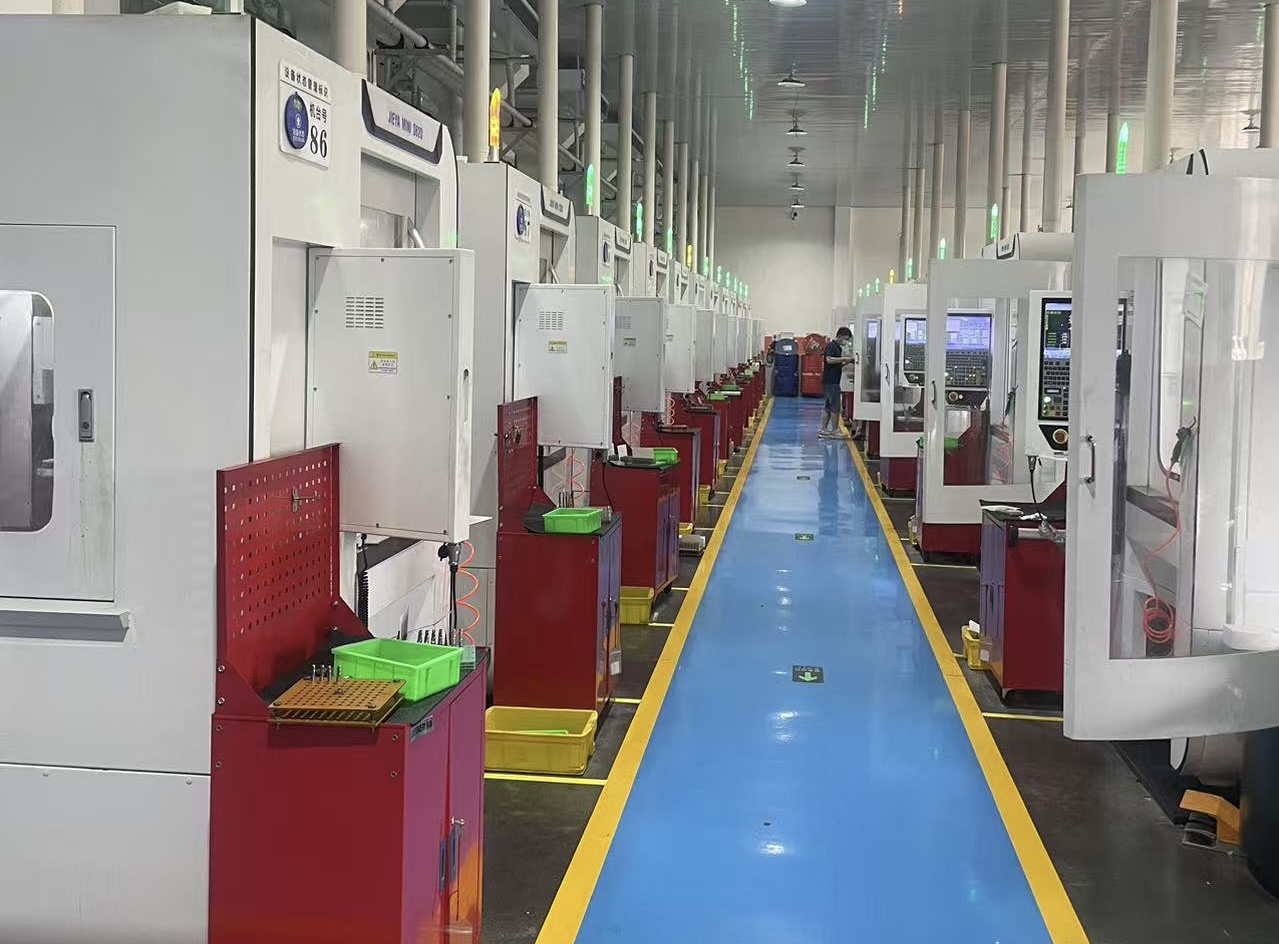

Factory Environment 1

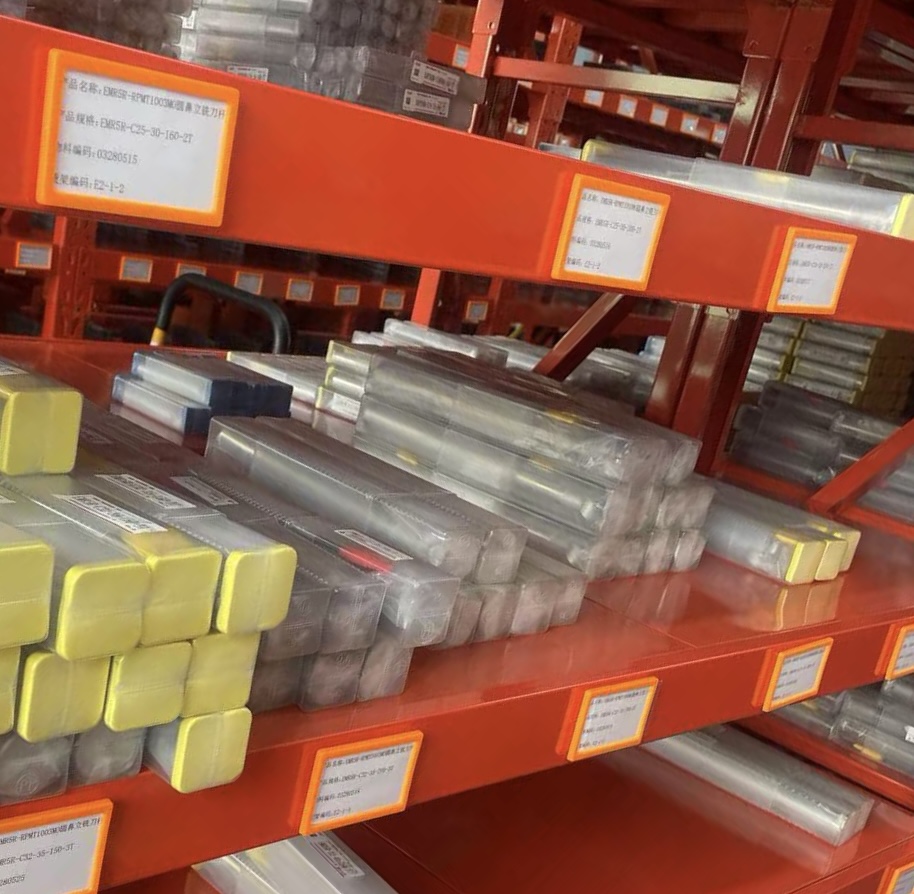

Factory Environment 2

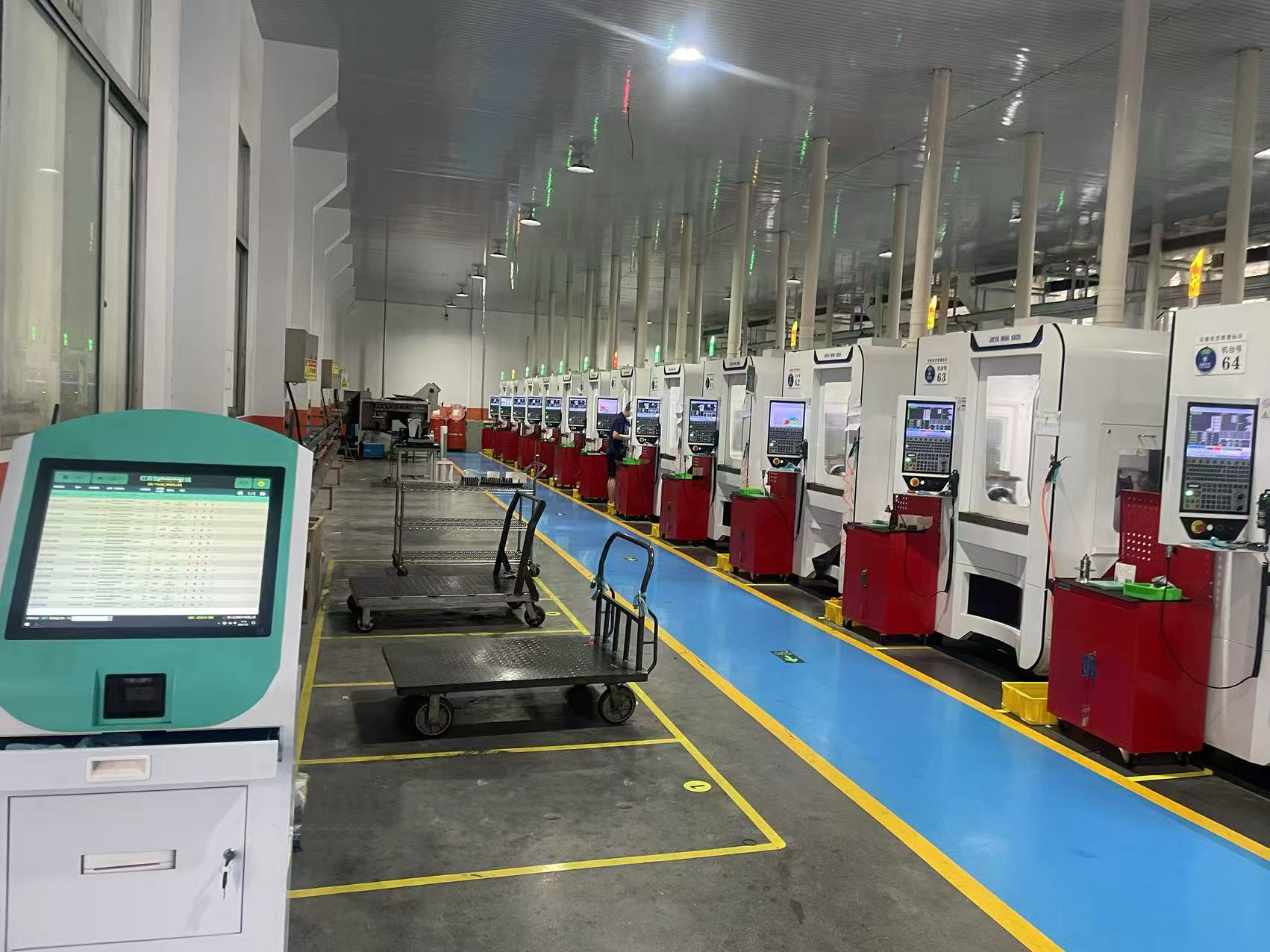

Factory Environment 3
Production equipment & technical team
Equipped with world-class ZOLLER inspection systems, our factory delivers cutting tools with unparalleled precision. Every product is tested to perfection, ensuring top performance and reliability for your most demanding machining needs.

With ZOLLER high-precision inspection machines, we guarantee every tool meets the strictest quality standards. Partner with us for accuracy, consistency, and performance that keep your production running flawlessly.

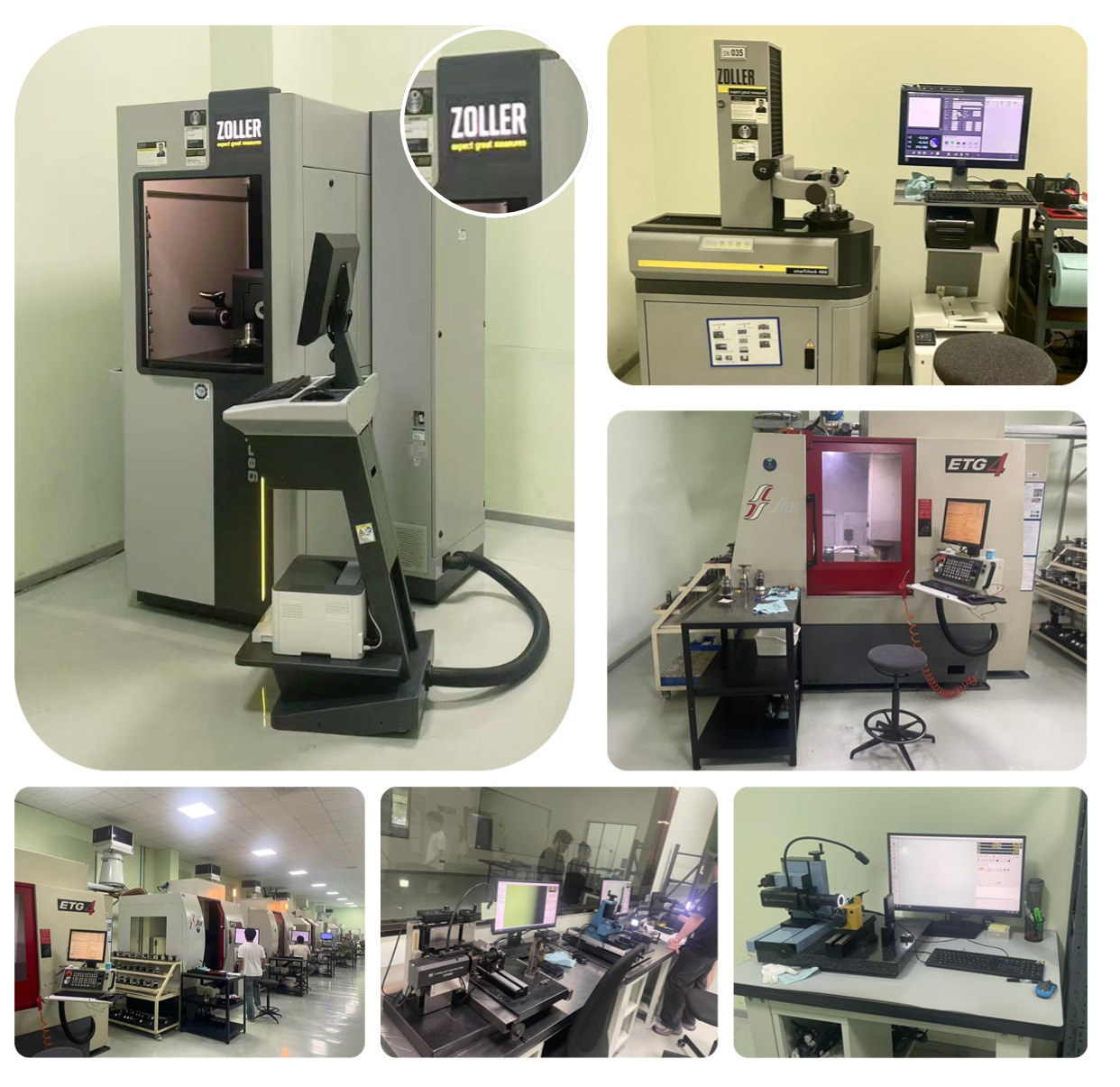

ZOLLER Inspection Machine
Certifications
Our company holds product quality certificates, CE certificates and ISO9001 certificates. Each product meets the standards!
Quality Certificates
FAQ
Are you a trading company or a manufacturer?
We are a professional manufacturer! We have a 10-year experienced technical team that can solve any product problems.
Is free delivery service available?
Free samples are provided!
Can you handle custom-made products?
All of our products can be customized.
What is your minimum order quantity?
The minimum order quantity for each product is 10 pieces.
Do you accept trial orders?
Of course we do. If your order quantity is large enough, we are willing to offer the most favorable price.
