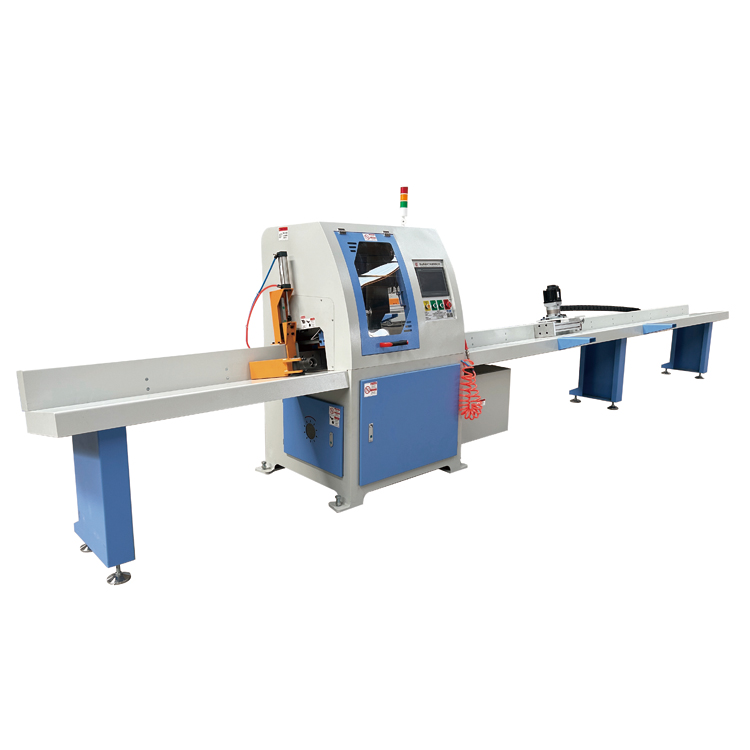

Product Overview
Features at a Glance

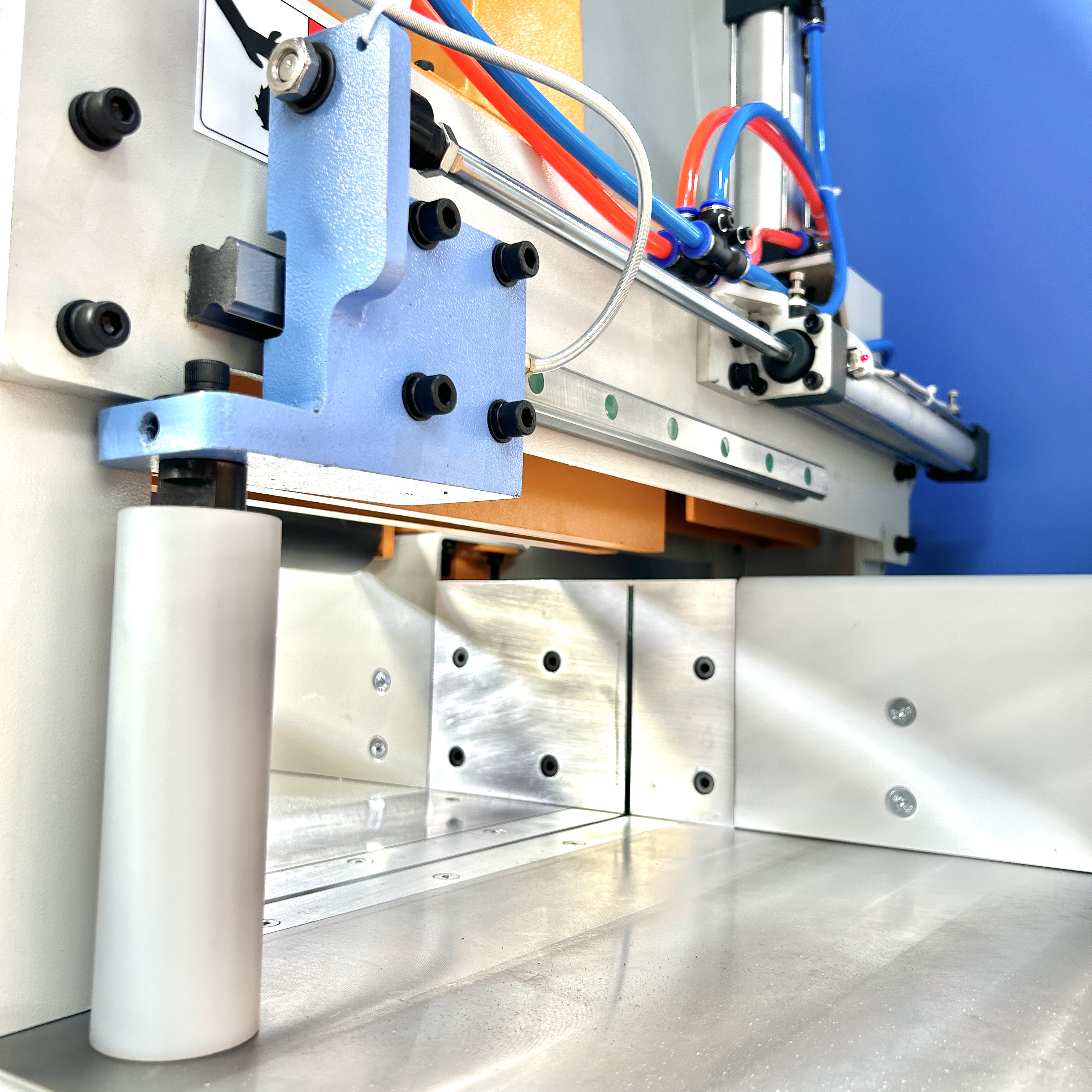

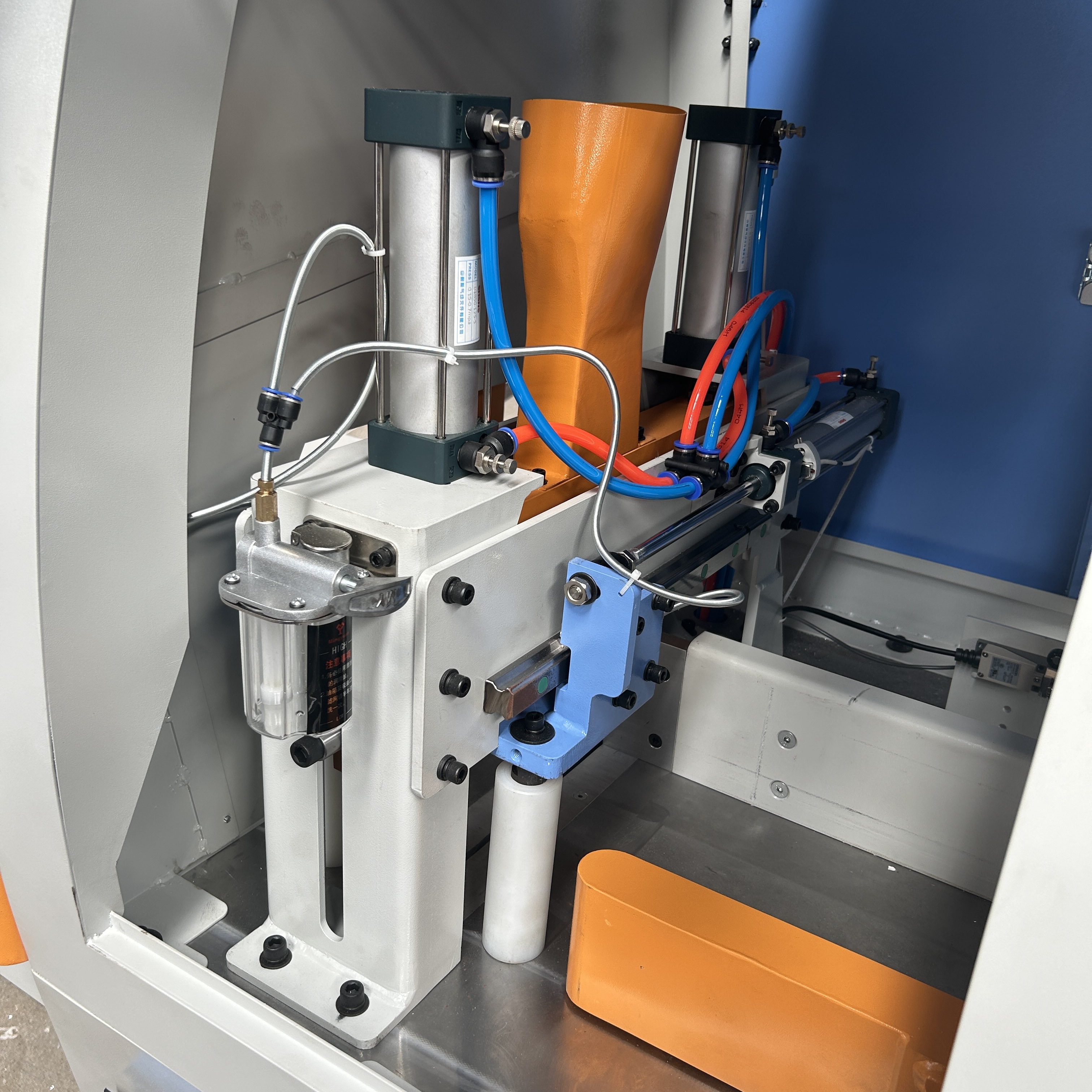

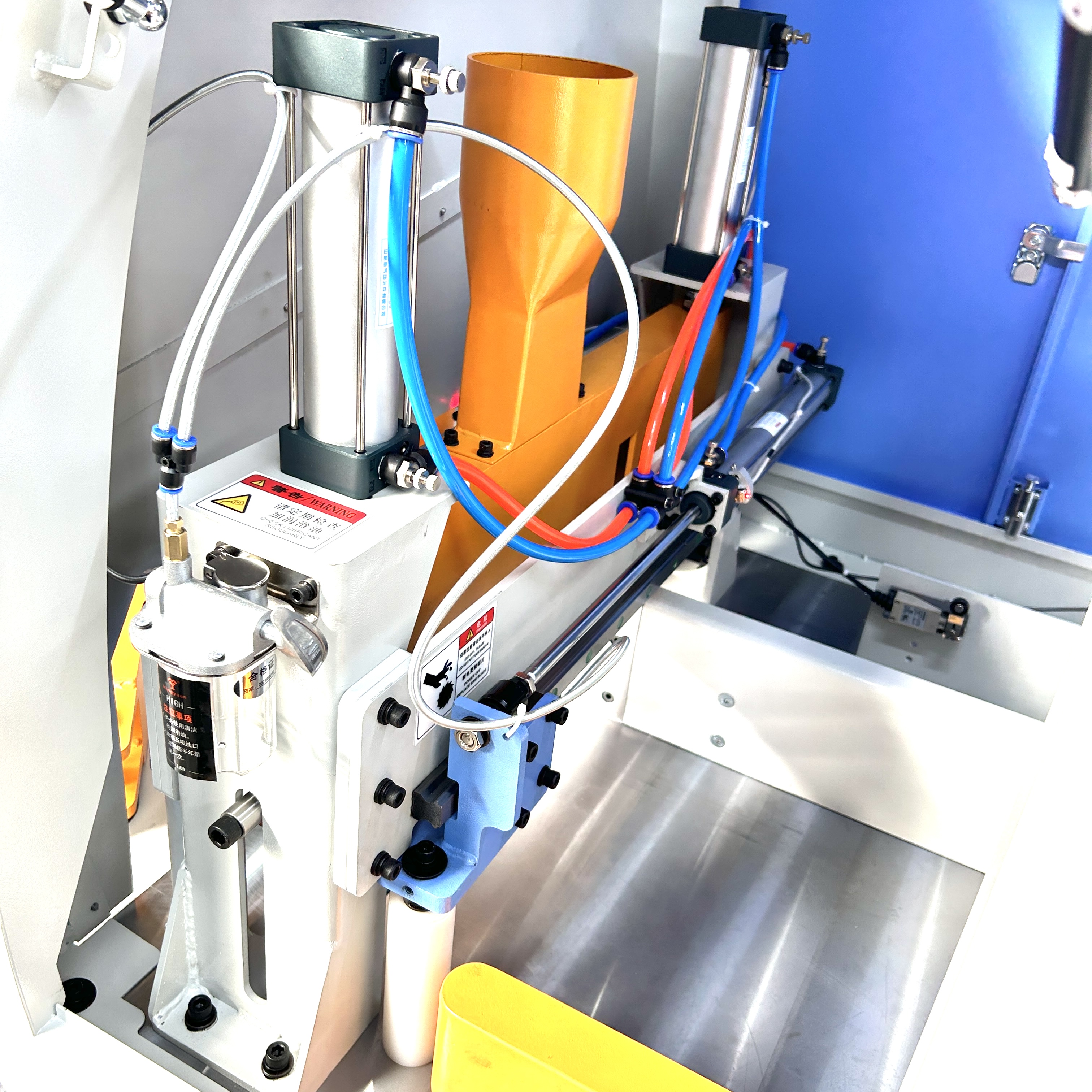

The upper end is equipped with a pressing device, and both the feeding and discharging ends are equipped with pressing rollers to achieve all-round pressing and ensure stable sawing.

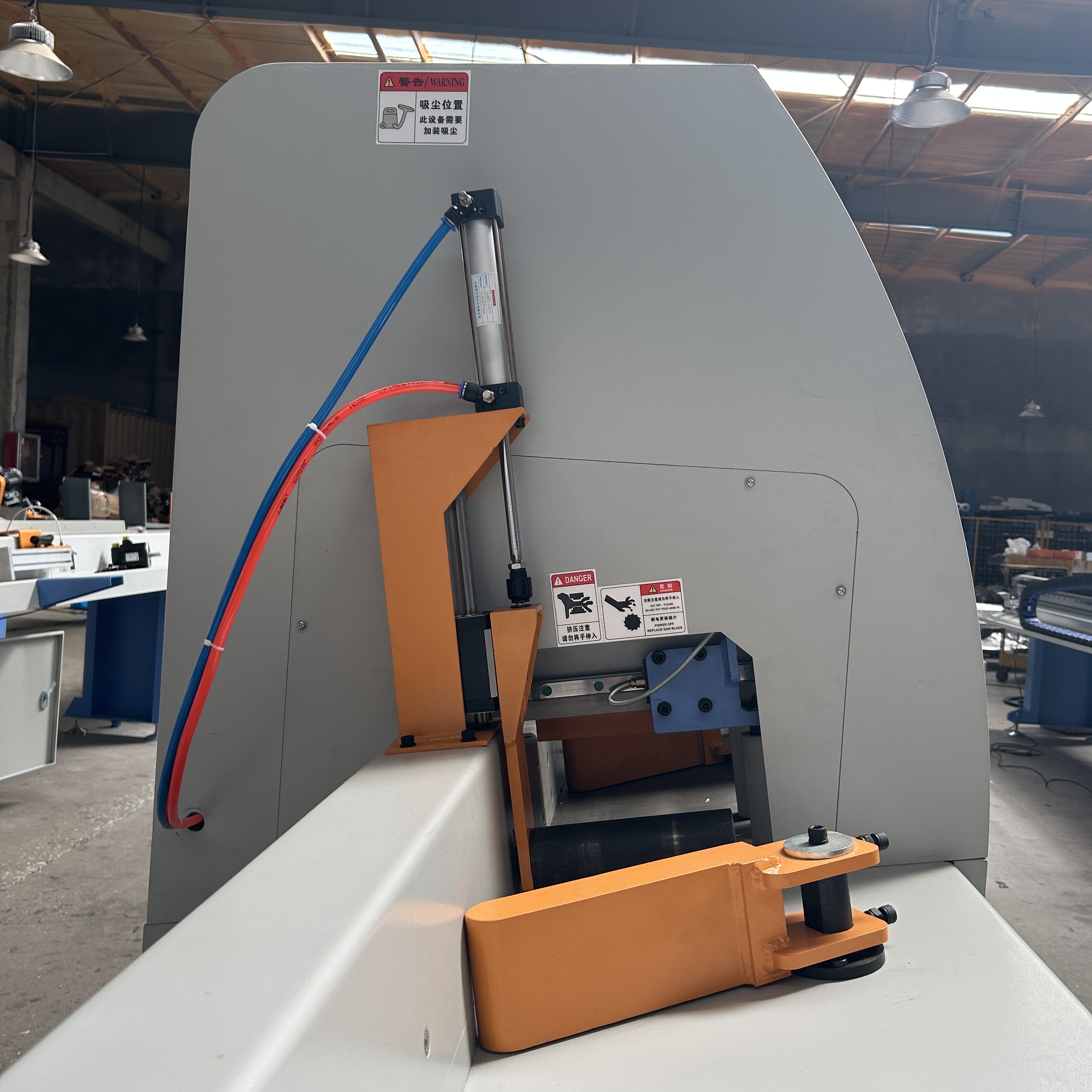

Add an upper pressing roller at the discharge end to ensure stable sawing accuracy.

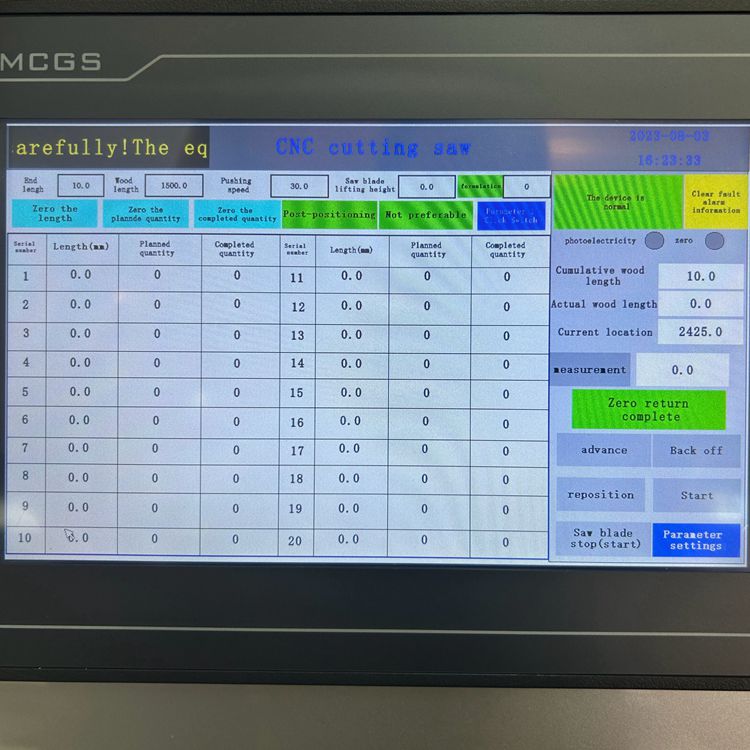

Simply input the size on the touch screen, intelligently calculate the fixed length sawing, and the same raw material can be sawed into up to 40 different arbitrary sizes.

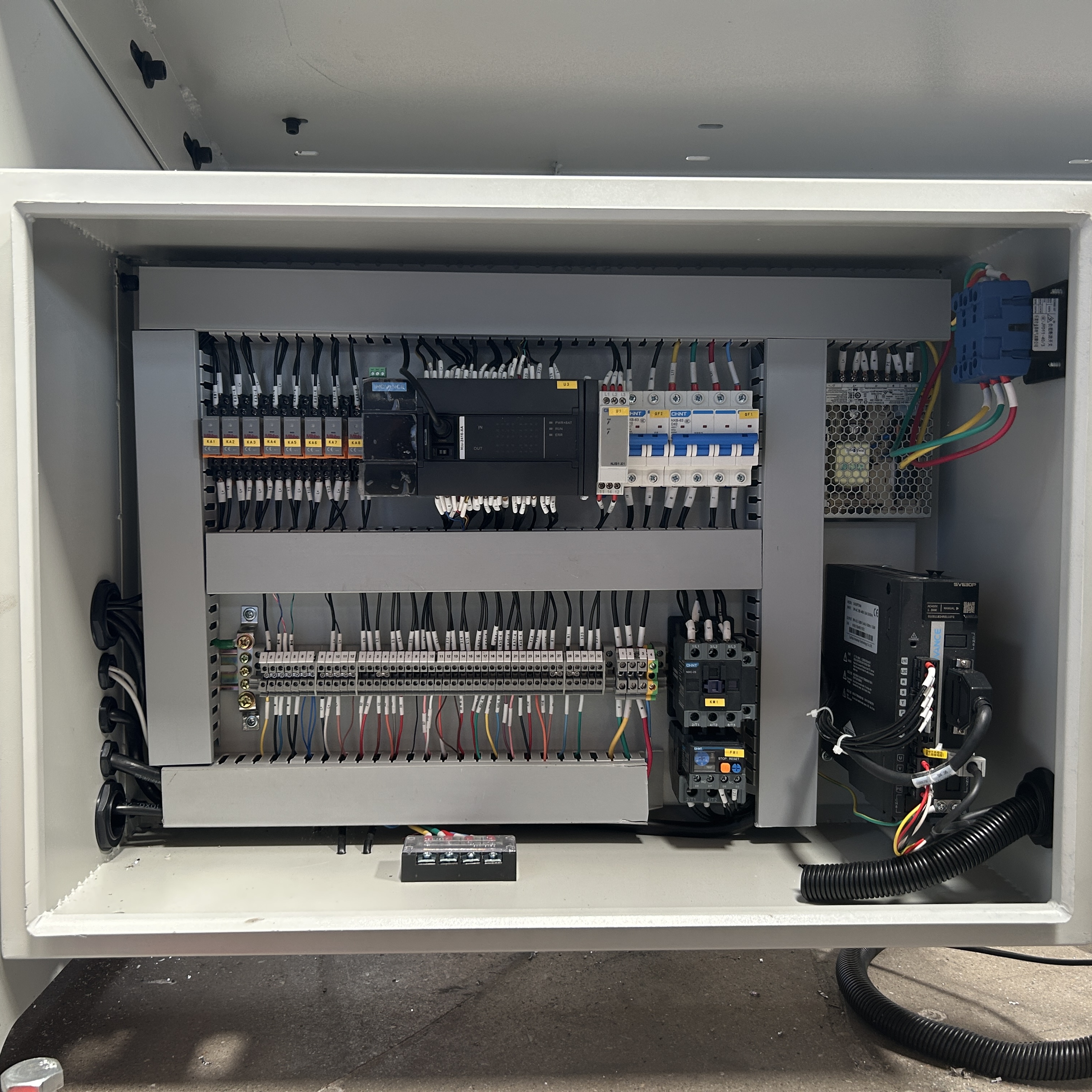

Adopting high-quality electrical appliances and PLCs, with diverse functions and stable performance.

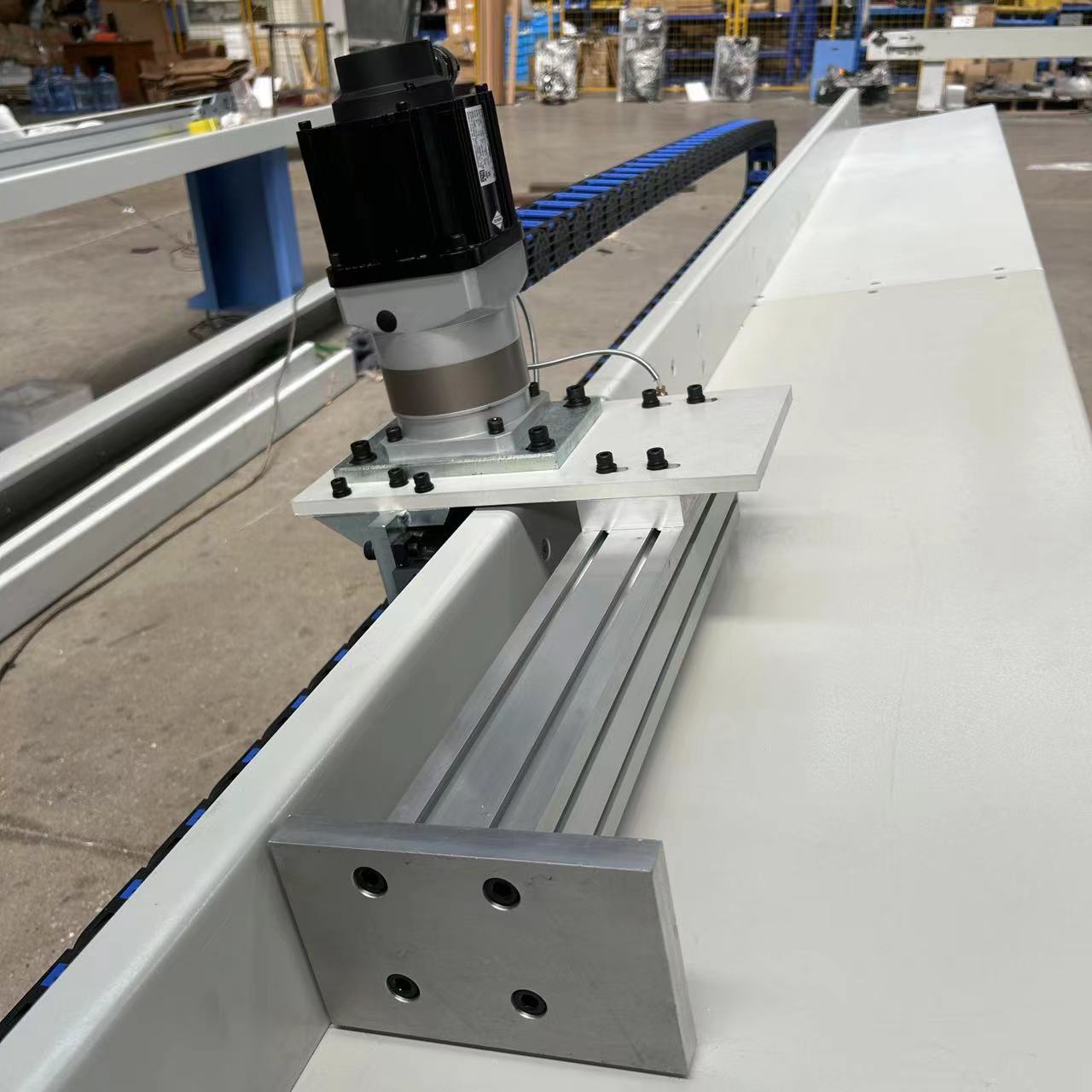

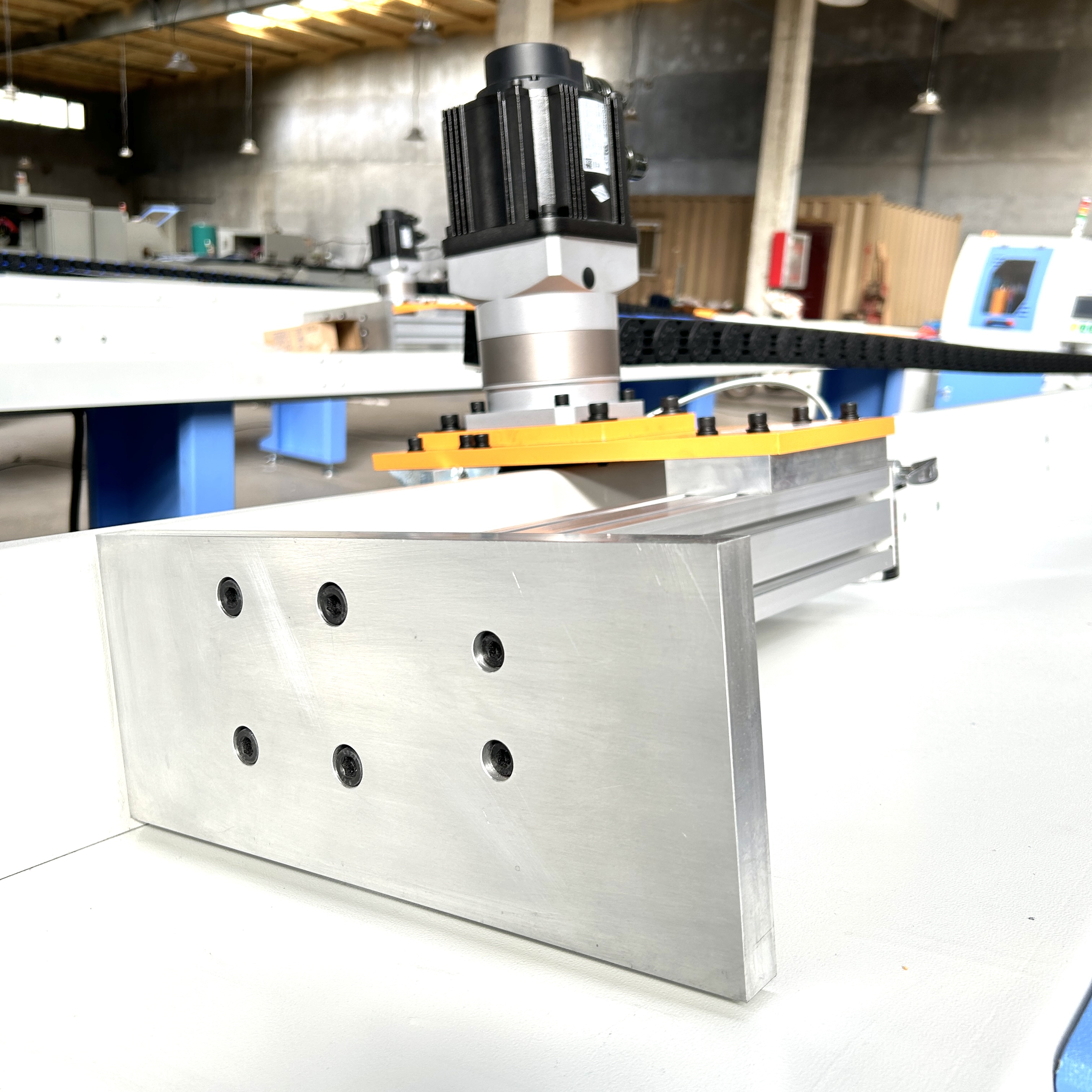

Adopting gear and rack cooperation, the servo motor drives the reducer to push wood, which is durable and improves the pushing accuracy.

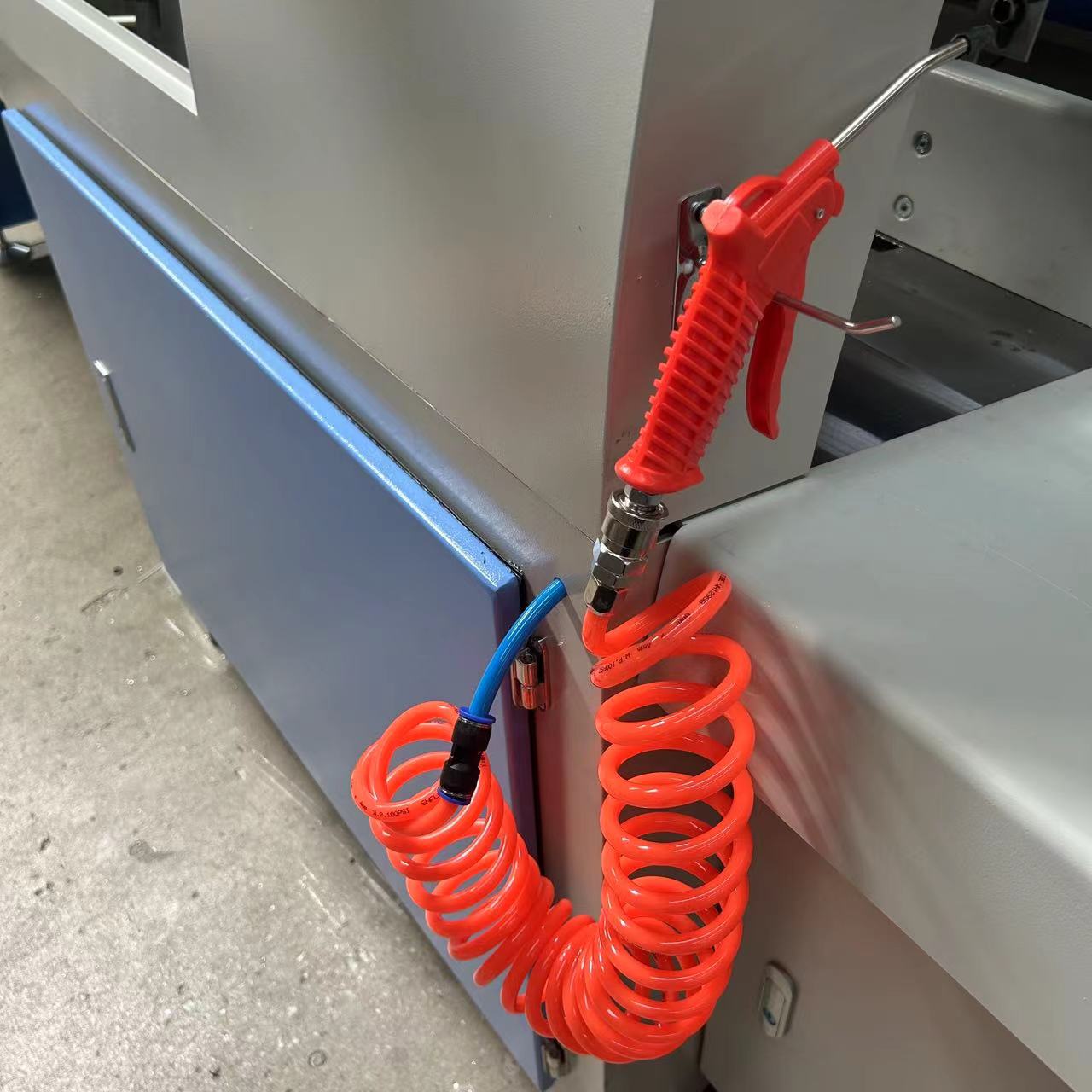

Equipped with a dust blowing air gun, it is convenient to clean wood slag and dust at any time.
Product Specifications
| Model |
BC-450 |
BCC-450 |
BC-550 |
BCC-550 |
| Feed pushing servo motor |
0.75kw |
1.3kw |
0.75kw |
1.3kw |
| Saw blade type |
450*3.6*3.0*100T |
450*3.6*3.0*100T |
550*4.8*4.6*120T |
550*4.8*4.6*120T |
| Sawing size |
200*120(mm) |
200*120(mm) |
300*150(mm) |
300*150(mm) |
| Sawing accuracy |
±1mm |
±0.3mm |
±1mm |
±0.3mm |
| Pushing conveyor mode |
Timing belt |
Rack and pinion |
Timing belt |
Rack and pinion |
| Saw blade motor |
5.5kw |
5.5kw |
7.5kw |
7.5kw |
| Main engine size(mm) |
1000*900*1650 |
1000*900*1650 |
1100*1000*1700 |
1100*1000*1700 |
| Feed platform length |
3m/5m/7m (Optional) |
| Saw blade speed |
3060r/min |
| Feeding speed |
0-60m/min |
| Voltage |
380v 50hz 3phase |

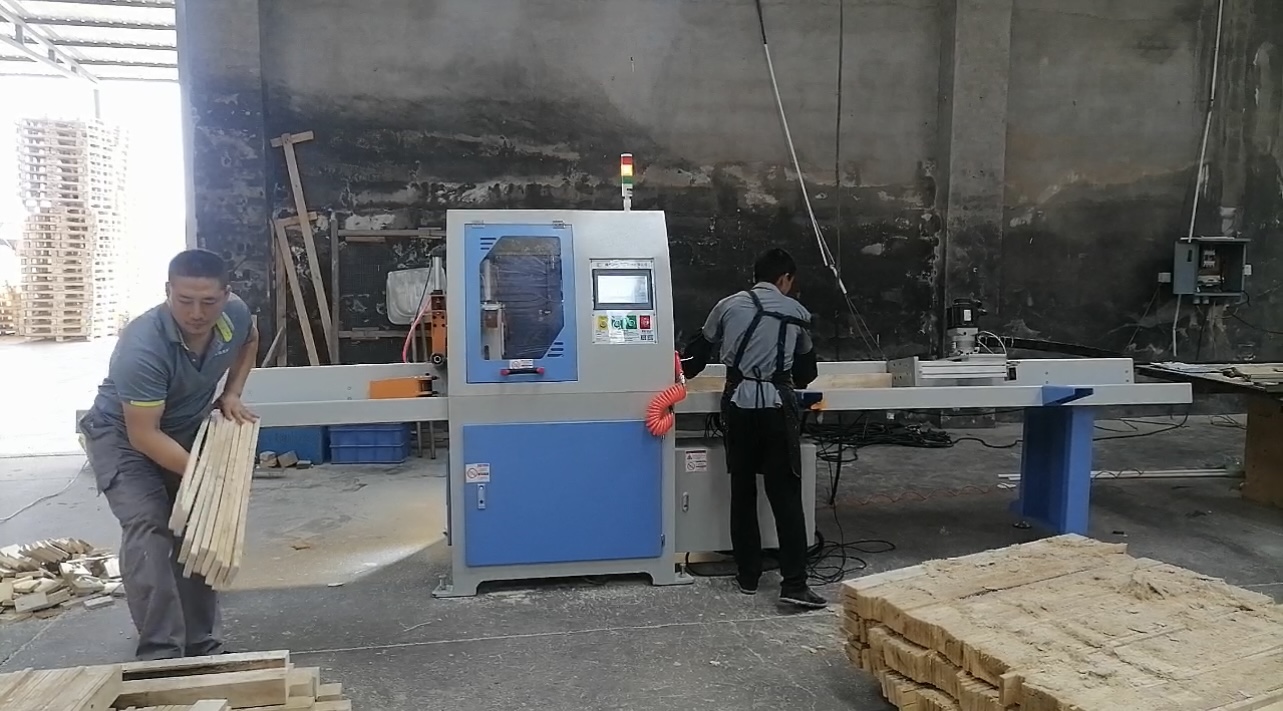

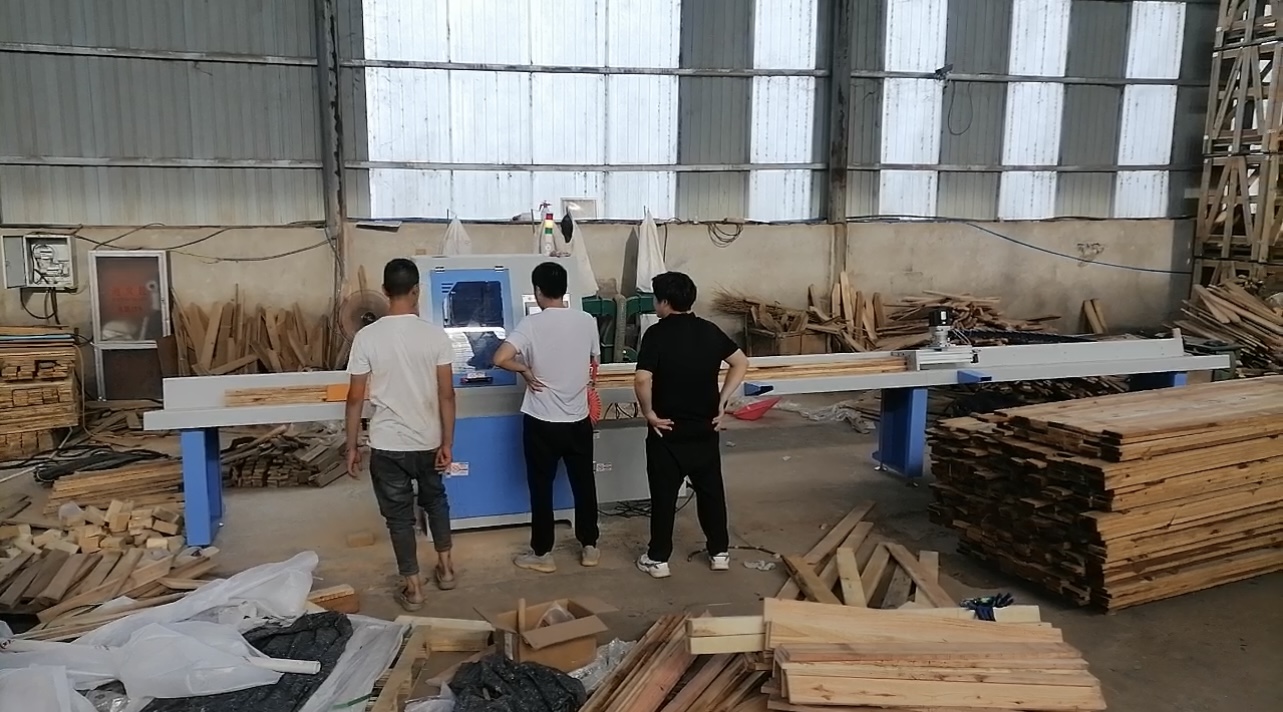

Successful Projects

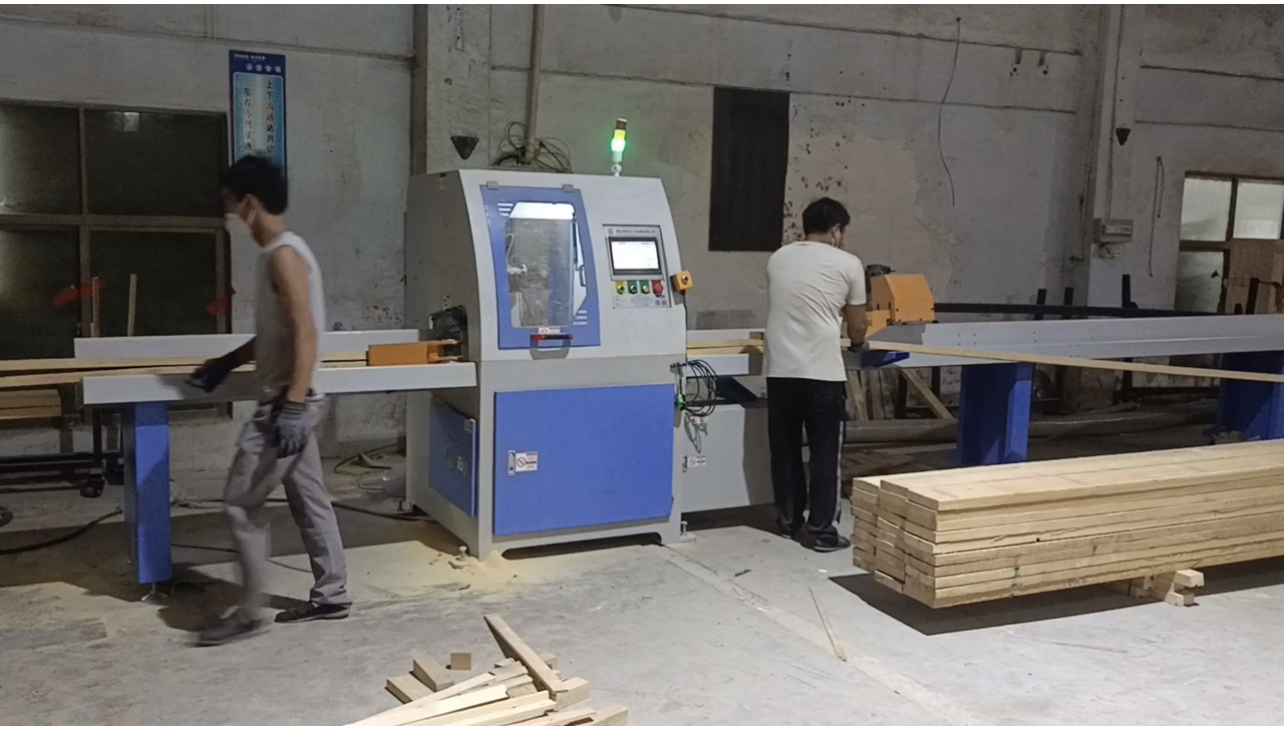

Sawing bed board material
Application Examples
Similar Products

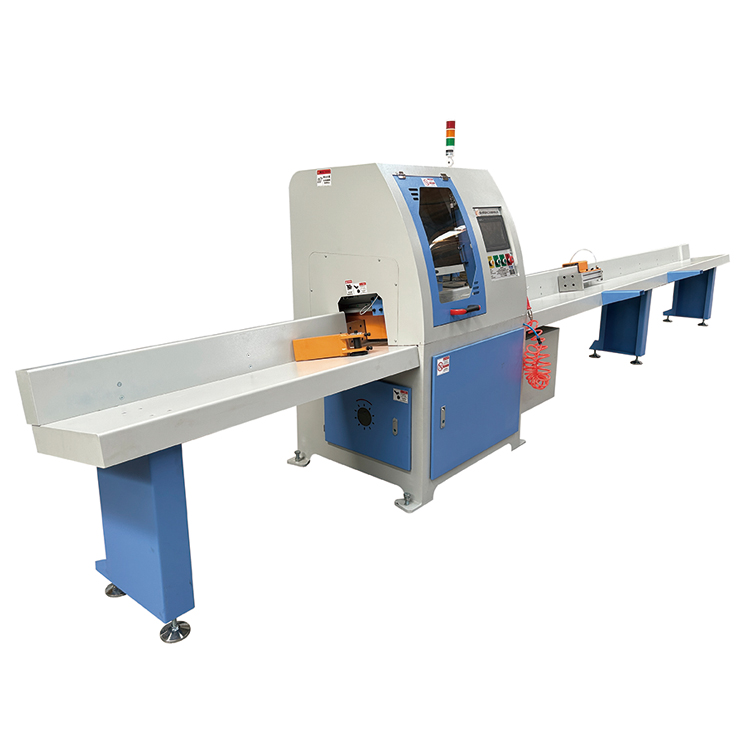

BC-450
Synchronous belt transmission, suitable for processing with standard precision requirements, economical and affordable.

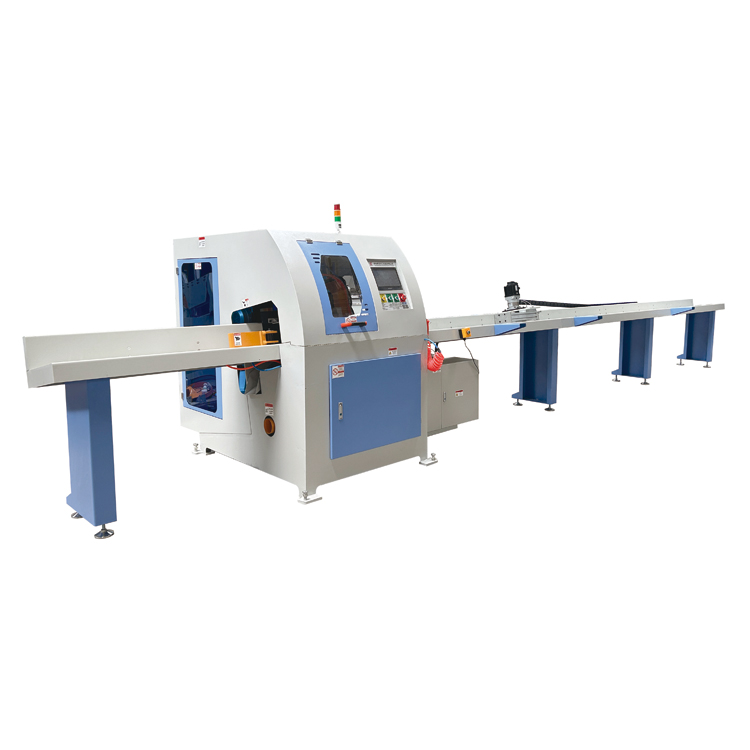

BCX-4000

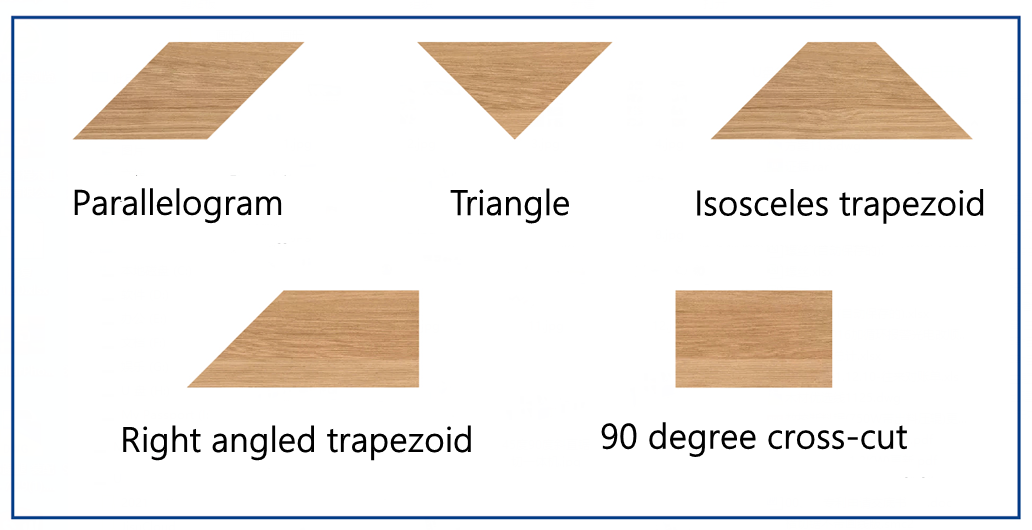

Can cut horizontally and 45-degree angles, trapezoids, and parallelograms. Versatile for multi-purpose use.

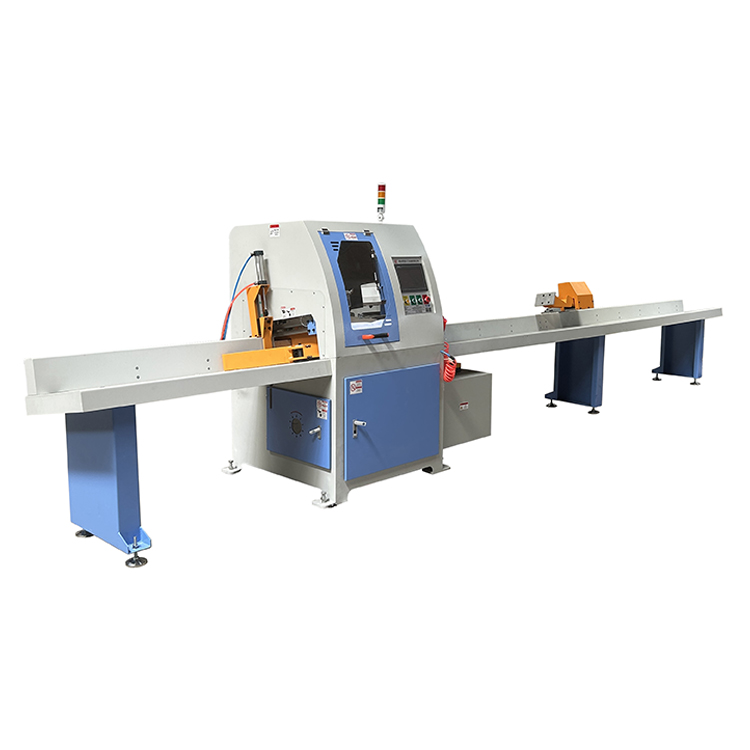

BCT-4000
Optimizing saw using fluorescence sensors to identify and cut lines, remove scars, and maximize wood savings.
Frequently Asked Questions
Is the machine easy to operate for a first-time user?
Yes, our machines are fully installed and tested before shipment. We provide guide videos and an English instruction manual. We also offer free professional guidance if questions arise.
What kind of after-sales service do you provide?
We offer 24-hour online support and a 13-month warranty period. If any issues occur during the warranty time, we provide free after-sales assistance.
How can we obtain replacement parts?
Most spare parts are kept in stock and can be sent directly from our warehouse. Additionally, our parts are internationally accepted and can be sourced from local markets.
Do you offer customization services?
Certainly. Our machines can be customized according to specific buyer requirements. Our engineers will work with you to solve your technical needs.
What other wood processing machinery do you provide?
We offer CNC cutting saws, optimizing cross-cutting saws, dual-purpose saws, timber sorting machines, and various automated assembly lines for wood factories.
How is the shipment handled?
We have extensive experience in packing and shipping. We can handle the logistics for you, allowing you to receive the machines at your local port or designated location.
