Product Description

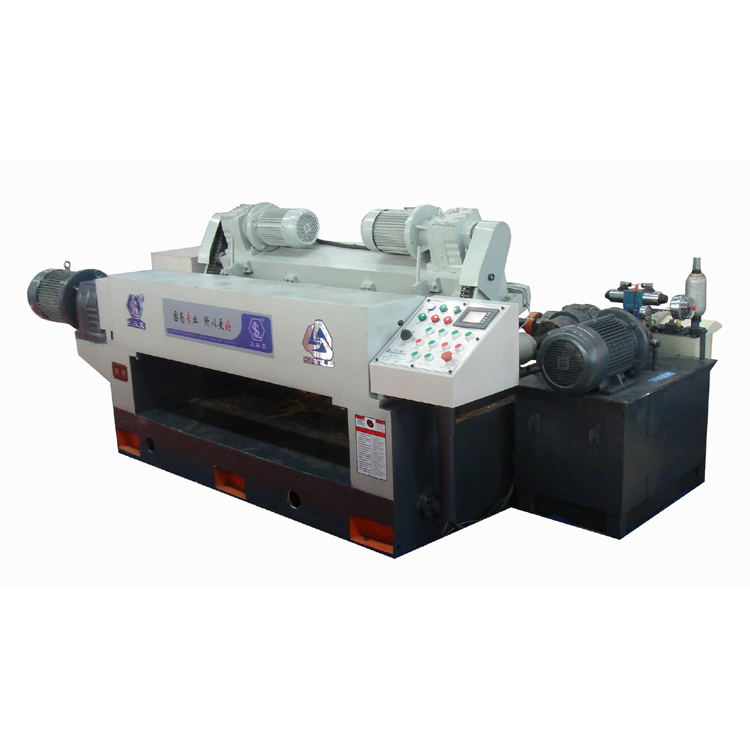

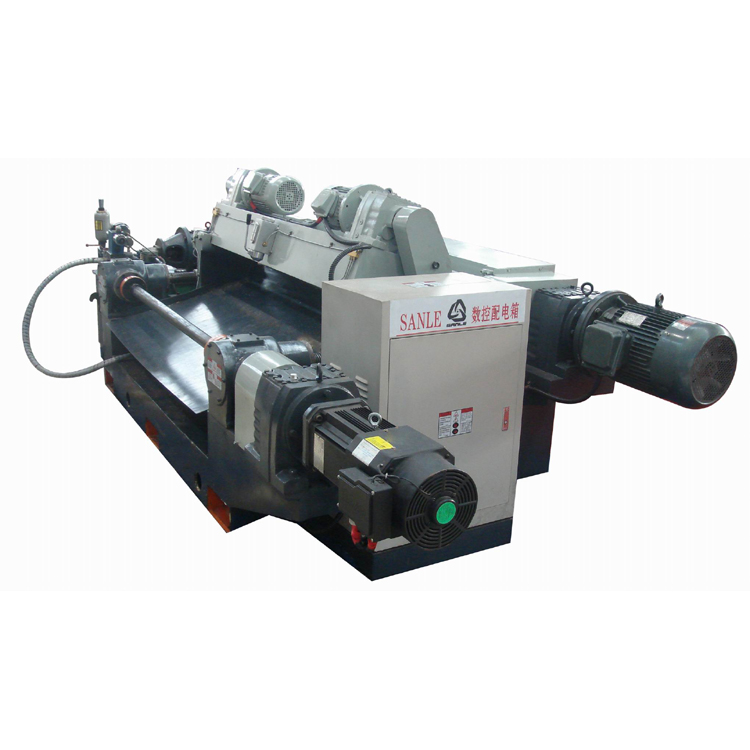

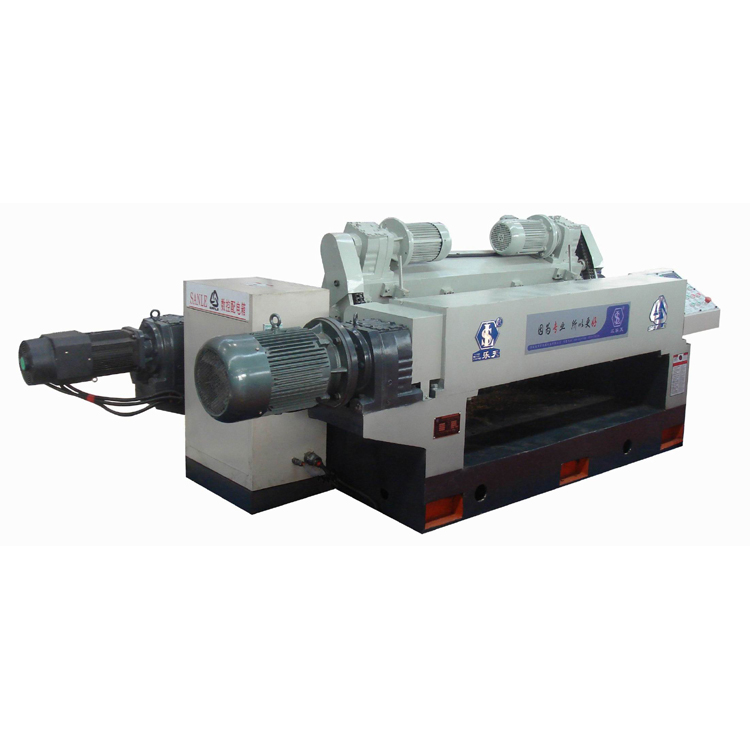

⚙️ Product Description: Veneer Rotary Lathe

✓ The edge is strickled manually, increasing flatness.

✓ Modular assembly and cast part edge, fitting for 5mm wood board.

✓ Special processed roller for increased wearability and corrosion resistance.

✓ Equipped with advanced text display and PLC programmer.

✓ Integrated stabilizer to ensure stable edge feeding.

✓ Professional arc board for superior veneer planeness.

The updated gold series cast part CNC wedge-free rotation shaver is the result of dedicated technical innovation. Featuring modular assembly and cast part edges, it significantly improves assembly accuracy, structural strength, and stability, making it an ideal choice for both new and experienced users.

Type	Processing Dia (mm)	Processing Length (mm)	Final Dia (mm)	Speed (m/min)	Depth (mm)
SLW1500HJ	260 / 300	1400	28	34	0.4--3.6

Weight (kg)	Roller Dia (mm)	Power (kw)	Outer Measure (mm)	Knife Fixation
4000	99	29	3900×2000×1270	Obverse fixation
Material: The straight log or remained log core from wedge shaver

📦 Packaging & Shipping

Packaging Details

Standard export packing or customized according to your specific requirements.

Lead Time

Typically shipped within 25 days after payment verification.

🛠️ Our Services

Pre-sale

Free equipment consultation
Standard device and flow chart provision
Customized design plans and equipment selection
Factory visit coordination

During Sales

Strict factory inspection before shipping
Overseas installation and debugging
First-line operator training

After-sale

24-hour online technical support
Detailed installation and debug videos
Ongoing technical exchange and assistance

🖼️ Product Showcase

❓ Frequently Asked Questions

Can the machine molds be customized?

Yes, all kinds of molds can be manufactured according to specific customer requirements.

What are the standard payment terms?

The standard payment terms are a 30% down payment by T/T, with the remaining 70% due upon machinery completion.

What is the warranty period for the machinery?

All machines come with a one-year warranty period. We provide full support for any technical issues during this time.

How is the equipment packaged for delivery?

We use standard professional export packing to ensure the equipment remains safe and intact during transit.

When will the delivery take place?

Delivery is arranged immediately after the completion of all payments and final inspections.

Are the technical parameters fixed?

The parameters provided are for reference. As our technology is constantly being updated and improved, specific data may be subject to minor changes.
