Blue Elephant CNC 1325 1212 4 Axis 3 Axis 3D Carving Wood Handrails Making Machine With Rotary Axis
Blue Elephant CNC 1325 1212 4 Axis 3 Axis 3D Carving Wood Handrails Making Machine With Rotary Axis
Blue Elephant CNC 1325 1212 4 Axis 3 Axis 3D Carving Wood Handrails Making Machine With Rotary Axis
Blue Elephant CNC 1325 1212 4 Axis 3 Axis 3D Carving Wood Handrails Making Machine With Rotary Axis
Blue Elephant CNC 1325 1212 4 Axis 3 Axis 3D Carving Wood Handrails Making Machine With Rotary Axis
1 / 5
Blue Elephant CNC 1325 1212 4 Axis 3 Axis 3D Carving Wood Handrails Making Machine With Rotary Axis
Blue Elephant CNC 1325 1212 4 Axis 3 Axis 3D Carving Wood Handrails Making Machine With Rotary Axis
Blue Elephant CNC 1325 1212 4 Axis 3 Axis 3D Carving Wood Handrails Making Machine With Rotary Axis
Blue Elephant CNC 1325 1212 4 Axis 3 Axis 3D Carving Wood Handrails Making Machine With Rotary Axis
Blue Elephant CNC 1325 1212 4 Axis 3 Axis 3D Carving Wood Handrails Making Machine With Rotary Axis

Blue Elephant CNC 1325 1212 4 Axis 3 Axis 3D Carving Wood Handrails Making Machine With Rotary Axis

Send Inquiry

Product Description

CNC Machine Banner
CNC Product Range
Products Description

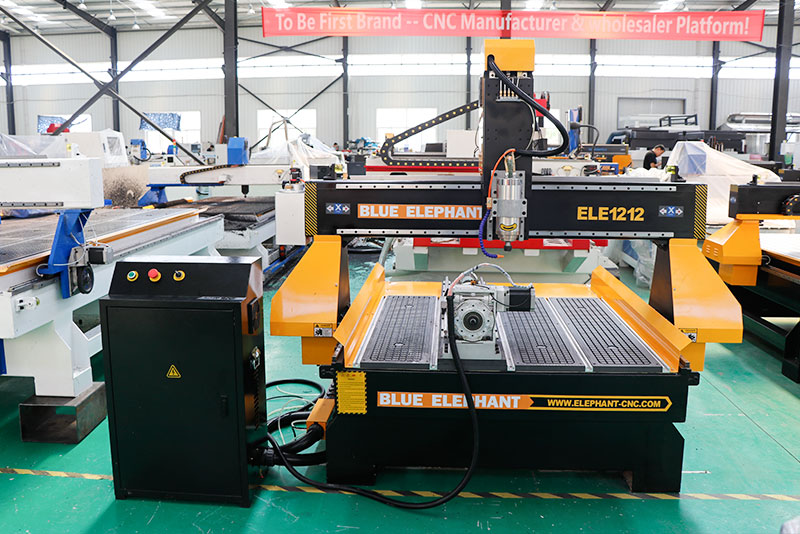

CNC Machine Overview

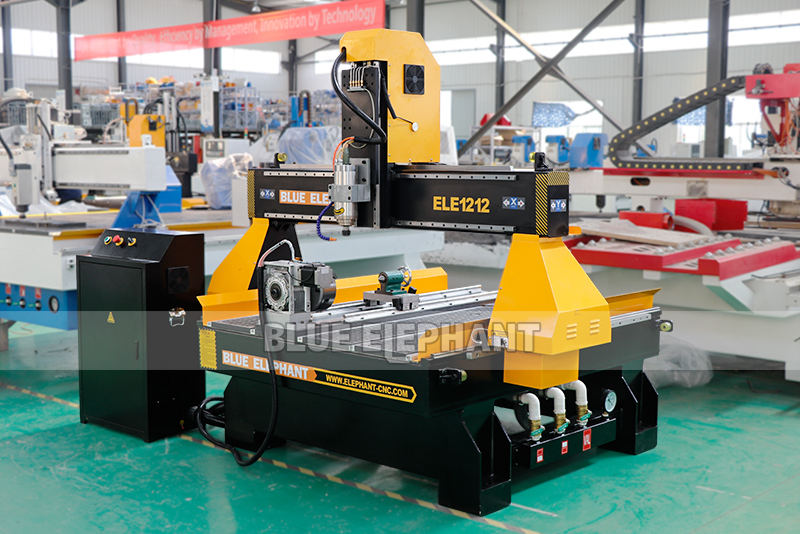

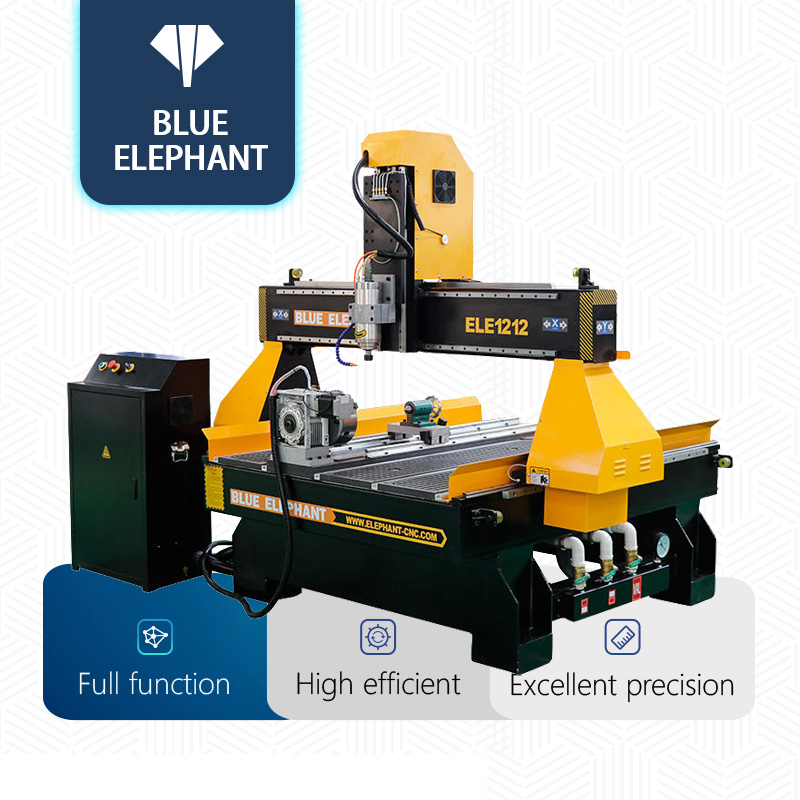

CNC 1325 1212 4 Axis 3 Axis 3D Carving wood handrails Making machine With Rotary Axis

This rotary axis CNC machine is also one of 4 axis CNC router. And the rotary device, as the fourth axis of the CNC router, it can replace the X axis or Y axis for cylindrical items processing, such as chair frames, stair frames, roman columns, columns, etc.

Features:
  • The machine was designed with rotary device, which is mainly to process cylindrical workpieces, such as chair frames, stair frames, columns, posts, etc.
  • The diameter and length of rotary device can be customized and the rotary device can be removed and designed to the position you want.
  • Equipped with a 3kw Changsheng water cooling spindle, and it’s speed can reach 24000rpm for per minute.
  • The working size and the high of Z axis can be customized according to your requirements.
Product Paramenters
ModelELECNC1212-R
X,Y axis travel1200x1200mm, option: 1300*2500mm; 1500*3000mm; 2000*4000mm, etc.
Z axis travel400mm, option: 500mm, 600mm, etc.
Spindle type3kw water cooling spindle, ER20
Tool magazineNo tool magazine Option: Linear or carousel type auto tool changer
Control systemMach 3 4 axis, option: DSP B18
Motor and driverSiemens 1000w servo motor and 1000w servo driver
Working TableAluminum T-slot & vacuum work table
StructureHeavy duty thicker structure
limit switchJapan OMRON limit switch
Working TableT-slot working table
Limit switchJapan Omron limit switch
Lubrication systemAutomatic oil lubrication system
Working voltage220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ
Product Detalis

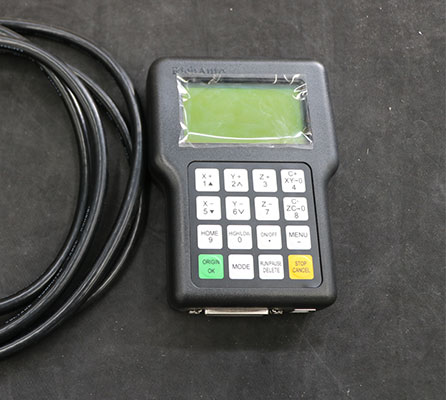

DSP controller
DSP controller
The machine is controlled by the DSP controller, which ensures that the machine can be operated without a computer. Support three-axis and four-axis function and multi-spindle.

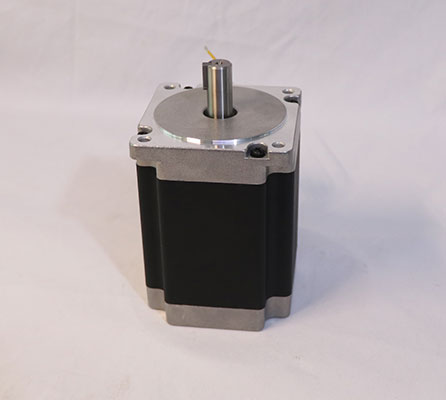

FL118 Stepper Motor
FL118 Stepper Motor
This machine adopts a FL118 stepper motor. Compared with ordinary motors, this type of motor has the features of simple structure, convenient control, high relability, high accuracy, and low cost.

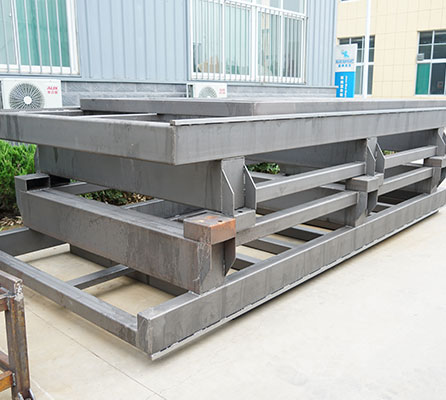

Heavy duty structure
Heavy duty structure
The CNC machines featuring one-pieces steel frames. They are much more stable than other CNC machines you can find elsewhere at similar prices.

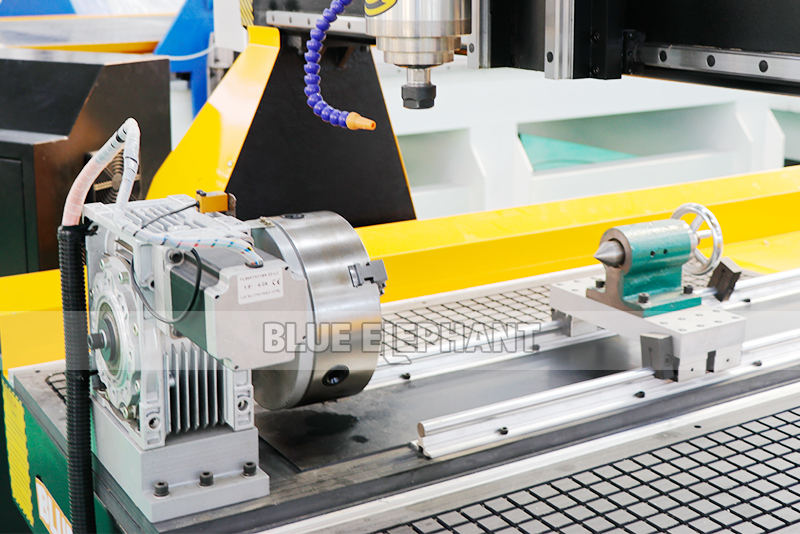

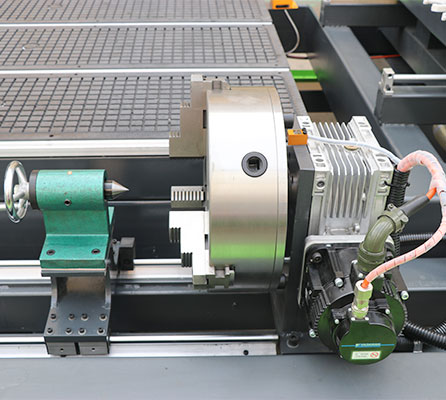

Rotary axis
Rotary axis

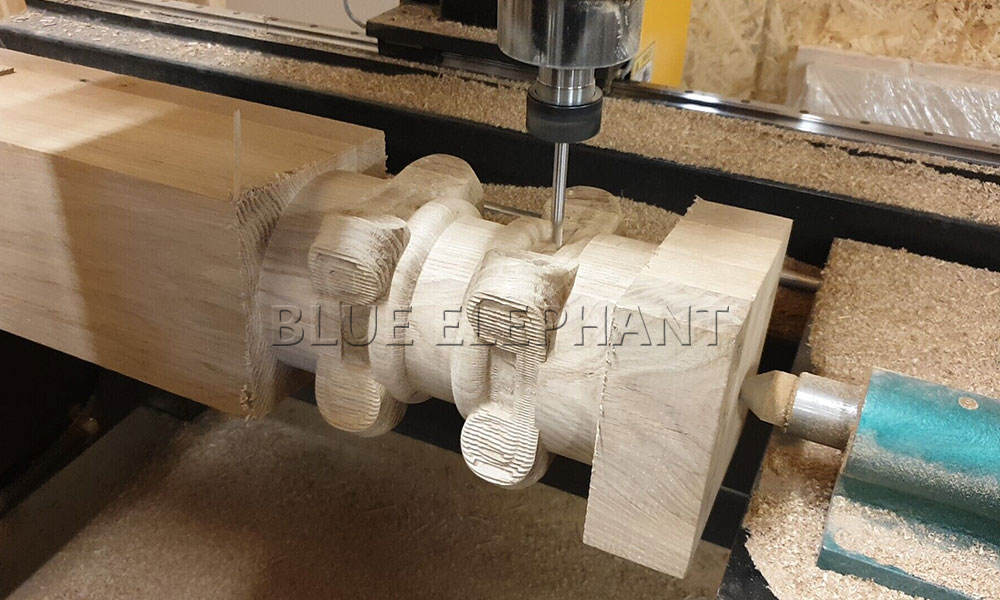

Rotary axis does not occupy the working area of the machine. It is easy to be disassembled and cleaned. It is widely used for processing cylinder materials, such as chair legs, stairs and so on.

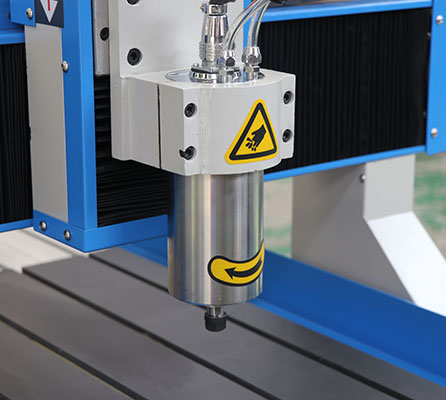

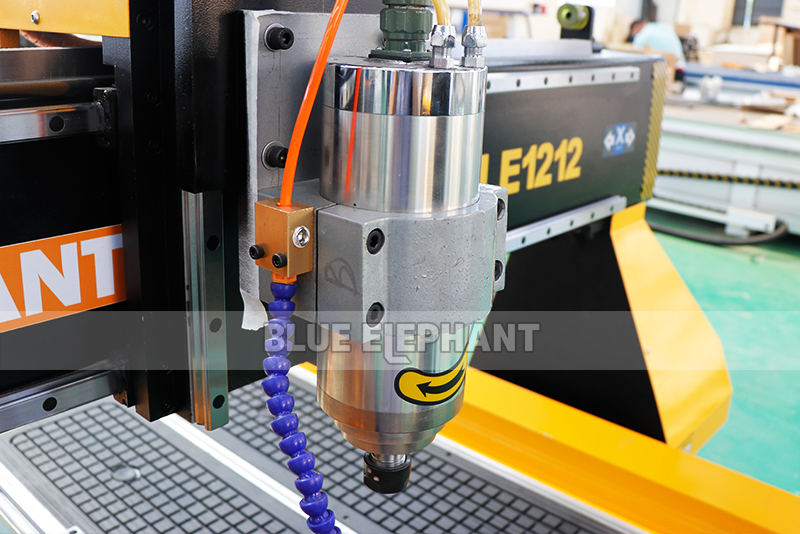

Water cooling spindle
Water cooling spindle
Imported bearings with good quality, long working life. Application: Milling, Engraving, Drilling. High speed, low noise. Higher precision.

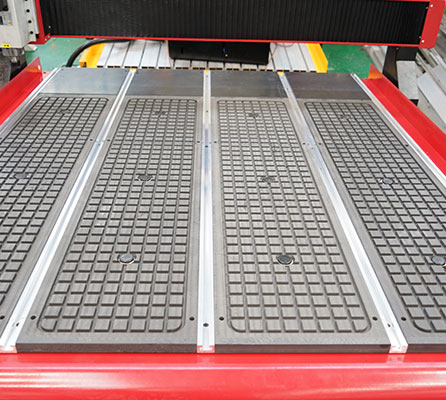

T-slot vacuum working table
T-slot vacuum working table
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Recommend Products
Sample & Application
Sample Application 1 Sample Application 2 Sample Application 3
Customer Feedback
Customer Feedback Gallery Customer Video Review Showcase
Company Information
Factory Overview 1 Factory Overview 2 Production Line 1 Production Line 2
Exhibition
Exhibition Show 1 Exhibition Show 2
FAQ
I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience. As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service. We know how to fix the problem of every part easily, so welcome to visit to our factory.
How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment.
How long is the delivery time?
A: For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, it will be 15 to 30 days.
