4 Axis Bridge Saw For Miter 45 Dekton Granite Stone Machinery Up To 50mm
4 Axis Bridge Saw For Miter 45 Dekton Granite Stone Machinery Up To 50mm
4 Axis Bridge Saw For Miter 45 Dekton Granite Stone Machinery Up To 50mm
4 Axis Bridge Saw For Miter 45 Dekton Granite Stone Machinery Up To 50mm
4 Axis Bridge Saw For Miter 45 Dekton Granite Stone Machinery Up To 50mm
1 / 5
4 Axis Bridge Saw For Miter 45 Dekton Granite Stone Machinery Up To 50mm
4 Axis Bridge Saw For Miter 45 Dekton Granite Stone Machinery Up To 50mm
4 Axis Bridge Saw For Miter 45 Dekton Granite Stone Machinery Up To 50mm
4 Axis Bridge Saw For Miter 45 Dekton Granite Stone Machinery Up To 50mm
4 Axis Bridge Saw For Miter 45 Dekton Granite Stone Machinery Up To 50mm

4 Axis Bridge Saw For Miter 45 Dekton Granite Stone Machinery Up To 50mm

Send Inquiry

Product Description

Product Description
4 Axis Bridge Saw for Miter 45 Dekton Granite Stone Machinery up to 50mm

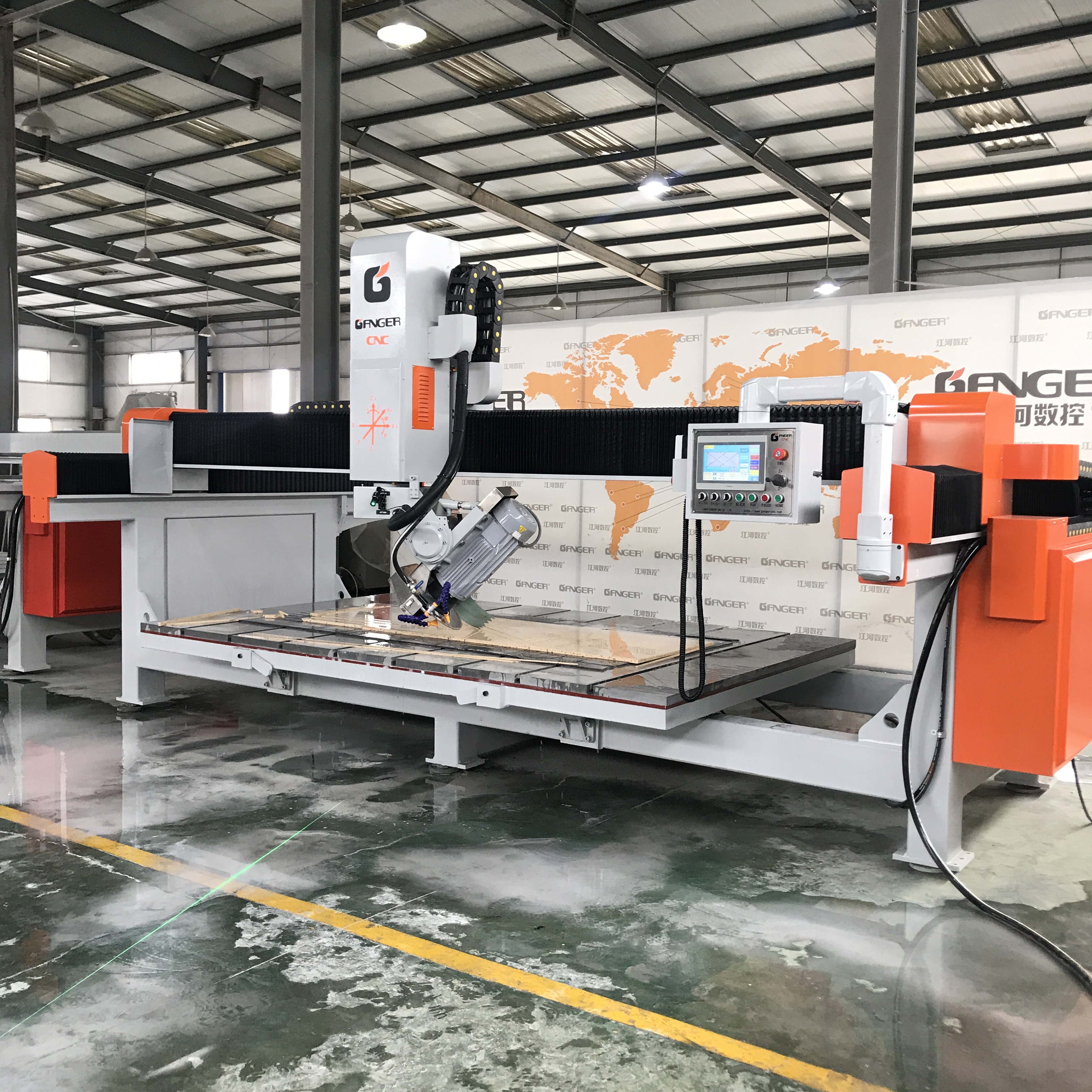

4 Axis CNC Bridge Cutting Machine GQ-3220B Bridge saw cutting
1. Product Highlights
Advantage 1:16 years experience in stone machinery industry.
Advantage 2:Perfect and timely after-sales service.
Advantage 3:Humanized PLC control.
Advantage 4:Servo motor with smooth cutting, no chipping.
Advantage 5:Laser ray calibration.
Advantage 6:C axis rotates 0-135 degree.
Advantage 7:Adding function Miter (chamfer) 45 degree.
Advantage 8:Miter 45 degree/horizontal/vertical/diagonal cut.
Advantage 9:Table 85 degree tilting easy loading and unloading slabs.
Advantage 10:Simple installation, delivery by mono-bloc (98%).
Advantage 11:No foundation, it is simply secured to the floor.
2. Applicable materials
Sintered stone / Quartz stone / Marble / Artificial marble / Granite / Porcelain tile

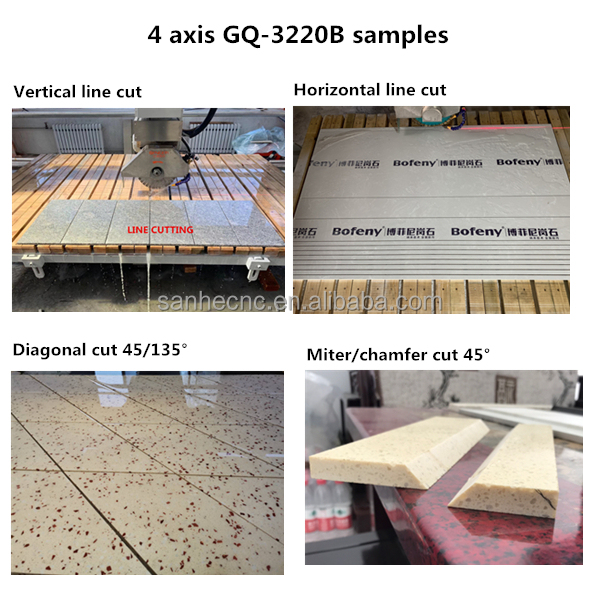

3. Saw cutting function display with laser calibration

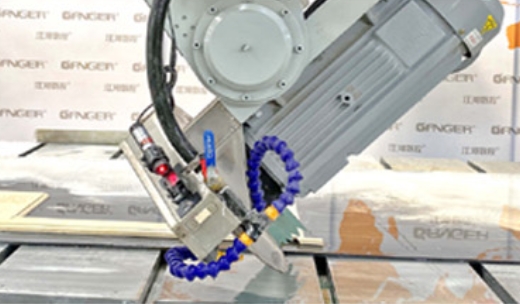

1) Chamfer / miter 45 degree (X left side + Y front side)
4 Axis Bridge Saw for Miter 45 Dekton Granite Stone Machinery up to 50mm 4 Axis Bridge Saw for Miter 45 Dekton Granite Stone Machinery up to 50mm

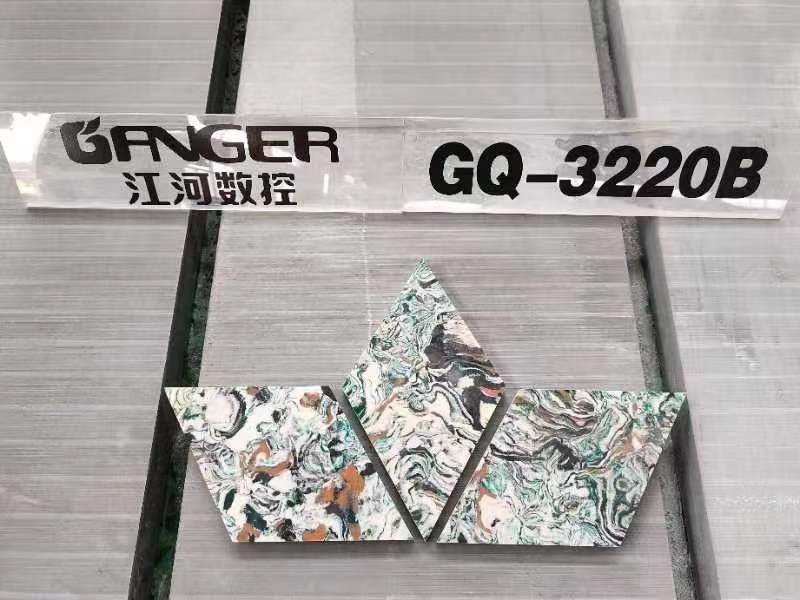

2) Diagonal cut 45 degree / 135 degree
4 Axis Bridge Saw for Miter 45 Dekton Granite Stone Machinery up to 50mm

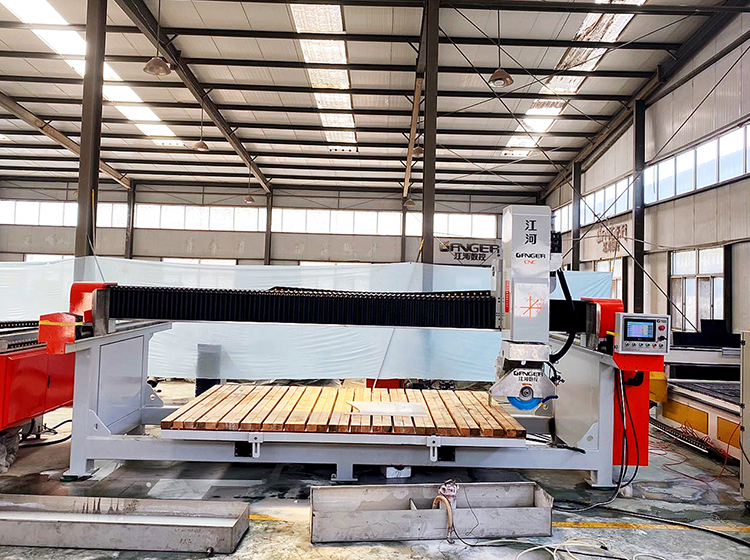

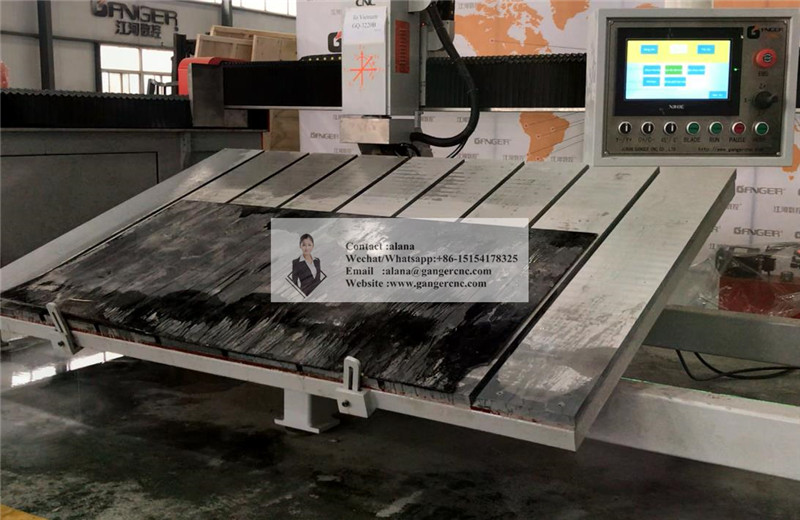

3) Table 85 degree tilt, easy loading/unloading slabs
4 Axis Bridge Saw for Miter 45 Dekton Granite Stone Machinery up to 50mm

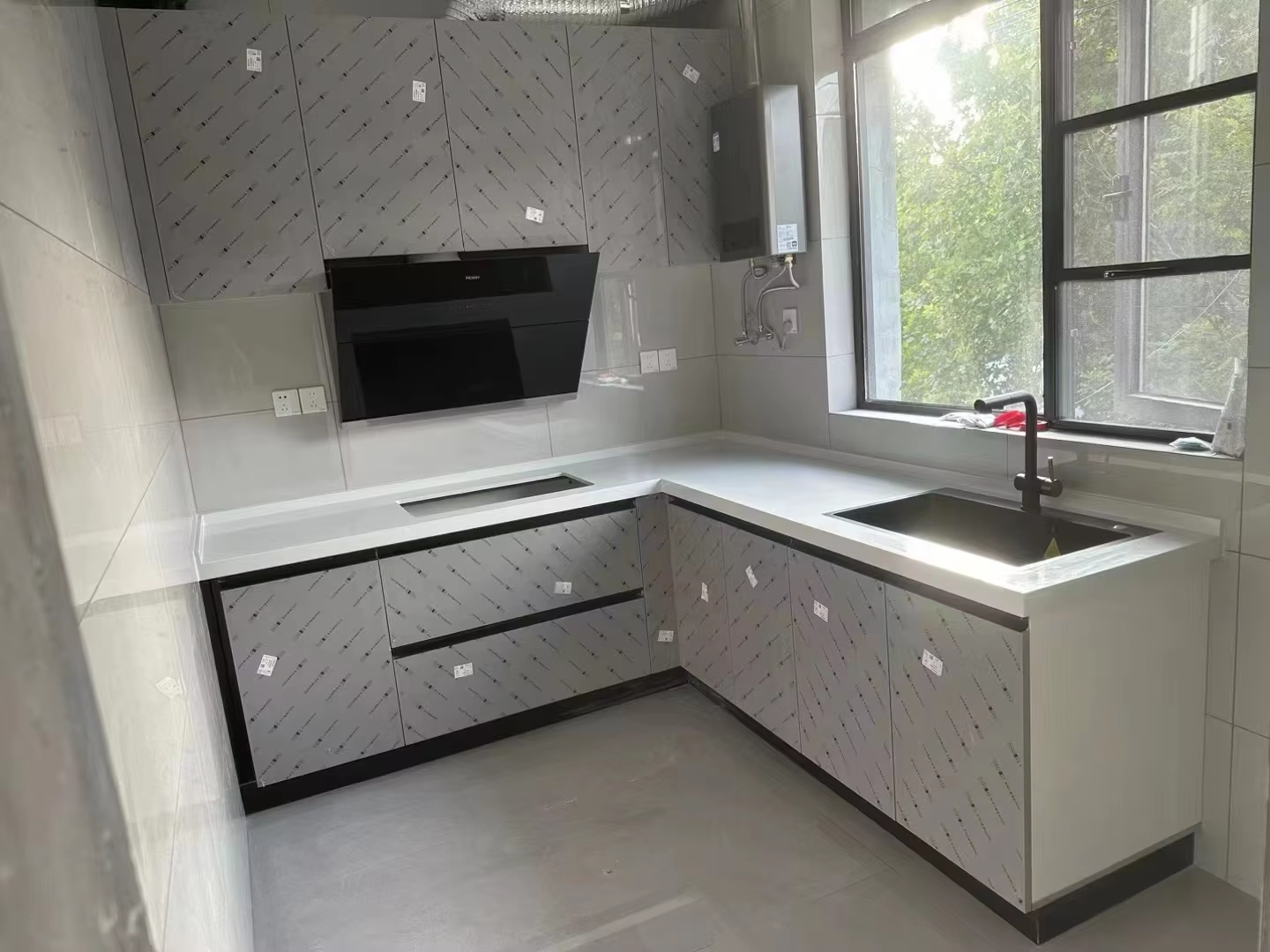

4. Applications
4 Axis Bridge Saw for Miter 45 Dekton Granite Stone Machinery up to 50mm
Machine features
  • XYZC four axis, C axis rotation angle 0° and 135° , cutting in the direction of X and Y axis.

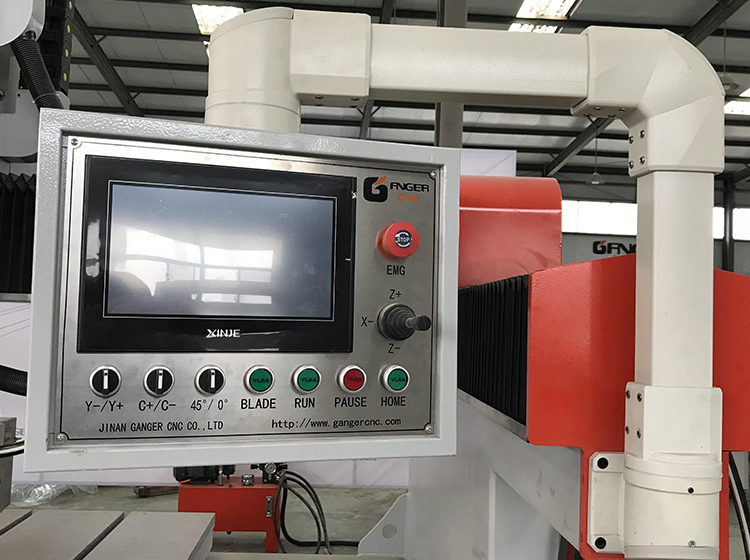

  • PLC control system, input operating parameters on the control panel, and the cutting process is automated and programmed.
  • By infrared ray to confirm the position of the workpiece.
  • Whole steel structure machine body ensuring high stability.
  • Running stability, high precision, high speed.
  • Compact and rational design, small size machine, convenient to handle and move.
Technical parameters
Model GQ-3220B
Z Axis working size 3200*2000*200mm
Diameter of blade 350mm
Working table size 3200x2000mm
Max spindle speed 3000/6000rpm (Optional, adjustable)
C axis rotation angle 0°, 135°
Control system GANGER CNC
Gross weight 4000KGS

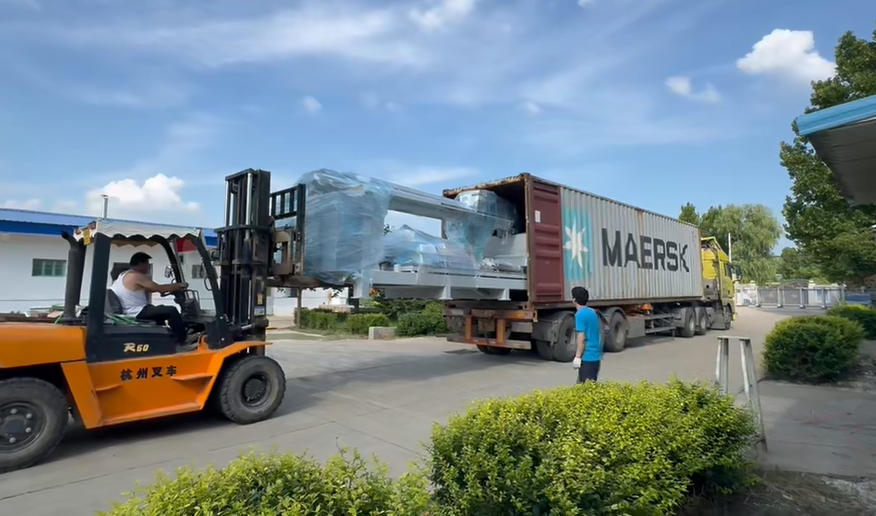

Packaging & Shipping
4 Axis Bridge Saw for Miter 45 Dekton Granite Stone Machinery up to 50mm 4 Axis Bridge Saw for Miter 45 Dekton Granite Stone Machinery up to 50mm
Company Information
4 Axis Bridge Saw for Miter 45 Dekton Granite Stone Machinery up to 50mm

Main exhibition: China Canton Fair
Exhibiting as scheduled every year

Main markets: Europe / North America / South America / Asia / Africa

4 Axis Bridge Saw for Miter 45 Dekton Granite Stone Machinery up to 50mm
Other Models

Please find more models function list.

4 axis GQ-3220A 4 axis GQ-3220B 5 axis GQ-3220D
Horizontal cut Horizontal cut Horizontal cut
Vertical cut Vertical cut Vertical cut
rhombus 45° cut
Angle: 0, 45, 90, 135		 rhombus 45° cut
Angle: 0, 45, 90, 135		 rhombus 45° cut
Angle: 0-360
Table tilting 85° Table tilting 85° Table tilting 85°
chamfer/miter 45°
2 sides automatically		 chamfer/miter All angle
4 sides automatically
Round shape cut
sector cut
L-shape table cut
sink-out cut
hexagon cut
curve cut
oval cut
Horse belly line cut
CAD program acceptable
Nc code acceptable
profile modelling cut
mill tool cut
suction device
polishing
PLC PLC CNC
Saw blade 350mm Saw blade 350mm Saw blade 350mm
max cut: 50mm thickness max cut: 50mm thickness max cut: 50mm thickness
FAQ
Are you a manufacturer or a trading company?
We are manufacturer.
Can we customize logo?
Yes.
Can you produce machine features which I cannot find on your website?
Yes, we are very pleased to customize high quality stone machine for you.
Is the price negotiable?
Yes, the price is negotiable. But the prices we give is based on the cost and it is quite reasonable. And the prices also have great relationship with the order quantity and material.
How do we control the quality?
Once order confirmed, we will prepare machine drawing and double confirm all details with you. Doing 100% inspection during production and packing and loading into container. Also will share packing and loading record with you.
What is the payment method and delivery time?
Payment: 30% deposit + 70% balance before delivery. Delivery time: 25-30 working days (7 working days available only with 100% advance payment. Customized models delivery time need final confirmation from production management).
